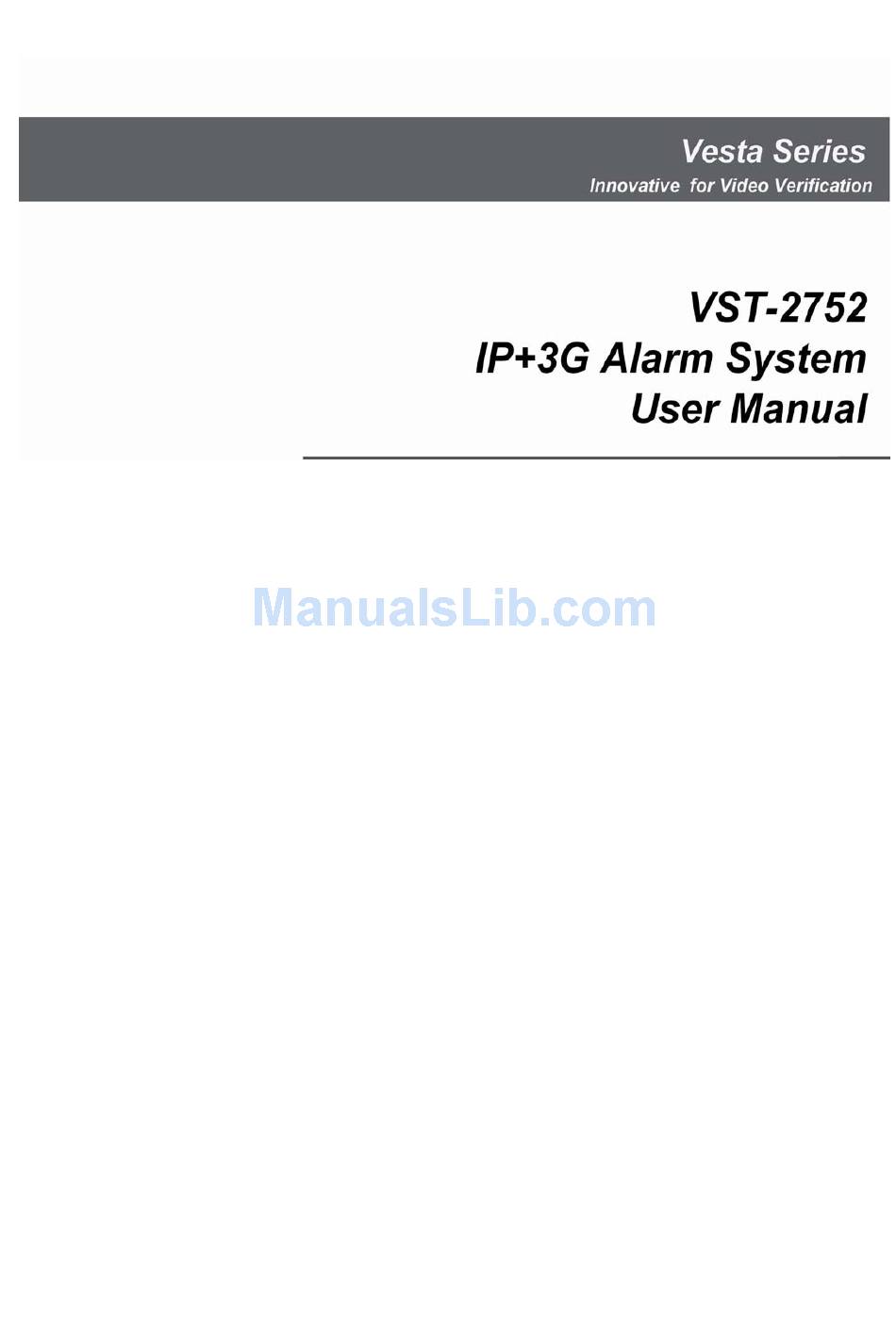

Climax VST-2752 User Manual

Vesta series ip+3g alarm system
Hide thumbs Also See for VST-2752:
Table of Contents

Advertisement

Quick Links

fCx
Jan-06-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VST-2752 and is the answer not in the manual?

Questions and answers

Related Manuals for Climax VST-2752

Summary of Contents for Climax VST-2752

  • Page 1 Jan-06-2014...

  • Page 2: Table Of Contents

    Table of Contents 1. Application Overview __________________________________________________ 1 1.1. Identifying the Parts ______________________________________________________ 1 1.2. Introduction _____________________________________________________________ 2 1.3. The Power Supply ________________________________________________________ 2 1.4. How to Install the Control Panel ____________________________________________ 2 1.5. Three – Level Passwords __________________________________________________ 2 1.6.
  • Page 3 4. Operation __________________________________________________________ 20 4.1. LCD Display ____________________________________________________________ 20 4.2. Entering User Menu _____________________________________________________ 20 4.3. Away Arm Mode ________________________________________________________ 20 4.4. Home Arm 1/2/3 Mode ___________________________________________________ 21 4.5. Force Arm _____________________________________________________________ 21 4.6. Disarm ________________________________________________________________ 22 4.7. Bypass ________________________________________________________________ 22 4.8.

  • Page 4: Application Overview

    — Use this key to Away Arm the system. 1. Application Overview 10. Home Arm Key 1.1. Identifying the Parts — Use this key to Home Arm the system. 11. Disarm Key — Use this key to Disarm the system. Buzzer Microphone Backlit LCD Display...

  • Page 5: Introduction

    1.2. Introduction failure condition.  VST-2752 Control Panel features both IP and During normal operation, the AC 3G mobile network reporting functions: power adapter is used to supply power to the Control Panel and at the The advanced IP Security System with fully same time recharge the battery.

  • Page 6: System Basic Operation

    Code, but will be removed after one User PIN Code arming and disarming action.  The User Codes are used for users to access the alarm system for basic alarm system function. A total of 10 4-digit User Duress Code Codes can be stored in the Control Panel.

  • Page 7: Getting Started

    1.7. Getting Started Step 1. Find a suitable location for the Control Panel to be installed. Step 2. Insert the SIM card in to GSM module and connect the internet cable. Step 3. Apply the AC Power. You will hear 2 short beep.

  • Page 8: System Configuration

    2. System Configuration Step 2. Press the learn/test button on your In order to configure the Control Panel setting, device to transmit a test code (please you need to enter the Installer Menu. To enter refer to device manual for detail). If the the Installer Menu: Control Panel receives the test code, it will display the device information...

  • Page 9: Test Report

     IP(CID): IP/GPRS reporting in CID 2.4. Test Report format.  This function is for you to test the reporting Mail: Email reporting. (SMTP setting destination you entered. required)  Step 1. Select Test Report and press OK to Voice: Voice message reporting. confirm.
  • Page 10  GPRS Setting In order to use GPRS to serve as a back-up IP Step 5. Enter your log in user name and press Reporting method, this section will need to be OK to confirm. Inquire your service programmed before reporting. provider for information if needed.

  • Page 11: Panel Setting

     Step 3. The GSM module will be reset. AC Fail Report This is for you to set the waiting time for the Control Panel to make report after detecting 2.7. Panel Setting AC failure. Factory default is set to 5 minutes. Step 1.
  • Page 12 ° C Auto check-in report is made whenever the Control Panel was powered off, then on again, Step 2. The screen will display current High or when Auto check-in interval time is changed.. Temperature alarm setting. To change Factory Default is set to 1 hour. the setting, select a new option and Step 1.

  • Page 13: General Setting

    press OK. delay timer expires. (Factory Default) U T C Step 1. Select Final Door and press OK to L o s A n g e l e s confirm. D e n v e r O f f C h i c a g o N e w Y o r k Step 2.
  • Page 14 confirm. To change the setting, select a new option and press OK to confirm. A w a y A r m H o m e A r m  Supervision H o m e A r m Set the supervision timer for accessory devices, H o m e A r m if no supervision signal is received within set...

  • Page 15: Device

     confirm. Exit Arm: If not turned off, the Control Panel will sound beeping sounds Step 2. Devices that have already been learnt when during Exit Delay Timer for in will be displayed along with their Away Arm mode. zone number (Z01, Z02…etc). ...
  • Page 16 select an attribute, Factory Default is mode, if a “Home Access” set to Entry for Door Contact and PIR device is triggered, the Control Sensor Panel will start an Entry Delay period to give enough time to  Burglar disarm the system. It will also ...
  • Page 17 expired and no correct PIN code “ding-dong” Door Chime sound has been entered, the Control (if Door Chime function is not Panel will activate its built-in disabled). siren immediately to remind the  When the system is in any user delay period Home Arm mode, if an “Away...

  • Page 18: Network Setting

    Panel must first learn in a device of siren. An event code of 122 will any kind. be reported. Step 1. Put the siren into learning mode,  Personal Attack please refer to the Siren manual for detail.  If the device attribute is set as Personal Attack, when the Step 2.
  • Page 19 I n t e r v a l h o u r S M T P h o u r F r o m h o u r   Current IP SMTP The Control Panel’s current local area network The SMTP setting is for you to program the IP will be displayed mail server related settings.

  • Page 20: Media Upload

     From setting must be entered in all picture or video for you to identify the file. lowercase letters Step 1. Select Prefix, press OK to confirm. Step 2. Select to either edit or delete the setting, press OK to confirm.. 2.11.

  • Page 21: Programming Menu

    easy recognition User PIN Code #1 is set to 3. Programming Menu 1234 by Factory Default. The programming menu is designed for user to Step 1. Select Pin Code, press OK to confirm. mange User PIN codes and other setting. to Step 2.

  • Page 22: Temporary Code

    R e p e a t n e w c o d e 3.6. General Setting ..General Setting function under Step 3. Repeat the new code and press OK to Programming Menu functions the same as the confirm.

  • Page 23: Operation

    Step 1. The screen will display: 4. Operation S T A R T  4.1. LCD Display Step 2. Press Down key to scroll through the The Control Panel’s LCD will display the fault events. When all fault events are system information according to different status displayed, the screen will show: and panel modes.

  • Page 24: Home Arm 1/2/3 Mode

    Arm key on the Control Panel. under Home Arm 1/3 mode.   Entering Home Arm mode When under Disarm mode, enter a User PIN code and press the Away Step 1: Arm key on the Remote Keypad.  (Please refer to Remote Keypad Select Home Arm 1~3 under User Menu and press OK.

  • Page 25: Disarm

    correcting the fault situation, follow the steps + D C Z 0 1 below to Forced Arm the Control Panel. Z 0 2 Step 1: When fault events are displayed, The bypassed condition of a sensor will be repeat the same arming action again remove automatically after the panel is armed, then disarmed.

  • Page 26: Keypad Lockdown

     Stopping the Alarm 4.10. Keypad Lockdown Step 1: To Stop the alarm, disarm the Control The Control Panel features Keypad Lockdown Panel, please refer to 4.6. Disarm for function to prevent continuous User PIN Code detail. retries: If the wrong User PIN Codes are entered for 5 times within 10 minutes, the Step 2: The alarm will be stopped, the device keypad will be locked down for 15 minutes.

  • Page 27: Fault Display

     alarm if the name is selected from the Sensor Low Battery default zone name list when editing the  Device and Control Panel device. For alarm triggered by the control Tamper panel, the panel will play message “Control  Panel”.

  • Page 28: Alarm Activation

    4.16. Alarm Activation  For Alarm Activation by Events and Control Panel Responses, please refer to the following table: Control Panel Mode & Response Table Arm Mode Away / Away Arm Home Arm Alarm Attribute Disarmed Home Arm Home Arm Home Arm Home Arm Entry Timer...
  • Page 29 Instant Fire Instant Fire Instant Fire Instant Fire Instant Fire Instant Fire Instant Fire Instant Fire Fire Alarm Alarm Alarm Alarm Alarm Alarm Alarm Alarm Instant Instant Instant Instant Instant Instant Instant Instant Medical/Emergency Medical Medical Medical Medical Medical Medical Medical Medical Alarm...

  • Page 30: Sms Remote Command

    4.17. SMS Remote Command The panel can be controlled remotely by SMS Commands for arm/home/disarm action and setting configuration. Please refer to following information for details.  SMS Command Composition A SMS command is composed of the following items: Command: The action itself, the command is always followed by a colon “:” mark. Parameters: The parameter determine the detail execution of the command.
  • Page 31  SMS Command Table Command Comment Example & Descriptions Test panel ECHO Send SMS Example => ECHO: Send SMS Example => USRS:1,1,1234,user,1 Parameter 1: Enter 1 Parameter 2: User ID 1~10 = User PIN Code# 95 = Guard Code Change user 96 = Master Code USRS...
  • Page 32 9 = Away Entry 10 = 24 Hours 11 = Fire 12 = Medical Emergency 13 = Water 14 = Set/Unset 15 = Silent Panic 16 = Personal Attack Parameter 8: PSS groups in bitwise hex string, BIT1 to BIT8 for Group 1~8, keep blank for non-PSS devices.
  • Page 33 11 = Tokyo 12 = Sydney 13 = Auckland Send SMS Example => REST:5 REST Reboot panel Parameter 1: Delay time in second (1~5) Send SMS Example => FTRS:0,0 Reset panel to FTRS Parameter 1: Network settings, 0=reset, 1=keep factory default Parameter 2: Device settings, 0=reset, 1=keep Send SMS Example =>...
  • Page 34 Parameter 3: MMS password Parameter 4: MMS server Parameter 5: MMS proxy Parameter 6: MMS proxy port (1~65535) RSTG Reset GSM Send SMS Example => RSTG: Send SMS Example => UPLD:1,http://192.168.0.190:8080/upload/up-post.php Change media UPLD Parameter 1: Upload destination (1~5) upload setting Parameter 2: Upload destination URL Change media Send SMS Example =>...

  • Page 35: Vesta Ez Home Application

     Panel Selection 5. Vesta EZ Home Upon starting the application, you will first enter Application Panel Selection menu Vesta Home Application smartphone application designed to assist you in sending SMS Command The intuitive and simple interface help you communicate with Control Panel by SMS message easily.
  • Page 36   Enter the panel information, including the You will return to Panel Selection menu, panel name you want to use in the the new panel you entered will be application, panel SIM card number, a User displayed, select the panel to proceed to PIN Code and the SMS keyword used to edit SMS commands for the panel.
  • Page 37  Panel Main Menu <IMPORTANT NOTE> The Panel Main Menu is displayed as follows:  The default setting in the application may be different from the setting in your Control Panel. When you use the application to program the system for the first time, please check both application and Control Panel settings for discrepancies.
  • Page 38  Away Arm / Home Arm / Disarm To change system mode, select the icon for Arm / Home / Disarm respectively. A SMS message edit screen will appear for you to confirm. Press “Send” to send the SMS command to panel. ...
  • Page 39  Alarm Setting confirm. Press “Send” to send the SMS command to panel. The Alarm Setting Menu allows you to edit  Reporting Setting alarm related configuration. The Report Setting Menu allows you to edit your telephone numbers for reporting. ...
  • Page 40  Press “Save”. A SMS message edit screen Edit Device will appear for you to confirm. Press  The Edit Device option allows you to edit a “Send” to send the SMS command to panel. device name, and attribute for Door Contact, PIR and EIR Sensor.
  • Page 41 Siren Control PSS Control   The Siren Control option allows you to The PSS Control option allows you to turn change Siren settings. on/off your Power Switch groups.   Select the function you want to edit and Select the Power Switch group you want to choose to enable or disable the function.
  • Page 42  Home Automation Rules Capture Image  Set Home Automation rules. You can manually request your PIR Camera, PIR Video Camera or IP Camera to take a picture or video. The picture will be sent to the destination programmed under Media Upload section. ...

  • Page 43: For Android Phone

    < > < > 5.2. For Android Phone  For system mode change (Arm, Home, The Android version of Vesta EZ Home Disarm), the Power Switch Ggroup Application supports complete SMS command selection is limited to #1 only. functions, including the commands to inquire ...
  • Page 44  Panel Selection Upon starting the application, you will first enter Panel Selection menu  You will return to Panel Selection menu, the new panel you entered will be displayed, select the panel to proceed to edit SMS commands for the panel. ...
  • Page 45 <IMPORTANT NOTE>  Whenever send command, please make sure you receive confirmation message from Control Panel before proceeding send next command. If you receive an error  Edit Panel Information message from the Control Panel, You can edit the Control Panel information by please resend the SMS command pressing “Edit”...
  • Page 46  Sync with Panel  PIN Setting Press the Menu button on you Android phone The PIN Setting Menu allows you to edit User to bring up the “Sync” option. Press “Sync” to PIN Codes and SMS Keyword. send an SMS command to Control Panel requesting it to report back its current mode.
  • Page 47  Alarm Setting < > < >  You can delete the User PIN code by The Alarm Setting Menu allows you to edit keeping the Pin Code field blank and alarm related configuration. save the setting. User PIN Code 1 cannot be deleted.”...
  • Page 48 configurations or high/low temperature setting.  Enter the telephone number for reporting, and select report type and events. Only SMS(CID)/ SMS(Text)/ GSM CID/ Voice reporting options are available.  Reporting Setting  Press “Save”. The phone will send a SMS The Report Setting Menu allows you to edit message to panel.
  • Page 49   Device Setting You can press the “Menu” button on your Android phone to bring up the “Sync” The Device Setting Menu allows you to edit options choose sync either device, control Siren, PSS, and request PIR Reporting 1~3 or 4~6. Camera image.
  • Page 50  Edit Device You can press the “Menu” button on your Android phone to bring up the “Sync”  The Edit Device option allows you to edit a options choose sync device device name, and attribute for Door information in different zones. Contact, PIR and EIR Sensor.
  • Page 51 Siren Control PSS Control   The Siren Control option allows you to The PSS Control option allows you to turn change Siren settings. on/off your Power Switch.   Select the attribute and choose to enable Select the Power Switch group you want to or disable the function.
  • Page 52  Home Automation Rules Capture Image  Set Home Automation rules. You can manually request your PIR Camera, PIR Video Camera or IP Camera to take a picture or video. The picture will be sent to the destination programmed under Media Upload section. ...

  • Page 53: Appendix

     Press “Save”. A SMS message edit screen 6. Appendix will appear for you to confirm. The phone will send a SMS command to panel. 6.1. Event Code < > < >  100 – Medical  For system mode change (Arm, Home, ...
  • Page 54   137 – Panel Tamper 400 – Arm/Disarm (by Remote Controller)  When the Control Panel tamper switch  When system armed is triggered. disarmed using Remote Controller.  139 – Verification / Alarm Confirmation  401 – Arm/Disarm by Panel ...
  • Page 55 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, 22 & 24 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
