TRASSIR TR-D2151IR3 Quick Manual

Specification
Model TR-D2151IR3
Image sensor 1/2.8" CMOS 5MP
Resolution 5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.003Lux (F1.8)
IR range up to 35 m
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 102˚±5˚ / 72˚±5˚
3.6mm: 83˚±5˚ / 60˚±5˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265 / H.264
Bitrate
up to 8Mbps
Local storage MicroSD up to 128GB
Audio
Built-in microphone
Corridor mode
IVS Human Detection
Line Crossing
Intrusion Detection
RTC
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.96W
PoE: 4.8W
Case material
Dimensions (mm) 183.3 x 67.3 x 63.9
Weight Net/Gross (g) 460 / 565
Ingress protection
Lightning protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
No
3
Metal
Data ___________________________ Stamp ___________________________
IP67
Here is the confirmation form for warranty assurance

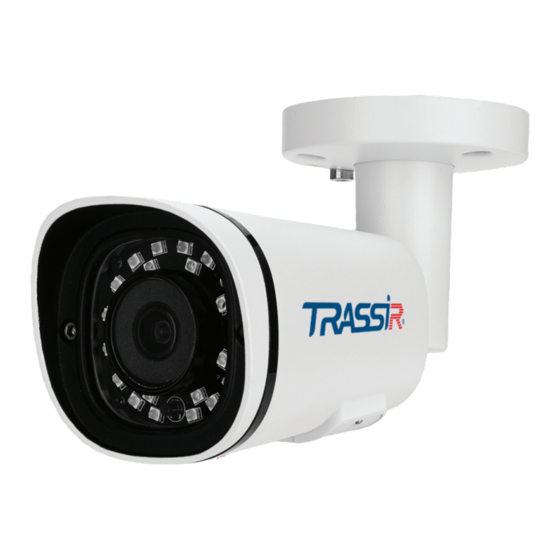

TR-D2151IR3
Outdoor IR Network Camera
H.265
HEVC
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
