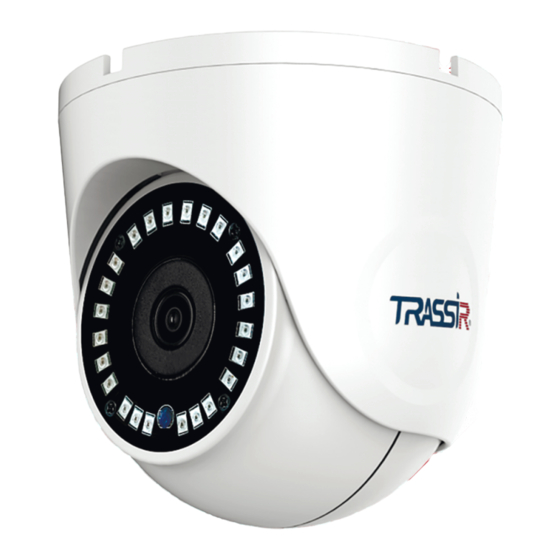

TRASSIR TR-D8221WDIR3 User Manual

TRASSIR TR-D8221WDIR3 User Manual

2mp eyeball ip camera
Hide thumbs Also See for TR-D8221WDIR3:

Advertisement

Quick Links

Specification
Model
TR-D8221WDIR3
Image sensor
1/2.8" STARVIS CMOS 2MP
Resolution
FullHD (1920x1080)
Frame rate
FullHD@25fps
Day/Night Mode
Mechanical ICR
Sensitivity
0.003Lux (F1.8) / 0Lux (IR on)
IR range
up to 30 m
Lens (mm)
1.9 / 2.8 / 3.6
Digital noise reduction
3D-DNR
WDR
Real WDR (120dB)
Video compression
Н.264 / H.265
Bitrate
8Mbps
Local storage
MicroSD up to 128GB
Audio
Alarm In / Out
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 7.6 W
PoE: 8.8 W
Dimensions (mm)
92.8 x 89.84
Net weight (g)
Ingress protection
IP66, IK10
Working temperature
-40°C ... +60°C
Camera Package
IP camera
User manual
Mounting kit
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2-way
1 / 1
3
380
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
1 pc
1 pc
1 pc
TR-D8221WDIR3
2MP Eyeball IP camera
2MP
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-D8221WDIR3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRASSIR TR-D8221WDIR3

  • Page 1 -40°C … +60°C Data ___________________________ Stamp ___________________________ Here is the confirmation form for warranty assurance Camera Package Note: read user manual before using IP camera 1 pc Website: www.trassir.com User manual 1 pc For any inquiry: info@trassir.com Mounting kit 1 pc...
  • Page 2 2. Set IP address of a camera using fast configuration utility which could ∅4,5 be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. Find detailed instruction on camera settings in user manual which could be downloaded from our website www.trassir.com.
