Specification
Model
TR-D2S5
Image sensor
1/2.9" CMOS 2MP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night Mode
Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 25 m
Lens (mm)
Field of view(horiz./vert.)
2.8mm: 98˚±5˚ / 53˚±5˚
3.6mm: 81˚±5˚ / 44˚±5˚
WDR
Real WDR(105dB)
Digital noise Reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 8Mbps
IVS
Human detection
Line crossing
Intrusion detection
Corridor mode
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 2.8W
PoE: 3.4W
Case material
Dimensions (mm)
Ø105.5 x 72
Weight Net/Gross (g)
335 / 430
Protection level
Lightning protection
TVS 4000V
Operating conditions
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
3
Metal
IP66
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D2S5

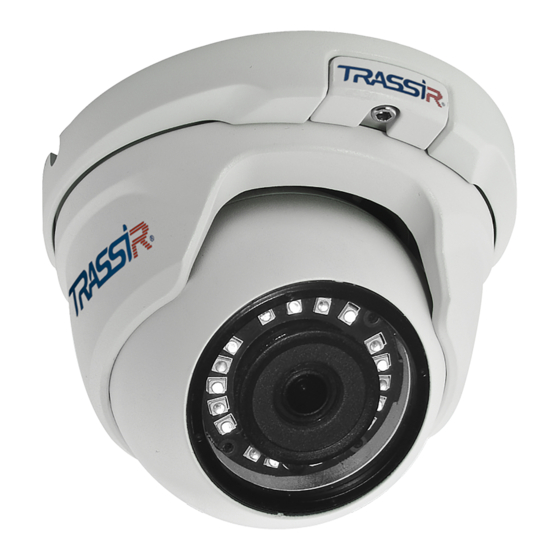

Outdoor IR Network Camera
H.265
HEVC
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Related Manuals for TRASSIR TR-D2S5
Summary of Contents for TRASSIR TR-D2S5
- Page 1 335 / 430 Protection level IP66 Lightning protection TVS 4000V Operating conditions -40°C … +60°C H.265 HEVC Data ___________________________ Stamp ___________________________ Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 105,5 2. Set up camera IP address using fast configuration utility that can be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
