TRASSIR TR-D8251WDCL3 Manual

Specification
Model TR-D8251WDCL3
Image sensor 1/2.7" CMOS 5МP
Resolution 5MP(2880x1632)
Frame rate 5MP@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Sensitivity 0.0015Lux (F1.0) / 0Lux (LED on)
LED range up to 30 m
(neutral white)
Lens (mm)
Stroboscope
Field of view (horiz./vert.) 2.8мм: 101˚ / 58˚
4.0мм: 87˚ / 46˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.6W
PoE: 4.5W
Case material
Dimensions (mm) Ø93 x 92.2
Weight Net/Gross (g) 400 / 490
Protection IP66, IK10
Power surge TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
FTC
2.8 / 4.0
Yes
3D DNR
1 / 1
Yes
Yes
0
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D8251WDCL3

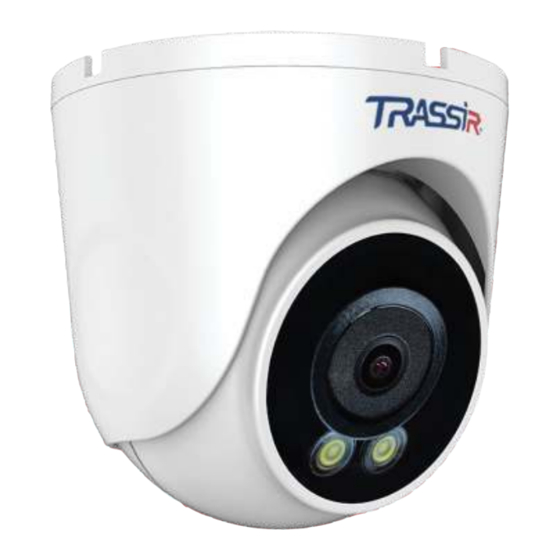

Outdoor Full Time Color Camera
Full Time
Color
IK10
Note: read user manual before using
