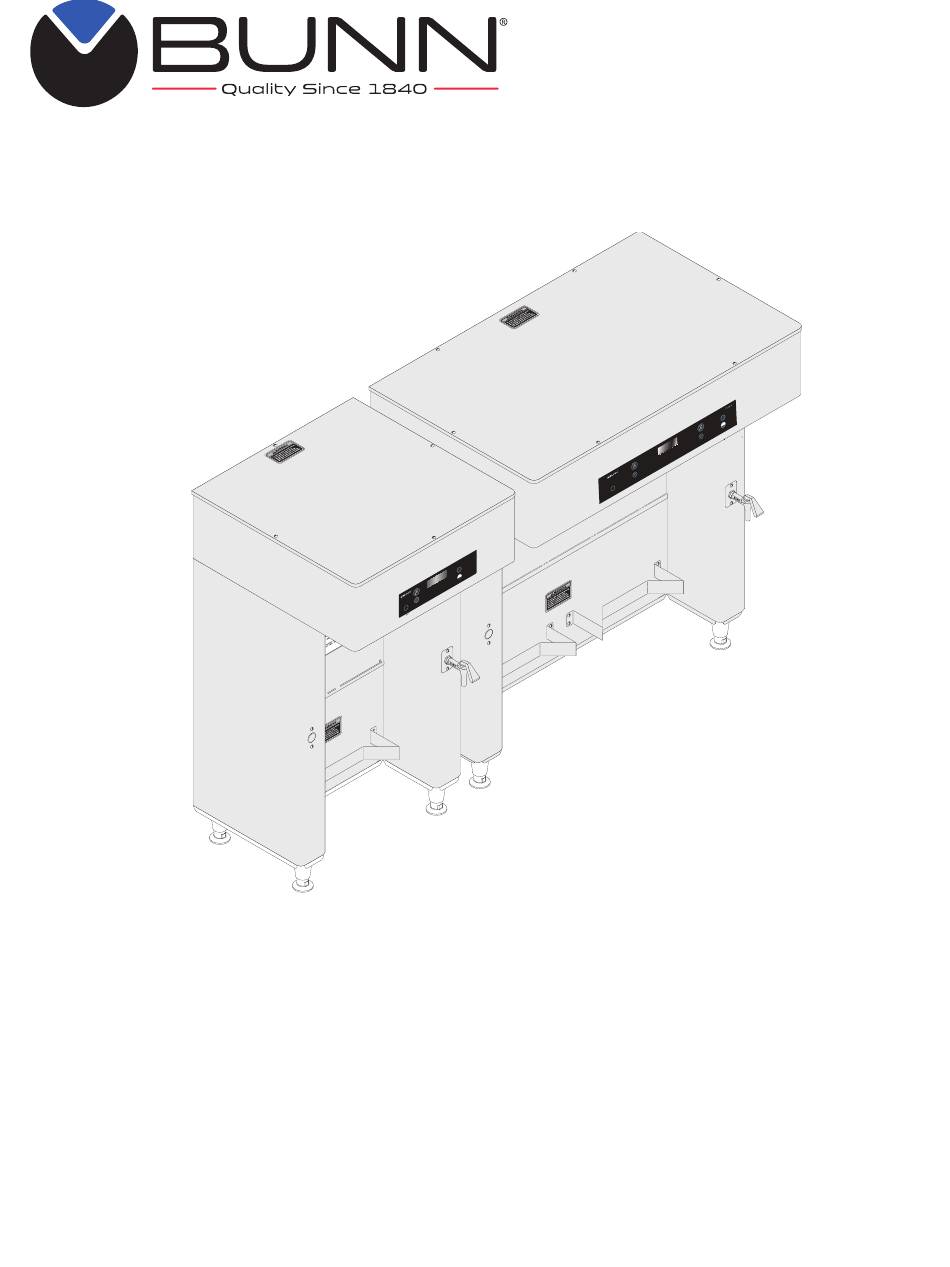

RELEASED FOR PRODUCTION
TITAN SINGLE
®
TITAN DUAL
®
PROGRAMMING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunn.com
41344.0000C 07/18 ©2008 Bunn-O-Matic Corporation
DIR Num: 41344.0000
12, December 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN SINGLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bunn TITAN SINGLE

Summary of Contents for Bunn TITAN SINGLE

  • Page 1 RELEASED FOR PRODUCTION TITAN SINGLE ® TITAN DUAL ® PROGRAMMING MANUAL BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunn.com 41344.0000C 07/18 ©2008 Bunn-O-Matic Corporation DIR Num: 41344.0000 12, December 2018...
  • Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
  • Page 3 RELEASED FOR PRODUCTION GLOSSARY BREW LOCKOUT: The inability to initiate a brew if the water temperature is less than the ready temperature programmed into the brewer. BREW METER: The setting of a pulse brew routine by entering in the total desired water delivery time. The brewer will then calculate and perform a pulse brew routine using a predetermined formula.

  • Page 4: Table Of Contents

    RELEASED FOR PRODUCTION VIEWING ASSET & SERIAL NUMBER To view the asset number of the machine, press and hold the left hidden switch until the display reads: ANXXXXXX...ASSET NUMBER. Release the left hidden switch. After a 5 second delay, the display will read: DTTNXXXXXX. This is the serial number of the machine. PROGRAMMING Using the menu-driven display on the front of the brewer, the operator has the ability to alter or modify various brewing parameters such as brew temperatures, brew volumes, bypass percentages, pulse brew, etc.

  • Page 5: Programming The Brewer

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER The programming of the brewer is divided into two levels. There is one function in Level 1. All other functions are accessed in Level 2. The following function screens are in order of appearance. Each screen will have instructions on how to access and the procedures for programming the various functions of the brewer.
  • Page 6 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - FLOW CHART BREW LOCKOUT? PROGRAMMING FUNCTIONS - LEVEL I DONE PROGRAMMING FUNCTIONS - LEVEL 2 SET LANGUAGE? UNITS SEL BREWER TYPE SET TEMP 200° METRIC DONE ENG SINGLE DUAL DONE SINGLE BREWERS REFILL BREW SETTINGS ?

  • Page 7: Brew Lockout

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL I BREW LOCKOUT This function allows the operator to prevent or allow brewing if the water temperature is less than the set READY temperature. Procedure for setting Brew Lockout: 1.

  • Page 8: Set Language

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) The functions in the second level of programming allow the operator to adjust brew settings and other feature options. To access the level 2 function screens press and hold the right hidden switch for approximately 5 seconds. Release when the display reads: SET LANGUAGE This function allows the operator to select the language used for the display.

  • Page 9: Units

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SEL BREWER TYPE This function allows the operator to select which brewer model this software is installed in. Procedure for setting the Brewer Type: 1. Press and hold the right hidden switch until the display reads SET LANGUAGE? Press and release the right hidden switch until the display reads SEL BREWER TYPE.

  • Page 10: Set Temp: Xxx

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SET TEMP: XXX° SET TEMP DONE This function allows the operator to adjust the brew water temperature in the tank. This also sets the hot water faucet dispense temperature. READY TEMP: XXX°...
  • Page 11 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) READY TEMP READY TEMP: XXX° This function allows the operator to set the minimum DONE temperature allowable to start a brew cycle. The range can be from 2° to 20° F within the set temperature. The water must be at the READY temperature or higher for the display to indicate READY TO BREW.

  • Page 12: Brew Settings

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS This function allows the operator to modify the BREW BREW SETTINGS ? VOLUMES, BYPASS PERCENTAGES and BREW METER for each batch size of both brew stations. Procedure to set or modify brew volumes.

  • Page 13: Brew Meter X

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) BREW SETTINGS ? Procedure to set or modify % Bypass settings. Range: 0 to 90% for both batch sizes 1. Press and hold the right hidden switch until display reads SET LANGUAGE.
  • Page 14 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) Procedure to set or modify BREW METER. Range: 1 to 14 for both batch sizes BREW SETTINGS ? NOTE: Using BREW METER will overwrite PULSE BREW settings.
  • Page 15 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) SET PULSE BREW/PREINFUSION This function allows the operator to program the brewer read 1ST ON TIME X:XX. and a batch light will be to “pulse” the sprayhead flow on and off during a brew blinking.

  • Page 16: Pulse Brew

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) BREW SETTINGS ? PRESSING NO WILL ADVANCE TO NEXT FUNCTION SCREEN SINGLE DUAL BREWERS BREWERS 1st ON TIME X:XX LEFT SIDE MODIFY SHOW NEXT DONE MODIFY SHOW NEXT PRESS AND RELEASE...

  • Page 17: Drip Time

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) 10. If NO is pressed, display will advance to RIGHT SIDE, along with MODIFY SHOW NEXT; proceed DRIP TIME to step 13. If YES is pressed, display should read This function allows the operator to adjust the DRIP LEFT->->->->...
  • Page 18 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW SETTINGS (cont.) BREW SETTINGS ? COPY SETTINGS ? PRESSING NO WILL ADVANCE TO NEXT FUNCTION SCREEN SINGLE DUAL BREWERS BREWERS LEFT ->->->-> RIGHT LEFT SIDE MODIFY SHOW NEXT MODIFY SHOW NEXT PRESS AND RELEASE ARE YOU SURE ?

  • Page 19: Refill

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) REFILL XXX REFILL 155 Range: 0 to 155 DONE This function allows the operator to adjust the sensitiv- ity of the refill circuit. This is mainly a troubleshooting feature.
  • Page 20 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SPRAY OZ/M (SINGLE BREWERS) L/R SPRAY OZ/M (DUAL BREWERS) This function allows the operator to view or to enter This function allows the operator to view or to enter the actual flow rate coming out of the sprayhead of the the actual flow rate coming out of the sprayhead for brewer.
  • Page 21 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BYPASS OZ/M (SINGLE BREWERS) L/R BYPASS OZ/M (DUAL BREWERS) This function allows the operator to view or to enter This function allows the operator to view or to enter the actual flow rate coming out of the bypass nozzle the actual flow rate coming out of the bypass nozzle of the brewer.

  • Page 22: Calibrate Flow

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) To exit programming, press and release the ON/ PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) OFF switch (either for DUAL Brewers) to return to the MAIN SCREEN. CALIBRATE FLOW This function allows the operator to enter the actual flow rate of the sprayhead and the bypass for each side of the brewer by dispensing both separately for one CALIBRATE FLOW?
  • Page 23 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) CALIBRATE FLOW? PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) CALIBRATE FLOW (Continued) PRESSING NO WILL ADVANCE TO BREW COUNTERS Procedure to calibrate the bypass flow rate: 1. Place a container, accurately graduated and with a SPRAYHEAD CAL minimum capacity of 60 ounces, beneath the funnel.

  • Page 24: Brew Counters

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) BREW COUNTERS This function allows the operator to track the total BREW COUNTERS? number of brew cycles completed. For DUAL brewers the number of batches brewed for each side can be PRESSING NO WILL ADVANCE TO tracked.

  • Page 25: Enable Ads

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) ENABLE ADS release YES. 12. To skip the bottom line, press and release NO. This function allows the operator to choose whether or not to display an advertising message. An ad can be a.

  • Page 26: Enable Clean

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) ENABLE ADS (Continued) ENABLE ADS DONE WITH YES FLASHING PRESS DONE WRITE BTM LINE? PRESSING DONE WHEN 2 LINES 16 CHARS NO IS FLASHING WILL PRESSING NO WILL DISABLE THIS FUNC- RETURN TO AVAILABLE...
  • Page 27 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) ENABL CLEAN ? PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) DONE ENABL CLEAN WITH YES FLASHING WITH NO FLASHING PRESS DONE PRESS DONE This function allows the operator to enable the sanita- tion function and set the time before a cleaning alert will be displayed.

  • Page 28: Enable Energy Saver

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) ENABLE ENERGYSAVR This function allows the operator to enable the ENERGY or ENERGY SAVER...REDUCED TEMPERATURE, SAVINGS mode function and set the idle time. Once depending on the settings. This screen will alternate the set idle time has expired, the operator can choose with PRESS ANY SWITCH TO RE-HEAT.
  • Page 29 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) ENABLE FRESH TIMER This function allows the operator to enable the Fresh- ness Alert and set the expiration time. The expiration time is the amount of time the product is allowed to sit in the server/dispenser before a fresh batch is brewed.

  • Page 30: Asset Number

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) ASSET NUMBER ENTER ASSET #? This function allows the operator to enter the machine's asset number. This can be useful for tracking the usage or service of an individual machine within a group. Procedure to enter the asset number: AN XXXXXX 1.

  • Page 31: Service Number

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SERVICE NUMBER ENTER SERVICE #? This function allows the operator to enter in the tele- phone number to call if service is needed. The service number will be displayed anytime there is a fault mes- sage displayed (see Troubleshooting on page 46).
  • Page 32 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SERVICE TOOLS 8. The display should now read: BYPASS VALVE (SINGLE brewers) This function allows the testing of individual components <- <- BYPASS VALVE (DUAL brewers). and the ability to check switches for proper function. This To test the bypass valve, press ON.
  • Page 33 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SERVICE TOOLS? PRESSING NO WILL ADVANCE TO FACTORY DEFAULTS TEST OUTPUTS? REFILL VALVE NEXT PRESSING NO WILL ADVANCE TO TEST SWITCHES SINGLE DUAL BREWERS BREWERS TANK HEATR RELAY NEXT BREW VALVE <- <- BREW VALVE...
  • Page 34 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) Procedure to test switches: SERVICE TOOLS? The following switches can be individually tested: PRESSING NO WILL ADVANCE TO SINGLE Brewers FACTORY DEFAULTS Full Batch Half Batch TEST OUTPUTS? Power Brew Switch Left Hidden...

  • Page 35: Factory Defaults

    RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) FACTORY DEFAULTS This function allows the operator to erase ALL of the previously entered recipes and ad messages. Factory- FACTORY DEFAULTS set default values will replace ALL previous settings. Procedure to set factory defaults: PRESSING NO WILL RETURN TO...
  • Page 36 RELEASED FOR PRODUCTION PROGRAMMING THE BREWER (cont.) PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) FACTORY DEFAULT VALUES Brew Lockout - Enabled Set Temp – 205° Language - English Ready Temp 200° Units - English Enable Ads – Disabled BREW VOLUMES Enable Clean – Disabled Half Batch –...
