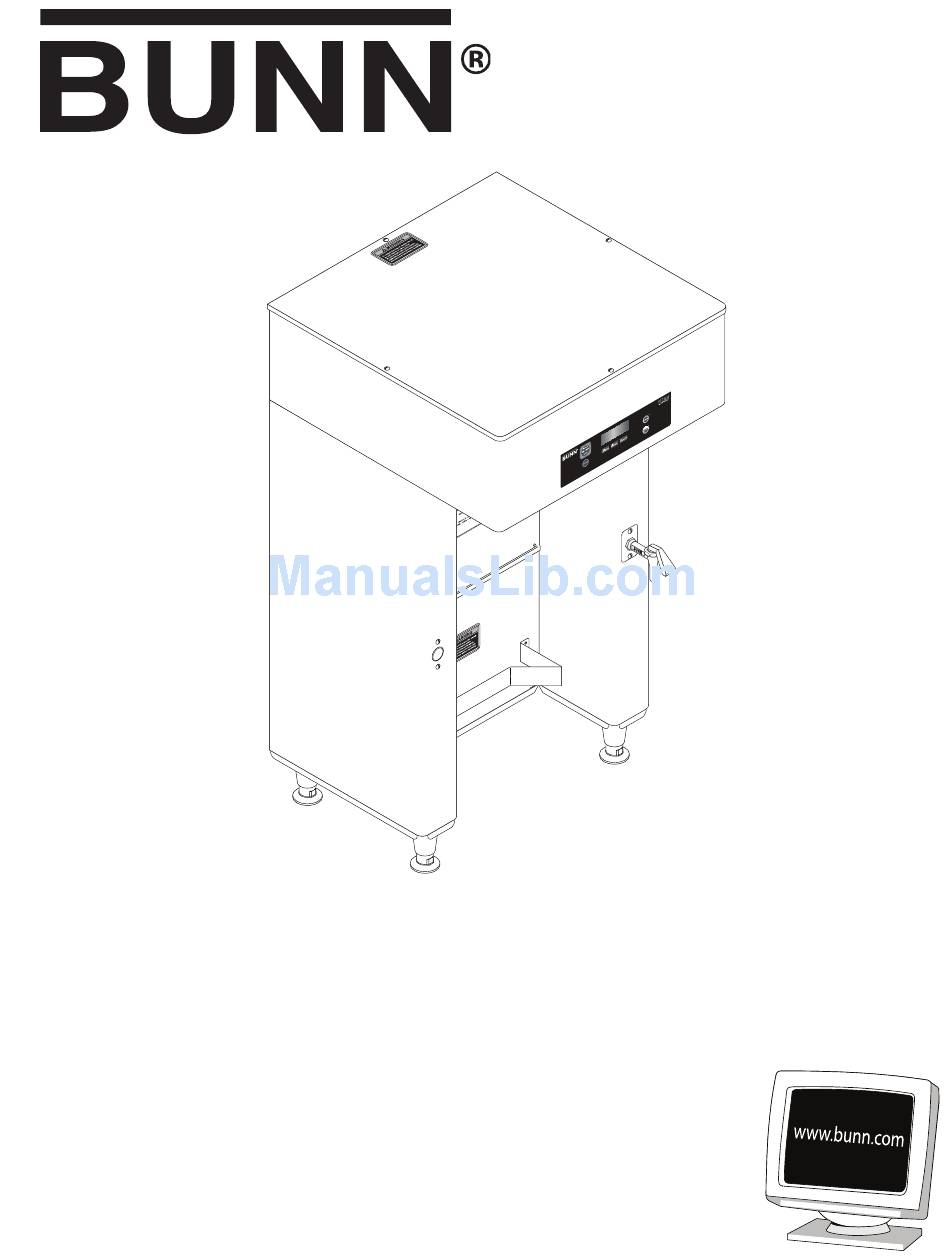

TITAN SINGLE™
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit
the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain
the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain
a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
40885.0000B 11/08 ©2008 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN SINGLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bunn TITAN SINGLE

Summary of Contents for Bunn TITAN SINGLE

  • Page 1 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S.
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: User Notices

    USER NOTICES Carefully read and follow all notices in this manual and on the equipment. All labels on the equipment should be kept in good condition. Replace any unreadable or damaged labels. WARNING HAZARDOUS VOLTAGE DISCONNECT FROM POWER SOURCE BEFORE REMOVING! 12559.0003 #00986.0000 #00658.0000...

  • Page 4: Electrical Requirements

    ELECTRICAL REQUIREMENTS WARNING - If the power cord is ever damaged, it must be replaced by the manufacturer or its service agent with a special cord available from the manufacturer or its service agent in order to avoid a hazard. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.

  • Page 5: Plumbing Requirements

    NOTE - Bunn-O-Matic recommends 3⁄8" copper tubing for all installations from the 1⁄2" water supply line. A tight coil of copper tubing in the water line will facilitate moving the brewer to clean the counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

  • Page 6: Operating Controls

    OPERATING CONTROLS READY TO BREW ENABLE ON / OFF WATER TEMP: 200° BREW LARGE BREW SMALL P3894 A. MAIN ON/OFF SWITCH This switch, located under the brewer in front of the right rear leg, turns power on and off to all components in the brewer.

  • Page 7: Initial Setup

    INITIAL SET-UP Insert an empty funnel into the funnel rails of the brew 205° F (96.1° C) station. Place an empty server under the funnel. Connect the brewer to the power source. Make sure the ON/OFF (Enable Brew) switch is ON (LED will be lit). Water will flow into the tank and stop when the tank is filled to its capacity.

  • Page 8: Coffee Brewing

    1. Begin each brew cycle with a clean empty brew funnel. edge of filter 2. Insert a BUNN filter into the funnel. NOTE: The funnels are equipped with 4 wire loops that can be folded over top edge of filter if desired, to prevent filter from folding in during the brew cycle.
  • Page 9 1. The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Do NOT clean this equipment with a water jet device. 2. Check and clean each sprayhead. The sprayhead holes must always remain open.
