Bunn TITAN SINGLE Illustrated Parts Catalog

Bunn TITAN SINGLE Illustrated Parts Catalog

Hide thumbs Also See for TITAN SINGLE:

Advertisement

Quick Links

Download this manual

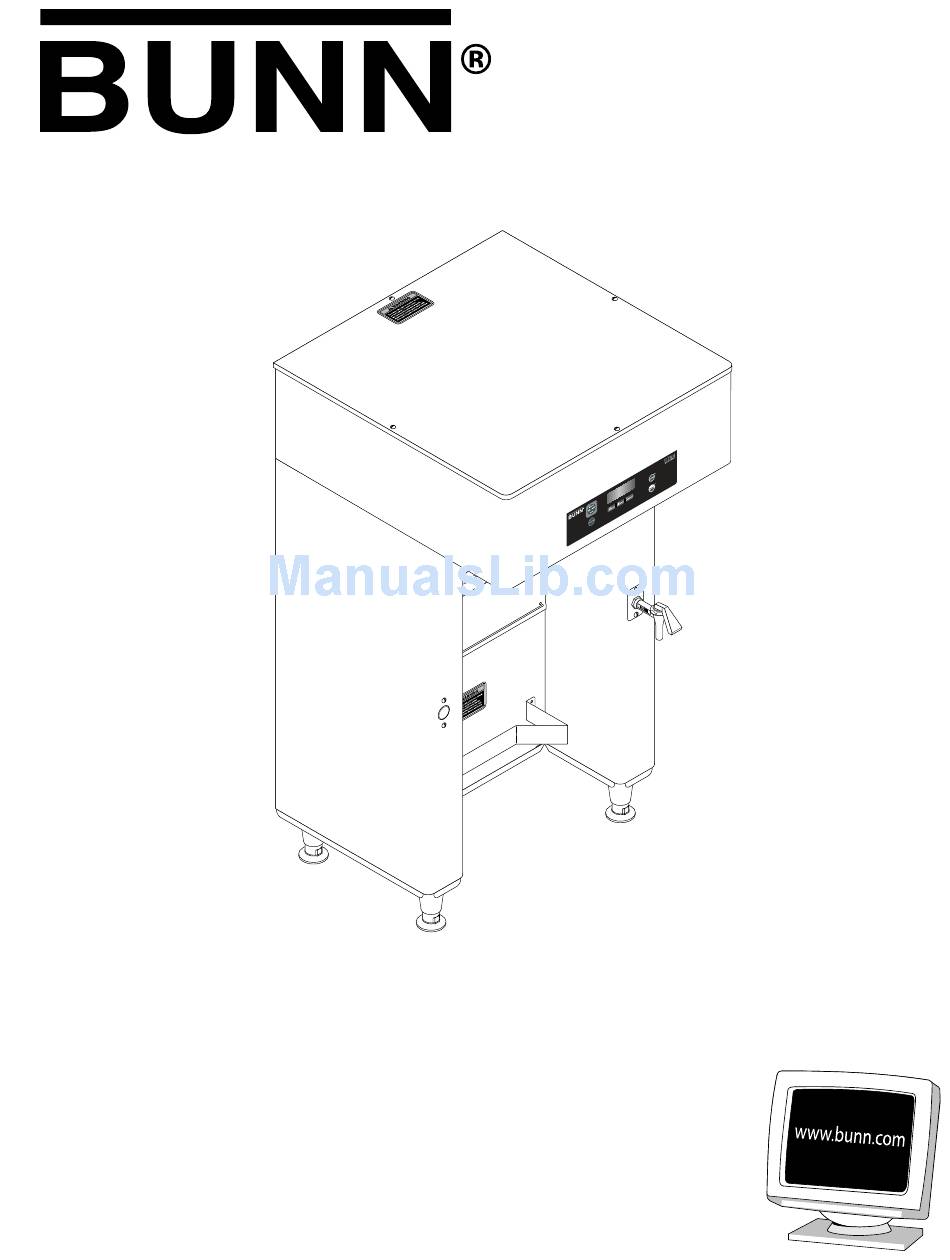

TITAN
SINGLE
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
40887.0001C 7/12 ©2010 Bunn-O-Matic Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the TITAN SINGLE and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn TITAN SINGLE

Summary of Contents for Bunn TITAN SINGLE

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 40887.0001C 7/12 ©2010 Bunn-O-Matic Corporation...
  • Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Base - Trunk - Hood - Covers & Panels ............................4 Electrical Controls ..................................18 Faucet ....................................... 16 Funnel....................................... 22 Numerical Index ..................................24 Sprayhead Valve, Water By-Pass Valve and Sprayhead ......................12 Tank and Mounting Brackets ..............................8 Tank Heater &...
  • Page 4 TITAN BASE - TRUNK - HOOD - COVERS & PANELS SINGLE 400/230 V Models P3957 40887.1 072710...

  • Page 5: Base - Trunk - Hood - Covers & Panels

    BASE - TRUNK - HOOD - COVERS & PANELS ITEM PART NO. QTY. DESCRIPTION 40644.1001 Cover Assy, Top BLK (Includes item 2 & 3) 01315.0005 Screw, Truss Head BLK #8 - 32 x .38" 37881.0000 Decal, "No Serviceable Parts" 25151.0000 Shield, Insulator 40643.1001 Hood SST (Includes item 5)
  • Page 6 TITAN TANK HEATER & OVERFLOW PROTECTION DEVICES SINGLE Brewers W/Copper Overflow Cup P3877 40887.1 070612...

  • Page 7: Tank Heater & Overflow Protection Devices

    TANK HEATER & OVERFLOW PROTECTION DEVICES ITEM PART NO. QTY. DESCRIPTION 12398.0002 Gasket, Tank Heater 12305.1000 Tank Heater, 4000W @ 208V (Includes item 1) 12322.1000 Tank Heater, 4000W @ 240V (Includes item 1) 00908.0000 Nut, Hex #8 - 32 23717.0003 Thermostat, Limit 00908.0000 Nut, Hex #8 - 32...
  • Page 8 TITAN TANK AND MOUNTING BRACKETS SINGLE P3959 40887.1 072710...

  • Page 9: Tank And Mounting Brackets

    TANK AND MOUNTING BRACKETS ITEM PART NO. QTY. DESCRIPTION 40631.0000 Bracket, Tank Support (Top) 01315.0000 Screw, Truss Head #8 - 32 x .375" 00908.0000 Nut, Hex #8 - 32 40629.0000 Lid, Tank 00908.0000 Nut, Hex #8 - 32 40627.0000 Gasket, Tank 40626.1001 Tank 40625.0000...
  • Page 10 TITAN WATER INLET VALVE & LINES SINGLE Not available order items 3, 4 & 5 Early Models 120/208 & 120/240 Volt Models Torque to 20 in. lbs. 20-14 Torque to 150 in. lbs. 230/400 Volt Models P3960 40887.1 013112...

  • Page 11: Water Inlet Valve & Lines

    WATER INLET VALVE & LINES ITEM PART NO. QTY. DESCRIPTION 39536.0000 Bracket, Solenoid Mounting 02308.0000 Screw, Pan Head #8 - 32 x .375" 34768.0001 Elbow, Male .375" Flare x .125" MPT 32359.0000 Gasket, .375" Flare Copper 41468.0000 Tube Assembly, Solenoid to Tank .38" O.D. 40040.0000 Fitting, .38"...
  • Page 12 TITAN SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD SINGLE P3961 40887.1 072710...
  • Page 13 SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD ITEM PART NO. QTY. DESCRIPTION 34801.0001 Fitting, Bypass Restrictor 32591.0003* Tube, Silicone .50" I.D. x .75" O.D. x 1.10" (Order item 36) 12422.0009 Clamp, Hose .71" x .80" I.D. 35052.0004* Tube, Silicone .75" I.D. x 1.0" O.D. x2.0" (Order item 37) 12422.0008 Clamp, Hose .93"/1.10"...
  • Page 14 TITAN SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD SINGLE P3961 40887.1 072710...
  • Page 15 SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD ITEM PART NO. QTY. DESCRIPTION 39546.0000 Fitting, Sprayhead Valve 40183.0000 C-Ring, Dispense Valve - - - - - - - - Nut, Fitting Retaining (Not available order item 20) 00957.0001 Nut, Hex .75" - 16 34868.0000 Seal, Sprayhead 35070.0002...
  • Page 16 TITAN FAUCET SINGLE P3881 40887.1 072710...
  • Page 17 FAUCET ITEM PART NO. QTY. DESCRIPTION 29075.0002 Faucet Assy (Includes items 2 thru 8) 02861.0003 Handle, Faucet 02854.0000 Bonnet, Faucet 02595.0000 Spring, Faucet 02766.0000 Seat Cup, Faucet 02856.0009* Body, Faucet (Not available order item 1) 13054.0000 Stem, Faucet 02858.0000 Pin, Spring .125" Dia. x .50" 02594.0000 Faucet Stem W/Pin (Includes items 7 &...
  • Page 18 TITAN ELECTRICAL CONTROLS SINGLE HI NE M AC HI NE IN AL IO N M AC TE RM W ER R AT IN TO IR E H BL IR IN W IT R SI O CK T IN IN AL E, CO &...

  • Page 19: Electrical Controls

    ELECTRICAL CONTROLS ITEM PART NO. QTY. DESCRIPTION 37789.1013 Circuit Board, Main control 00973.0000 Nut, Keps #6-32 01533.0002 Spacer 36366.0000 Mount, Circuit Board 38045.0001 Contactor, 3-pole 120V 38045.0000 Contactor, 3-pole 208/240V 01327.0000 Screw, Pan Head #10-32 x .375" 39535.0000 Bracket, Contactor Mounting 02308.0000 Screw, Pan Head #8-32 x .38"...
  • Page 20 TITAN ELECTRICAL CONTROLS SINGLE HI NE M AC HI NE IN AL M AC TE RM IO N R AT W ER IN TO IR E H BL IR IN W IT R SI O CK T IN IN AL &...
  • Page 21 ELECTRICAL CONTROLS ITEM PART NO. QTY. DESCRIPTION 12570.0000 Grommet, Temperature Sensor 40286.0000 Probe Kit, Temperature/Dry Plug 29446.0005 EMI Filter, European 36 amp 3 Phase 02331.0000 Screw, Truss Head #10 - 32 x .38" 41539.0000 Guard, EMI Filter NOTE: The following items are not illustrated 39949.0000 Wiring Harness, Contactor-Out (120/208 &...
  • Page 22 TITAN FUNNEL SINGLE P3964 40887.1 072710...
  • Page 23 FUNNEL ITEM PART NO. QTY. DESCRIPTION 40114.0000 Funnel Assy, SST (Each includes Items 2 thru 9) 39358.1002 Funnel W/Decals (Includes items 3 & 4) 03408.0004 Decal, Caution-Remove Funnel 03409.0004 Decal, Caution-Hot Liquid 12485.0007 Handle, Funnel-Black 12499.0002 Screw, Round Head .BLK 25" - 20 x 1.5" 39372.0000 Filter Basket w/Splash Guard 32139.0000...

  • Page 24: Numerical Index

    NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 00310.0008......11 12422.0000......7 35953.0000......19 40348.0000......13 00619.0013......17 12422.0001......17 35955.0000......19 40349.0000......13 00656.0001......5 12422.0005......9 35955.0001......19 40350.0000......
