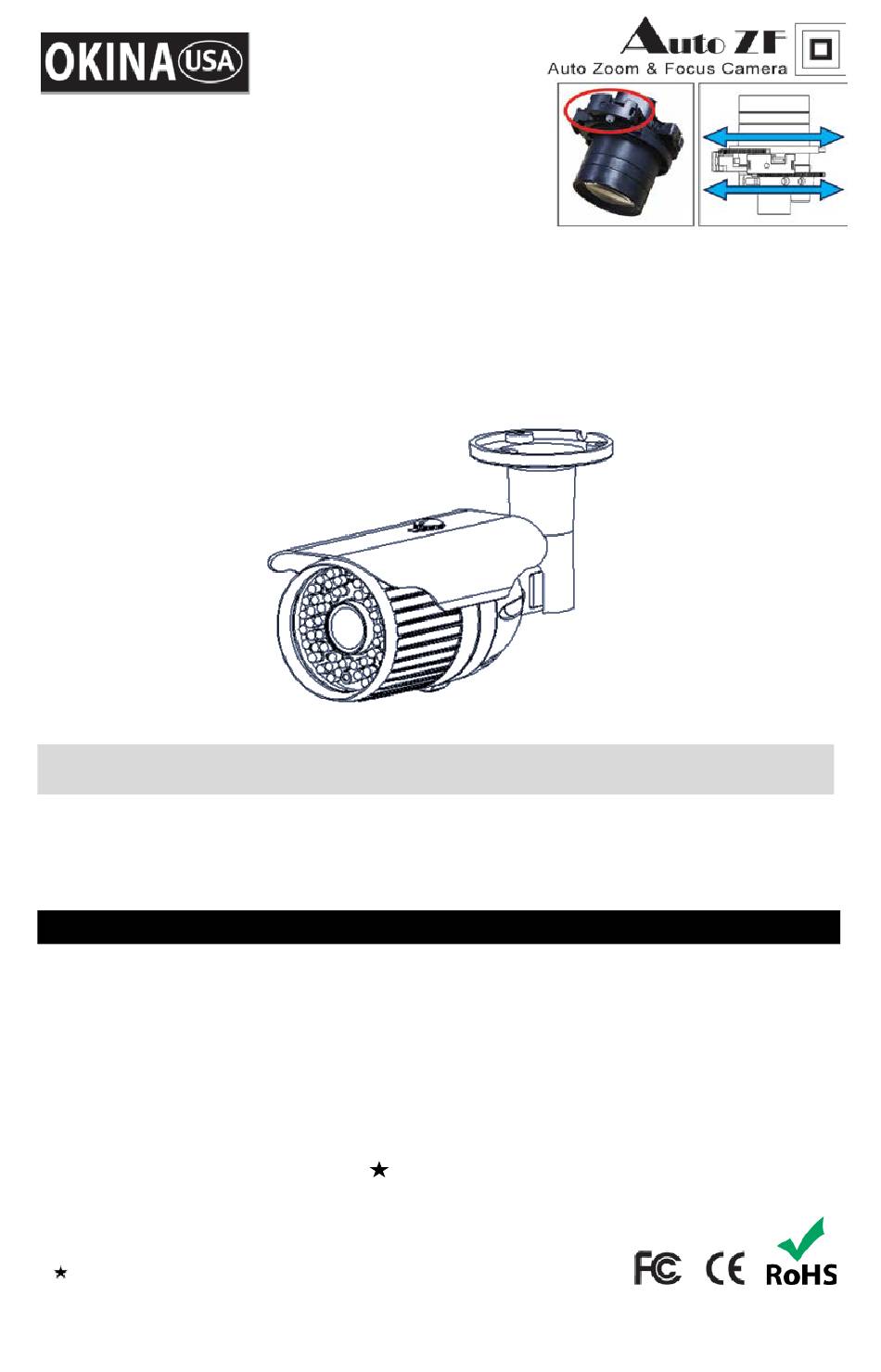

HD21B54-K10
HD SDI 1080p Optical Zoom & Auto Focus
Auto ZF Camera:
Auto ZF Lens:
54 OSRAM IR LED:
FEATURES
•
SDI 1080p - 1920 x 1080
•
1/3" Panasonic CMOS
•
Auto IRIS Twin Stepping Motorized Lens - 10X Zoom - 5~50mm
•
54 OSRAM IR LED – IR Distance: 150 feet / 50 meter
•
Mechanical IR Cut Filter - ICR
•
OSD and RS485
•
520mA max @ IR Off; 880mA max @ IR On
•
Dual Power 12V DC / 24 V AC
•
IP68 Rating
Due to the Twin Motorized AF Lens, we recommend to use
12V DC 1.5A / 1500mA for each camera.
Copyright © 2013. All Rights Reserved.
54 IR LED Bullet Camera
USER MANUAL
Made in Korea
Made in Korea
Made in Germany
International Patent Registered:
PCT/KR2011/007613 & 7656 & 8080
HDC-9
R201310-V22
Advertisement
Table of Contents
Related Manuals for Okina HD21B54-K10
Summary of Contents for Okina HD21B54-K10
- Page 1 HD21B54-K10 International Patent Registered: PCT/KR2011/007613 & 7656 & 8080 HD SDI 1080p Optical Zoom & Auto Focus 54 IR LED Bullet Camera USER MANUAL Auto ZF Camera: Made in Korea Auto ZF Lens: Made in Korea 54 OSRAM IR LED:...
- Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Limited Warranty
When the video product exhibits a distinct change in performance. LIMITED WARRANTY OKINA USA products are covered under warranty for three (3) years from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. -
Page 4: Parts And Functions
DIMENSIONS (Unit: inches / mm) #1 HD-SDI (Gold) #2 POWER (Red) #3 RS485 Orange (+), White ( ̶ ) PELCO D 9600bps connection PARTS AND FUNCTIONS RESET button for lens position • Optimize AF lens position RESET •... -
Page 5: Osd Operation
Five Direction Key Operations: OSD Control Mode Label Name Function A/F MENU ENTER Button Down Left Right LENS (AF) Control Mode – Zoom & Focus Label Name Function A/F MENU Quick Auto Focus Aiming Button Zoom-In (Tele) Zoom-Out (Wide) Focus-In (Near) Focus-Out (Far) Control distance... - Page 6 1. LENS: Lens Mode Setting VIDEO: VIDEO IRIS LENS drive is used. MANUAL: MANUAL IRIS LENS mode when you apply FIXED TYPE lens, it can used, 2.1mm ~ 50mm lens can be applied to a variety of lens. DC: AUTO DC IRIS lens, if applicable, DC IRIS MOTOR driven by the Open the aperture is closed.
- Page 7 3. WHITE BAL: White Balance Setting White balance can be manually or automatically adjusted to fit environmental lighting, e.g., matching the light source of white object caught in sunlight to color balance in the camera. MANUAL: (Fig. 3.2) Adjust the white balance manually. The manual mode enables finer adjustment.
- Page 8 B/W Mode: (Fig. 4.2) BURST: OFF or ON. i. Color signal to noise generated by switching to black and white mode to full function is used IR SMART: OFF or ON. i. IR LED lights up at night or, if the object is close to the front of the camera, IR LED to increase visibility for yourself is to adjust the...
- Page 9 6. SPECIAL: Special Feature Setting CAM TITTLE, the name of the camera: ON: A keyboard layout will pop up in order to edit the name. OFF: Turn off this function. D-EFFECT: (Fig. 6.2) FREEZE: Freeze Frame function can be selected. MIRROR: REVERSE mode.
- Page 10 PRIVACY: Mask off certain areas on the screen. OFF: Turn off function. ON: (Fig. 6.4) Select motion detection functions. i. SELECT: Set up AREA 1 ~ 8. ii. DISPLAY: The location and size of the masked area can be adjusted. iii.
-
Page 11: Troubleshooting
7. ADJUST: Screen Adjustment Function SHARPNESS: display precision (Sharpness) 0 ~ 100 steps to adjust the level. Selected: i. RESOLUTION: ON / OFF at the same time, the resolution will augment. MONITOR: select the type of vide o output device-optimized video monitoring of the environment provided. - Page 12 The screen is dim: Clean, wipe the lens with a cloth or brush. The screen is exposed to too strong light; change the camera angle or the position. The screen is dark: Please adjust the contrast of your monitor. ...
-
Page 13: Specification
SPECIFICATION Model HD21B56-K10 1/3" Panasonic 2.1 Megapixel WDR (Wide Dynamic Range) Image Sensor Format CMOS - ACCE Technology Total Pixels Max.1920 x 1080 (1080P FULL HD) Horizontal Resolution 2.1 Megapixel (1920 x 1080) OSRAM BLACK Visible 5mm, 200mA POWER IR LED IR LED Number (850nm, 12°+24°) x 54ea Visibility Range... -
Page 14: Related Products
RELATED PRODUCTS HD SDI 1080p Auto Zoom & Focus Box Camera HD21T-K10 HD21T-K4 HD SDI 1080p Optical Zoom & Auto Focus 36 IR LED Vandal Dome Camera HD21VDX36-K10 HD21VDX36-K4 HD SDI 1080p Optical Zoom & Auto Focus 36 IR LED Indoor Dome Camera HD21DX36-K10 HD21DX36-K4 HD SDI 1080p Optical Zoom &... - Page 16 www.okinausa.com MADE IN KOREA HDC-9 Copyright © 2013. All Rights Reserved. www.okinausa.com R201310-V22...
