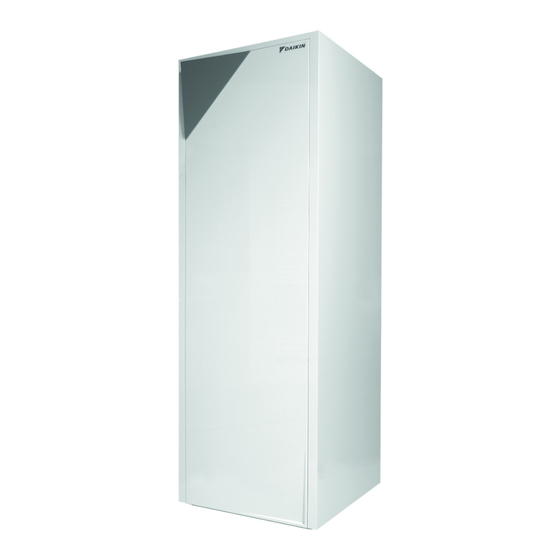

Daikin Altherma EHVH08S18CB Installation Manual
Low temperature split
Hide thumbs
Also See for Altherma EHVH08S18CB:
- Installation manual (28 pages) ,
- Operation manual (12 pages) ,
- User reference manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Daikin Altherma EHVH08S18CB
Summary of Contents for Daikin Altherma EHVH08S18CB
- Page 1 Installation manual Daikin Altherma – Low temperature split EHVH04S18CB EHVH08S18CB EHVH08S26CB EHVH11S18CB EHVH11S26CB EHVH16S18CB EHVH16S26CB EHVX04S18CB EHVX08S18CB EHVX08S26CB EHVX11S18CB EHVX11S26CB Installation manual EHVX16S18CB English Daikin Altherma – Low temperature split EHVX16S26CB...
- Page 2 3P384987-2F...
-
Page 3: Table Of Contents
▪ A subset of the latest technical data is available on the regional 5 Configuration Daikin website (publicly accessible). Overview: Configuration ............12 ▪ The full set of latest technical data is available on the Daikin 5.1.1 To access the most used commands ......13 extranet (authentication required). -
Page 4: Preparation
Minimum required flow rate during defrost/backup heater operation 04+08 models 12 l/min 11+16 models 15 l/min See the recommended procedure as described in "6.2 Checklist during commissioning" on page 18. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 5: Preparing Electrical Wiring
Backup heater Power supply Required number of type conductors 1× 230 V 2+GND 1× 230 V 2+GND + 2 bridges 3× 230 V 3+GND + 1 bridge 3× 400 V 4+GND EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 6: Mounting The Indoor Unit
4.4.2 To connect the recirculation piping Prerequisite: Only required if you need recirculation in your system. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 7: To Fill The Water Circuit
1 Connect the water supply hose to the fill valve. 3 Routing of the wiring inside the unit should be as follows: 2 Open the fill valve. EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 8: To Connect The Main Power Supply
It is only possible for the system to have CAUTION EITHER preferential kWh rate power supply OR a safety Do NOT push or place redundant cable length in the unit. thermostat. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 9: To Connect The Backup Heater Power Supply
2 4 6 14 2 4 6 14 Ω Ω 6 kW 1~ 230 V 1 2 3 4 6 7 8 (*9W) 1 3 5 13 2 4 6 14 EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 10: To Connect The User Interface
Be careful NOT to pinch the wiring when attaching the frontplate to the unit. The main user interface is required for operation, but has to be ordered separately (mandatory option). Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 11: To Connect The Domestic Hot Water Pump
To connect the safety thermostat (normal closed contact) 1 Connect the safety thermostat (normal closed) cable to the appropriate terminals as shown in the illustration below. EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 12: Finishing The Indoor Unit Installation
You can access the installer settings using two different methods. However, NOT all settings are accessible via both methods. If so, the corresponding table columns in this chapter are set to N/A (not applicable). Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 13: To Access The Most Used Commands
Relays 1+2 ON Relay 1 ON Relay 2 ON Confirm Adjust Scroll 3 Go to the corresponding second part of the setting by using the button. EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 14: Quick Wizard: Options
▪ 0 (No): None hot water ▪ 1 (Bivalent): Gas, oil boiler ▪ 2 (Disinf. shunt): Installed ▪ 2: N/A disinfection ▪ 3: N/A See also illustrations below. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 15: Quick Wizard: Capacities (Energy Metering)
+ scheduled (only for ▪ 5: Installed (1000 pulse/kWh) leaving water temperature control) 5.2.4 Quick wizard: Capacities (energy metering) Code Description [A.2.3.1] [6-02] Booster heater capacity [kW] EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 16: Domestic Hot Water Control
The maximum temperature that users can select for the domestic hot water. You can use this setting to limit the temperature at the hot water taps. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 17: Contact/Helpdesk Number
UFH screed dryout kW limits for DI Air purge Priority Actuator test run INFORMATION Depending on the selected installer settings and unit type, settings will be visible/invisible. EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 18: Commissioning
04+08 models 12 l/min The air purge valve is open (at least 2 turns). 11+16 models 15 l/min The pressure relief valve purges water when opened. Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 19: To Perform An Air Purge
▪ Explain the user how to properly operate the system and what to test run. do in case of problems. ▪ Solar pump test ▪ Show the user what to do in relation to maintaining the unit. EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... -
Page 20: Technical Data
▪ Explain the user about energy saving tips as described in the operation manual. Technical data A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is available on the Daikin extranet (authentication required). Piping diagram: Indoor unit... -
Page 21: Wiring Diagram: Indoor Unit
Position in switch box External indoor or outdoor ambient English Translation thermistor Position in switch box Position in switch box Preferential kWh rate power supply contact EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02... - Page 22 Only for wired thermostat 12 V DC pulse detection (voltage 12 V DC pulse detection (voltage Only for wireless thermostat Only for wireless thermostat supplied by PCB) supplied by PCB) Installation manual EHVH/X04~16S18CB + EHVH/X08~16S26CB Daikin Altherma – Low temperature split 4P384971-1E – 2018.02...
- Page 23 Standard part 2 core 2x0.75 X5M: 1-2 A2P: P1-P2 user interface communication Optional part Only for *KRUCBL* 2 core 2x0.75 communication A2P: P1-P2 user interface 4D090420 A EHVH/X04~16S18CB + EHVH/X08~16S26CB Installation manual Daikin Altherma – Low temperature split 4P384971-1E – 2018.02...
- Page 24 4P384971-1 E 00000006 4P384971-1E 2018.02...
