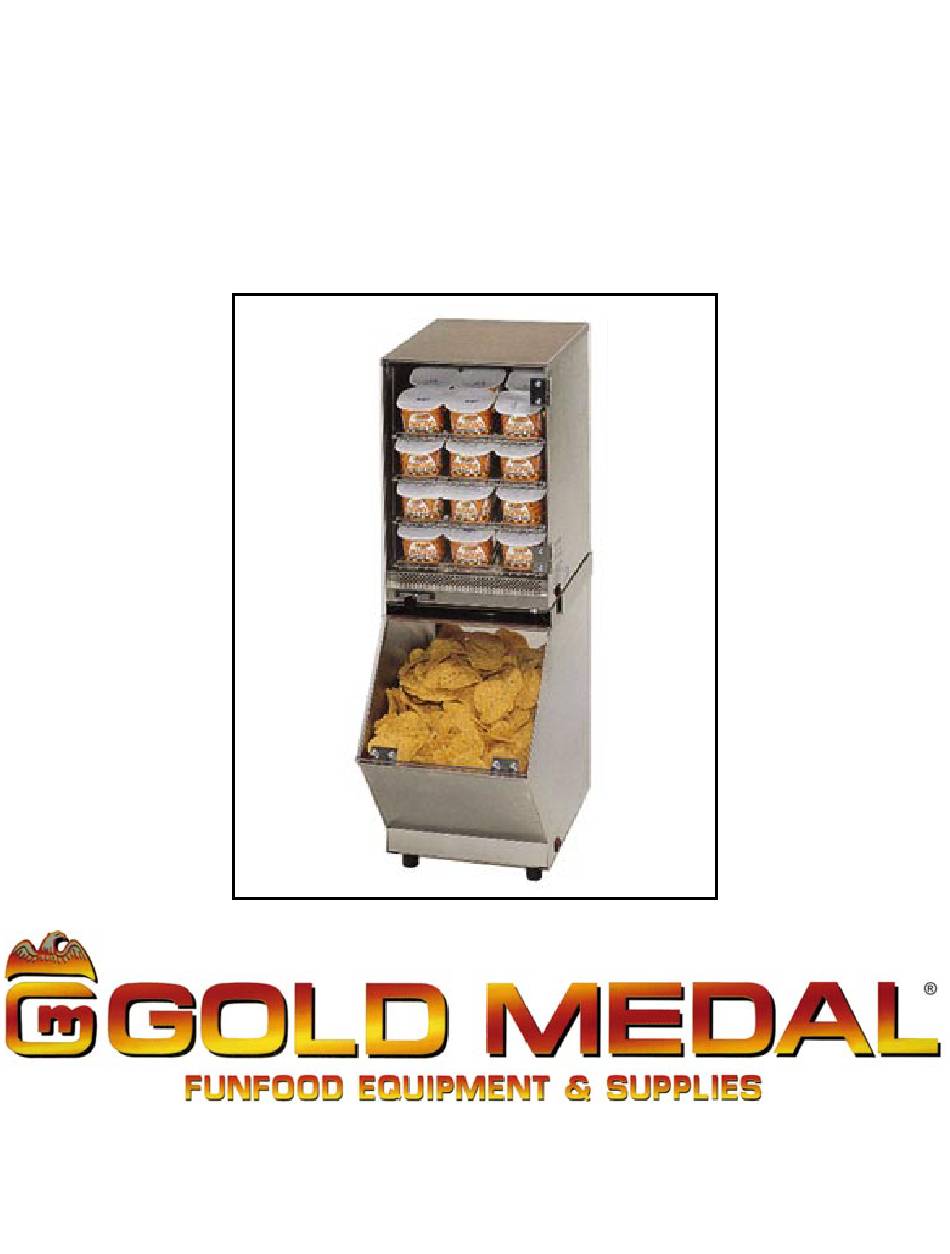

- Page 1 Nacho Chip Warmer Part No. 40558EX Revised June 1996 Instruction Manual Model #5584EX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Checking Shipment
Nacho Chip Warmer FORWARD This instruction manual and parts listing covers the following models: 5584EX Nacho Chip Warmer. Clean your nacho chip warmer thoroughly upon arrival to remove any debris left from manufac- turer (see “CARE AND CLEANING” instructions). CHECKING SHIPMENT Your new Chip Warmer is shipped completely assembled, ready to operate. -
Page 4: Care And Cleaning
Nacho Chip Warmer CARE AND CLEANING Your Nacho Chip Warmer is constructed of a all stainless steel cabinet and a tempered front glass. When your unit becomes dirty usually a damp cloth will remove all dirt and grease spots. A sanitary cleaner can be used to remove stubborn areas. The front tempered glass window should be kept clean for easy viewing of your nacho chips. -
Page 5: Maintenance Instructions
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 6: Cabinet Assembly
Nacho Chip Warmer CABINET ASSEMBLY #5584 XPORT ODEL... -
Page 7: Parts List - Cabinet Assembly
Nacho Chip Warmer PARTS LIST - CABINET ASSEMBLY Item No. Part No. Description 40012 Porcelain Socket 11 Watt Light Bulb, Coated 40902 Heat Transfer Plate 40554 Cabinet Weld Assembly 40563 Glass, Tempered 40567 Glass Channel, 292,1mm 40568 Glass Channel, 174,6mm Strip Heater, 50 Watt 40324 Rocker Switch... -
Page 8: Electrical Schematic
Nacho Chip Warmer ELECTRICAL SCHEMATIC #5584 XPORT ODEL... -
Page 9: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
