MONOPLEX WATER PUMP CONTROL
SERVICE MANUAL
P/N 00-00145-100
CAUTION
Note:

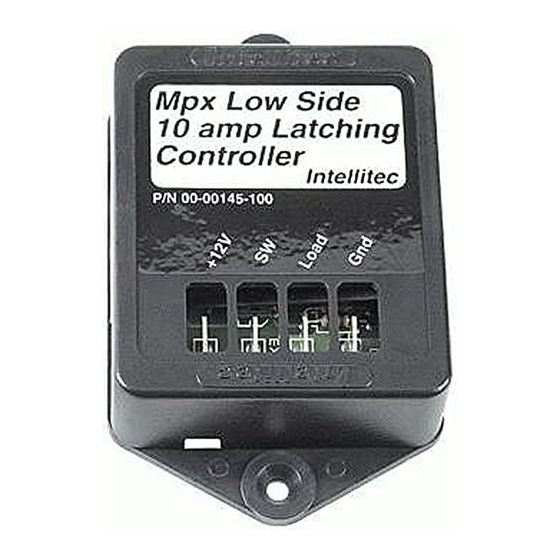

MONOPLEX WATER PUMP CONTROLLER
The
is a power switching controller used
to operate the domestic water pump in an RV. Power from the battery of the vehicle is fed to
this control. Inadvertent shorts at this box could result in damage and/or injury.
All servicing of this box should be done only by a qualified Service Technician.
Tools required: Low current test light, DC voltmeter
1485 Jacobs Rd.
Intellitec
Deland, FL 32724
386.738.7307
Www.intellitec.com
1
P/N 53-00145-000 Rev. B 032119
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intellitec MONOPLEX
Summary of Contents for Intellitec MONOPLEX

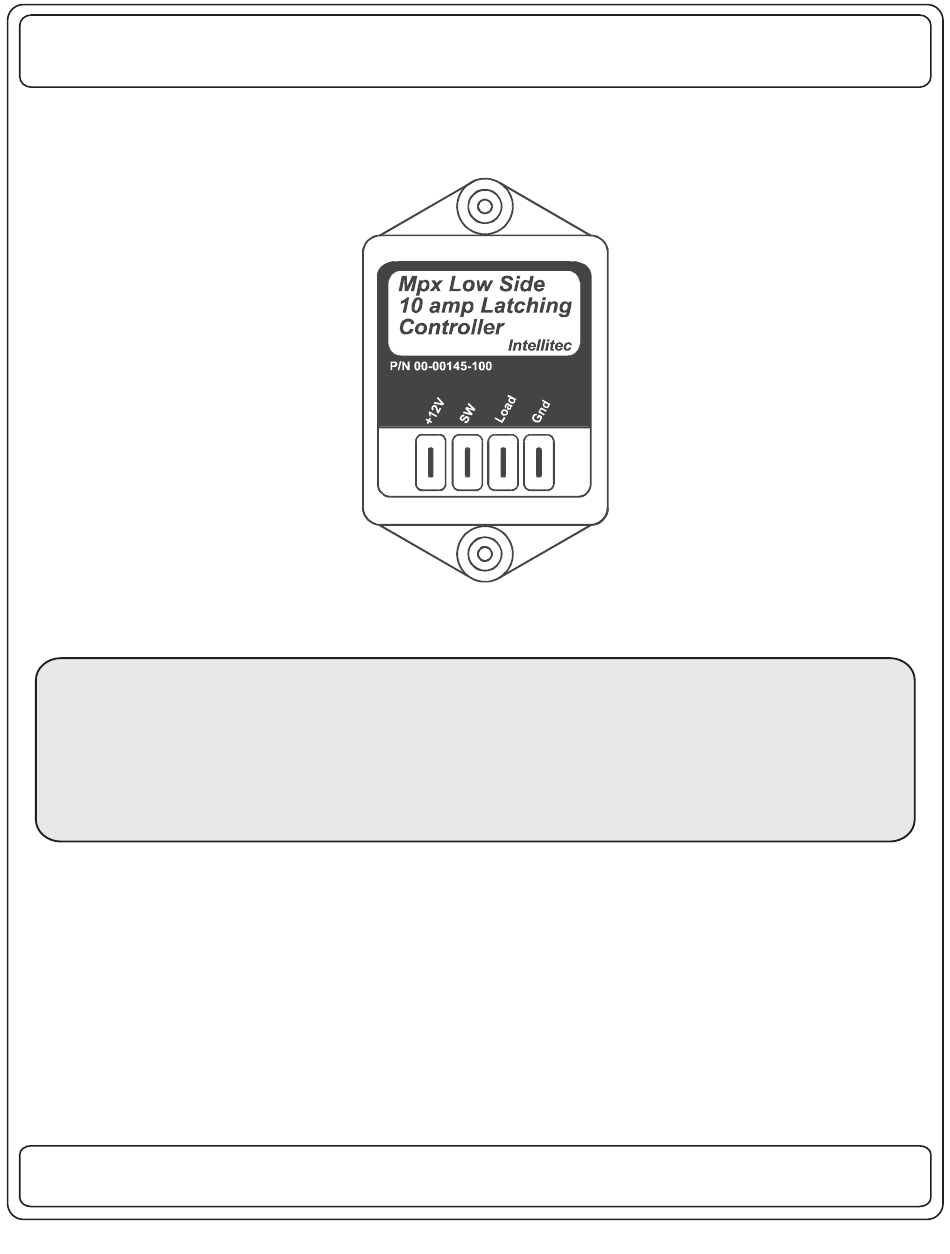

- Page 1 MONOPLEX WATER PUMP CONTROL SERVICE MANUAL P/N 00-00145-100 CAUTION Note: MONOPLEX WATER PUMP CONTROLLER is a power switching controller used to operate the domestic water pump in an RV. Power from the battery of the vehicle is fed to this control. Inadvertent shorts at this box could result in damage and/or injury.
- Page 2 PRODUCT DESCRIPTION MONOPLEX Water Pump Controller MONOPLEX is a part of the Intellitec family. These controllers all work on the principle of putting the controller near the load to minimize the length of heavy wiring, and the use of a single, low current control wire to connect to all the switches. Using this...
- Page 3 MONOPLEX WATER PUMP CONTROL SERVICE MANUAL Trouble Shooting Possible Problem Cause/Solution Pump won't run. Pump fuse blown. Check fuse, replace if necessary. Pump defective. Remove pump wire from controller and connect it to ground. Pump should run, if not replace pump.
- Page 4 MONOPLEX WATER PUMP CONTROL SERVICE MANUAL 1485 Jacobs Rd. Intellitec Deland, FL 32724 386.738.7307 Www.intellitec.com P/N 53-00145-000 Rev. B 032119...
