Intellitec MPX Sofa 200 Service Manual

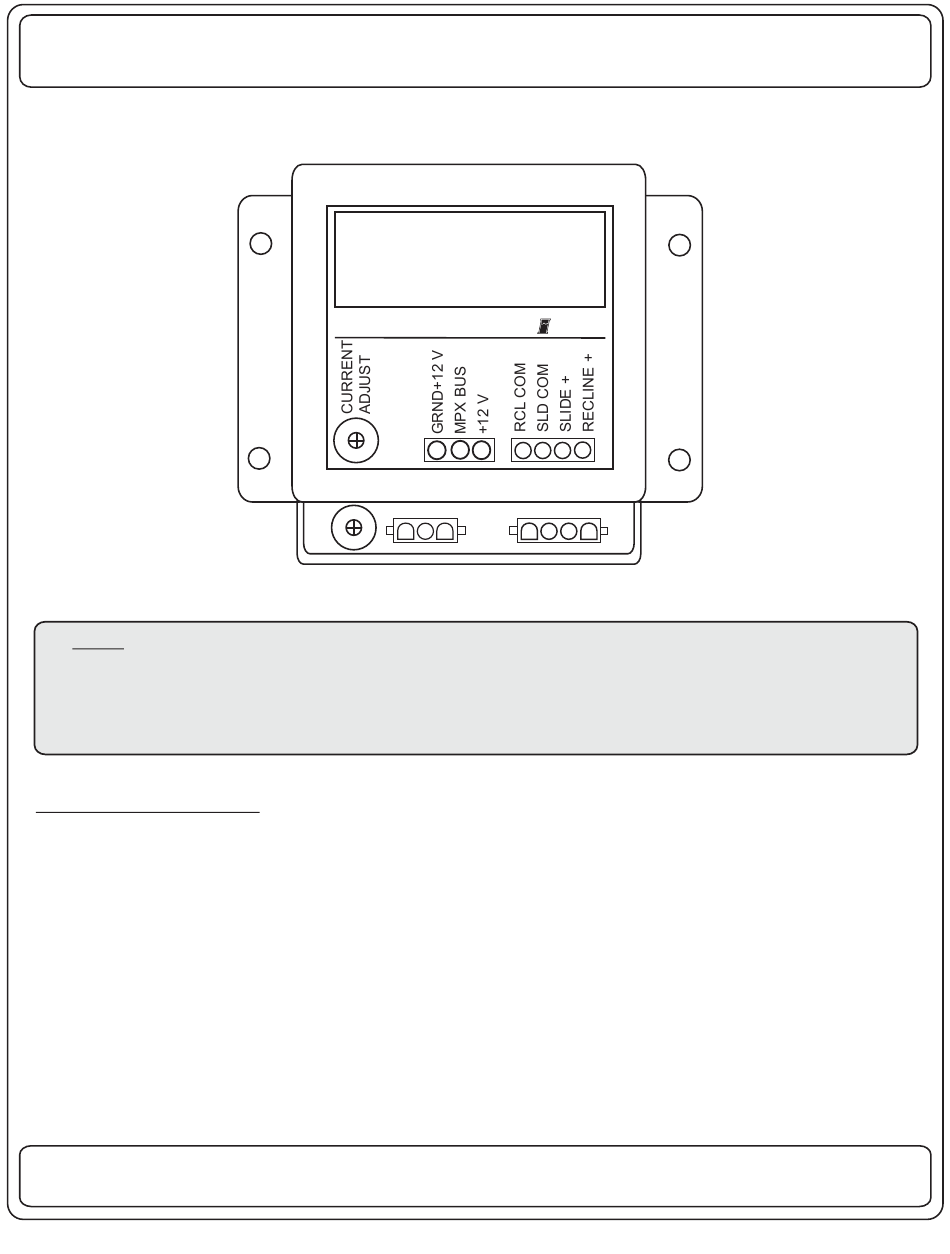

MPX Sofa Controller
NOTE : The MONOPLEX SOFA CONTROL is a centralized power switching controller used to
operate a four-way, slide-recline power sofa. Power from the battery of the vehicle is fed to this
control. Inadvertent shorts at this box could result in damage and/or injury.
All servicing of this box should be done only by a qualified Service Technician.
PRODUCT DESCRIPTION
The MONOPLEX SOFA CONTROLS,
Model 400) are intended for use in conversion vehicles to control the operation of a two-way or four-way, slide-
recline power sofa. They allow easy wiring of multiple switches and provide electronic shutdown at the end of
travel to prevent annoying circuit breaker or fuse openings.
The MONOPLEX System requires only one light-gauge wire and ground to connect the multiple switches. The
control is normally located near or on the sofa so the motor wires can be easily connected. A single 12 gauge
wire feeds power to the control from the fuse blockTo operate the sofa, a switch is pressed and held in the
direction of the function desired (slide forward or back, or recline up or down). After the sofa has reached its
desired position, the switch is released. If the switch is held until the sofa reaches its mechanical stops, the
control will automatically shut off the power. This feature also prevents damage to the sofa if it is operated with
someone sitting on it.
Intellitec
www.intellitec.com
SERVICE MANUAL
Sofa Control
Model 400
00-00376-000
Made in the USA
Intellitec Part Numbers 00-00375-000 and 00-00376-000
Tools required: Low current test light, DC voltmeter
(Intellitec Part Numbers 00-00375-000 Model 200 and 00-00376-000
200/400
by
Intellitec
P/N 53-00375-376 Rev. C 032619
1485 Jacobs Rd.
Deland, FL 32724
386.738.7307
