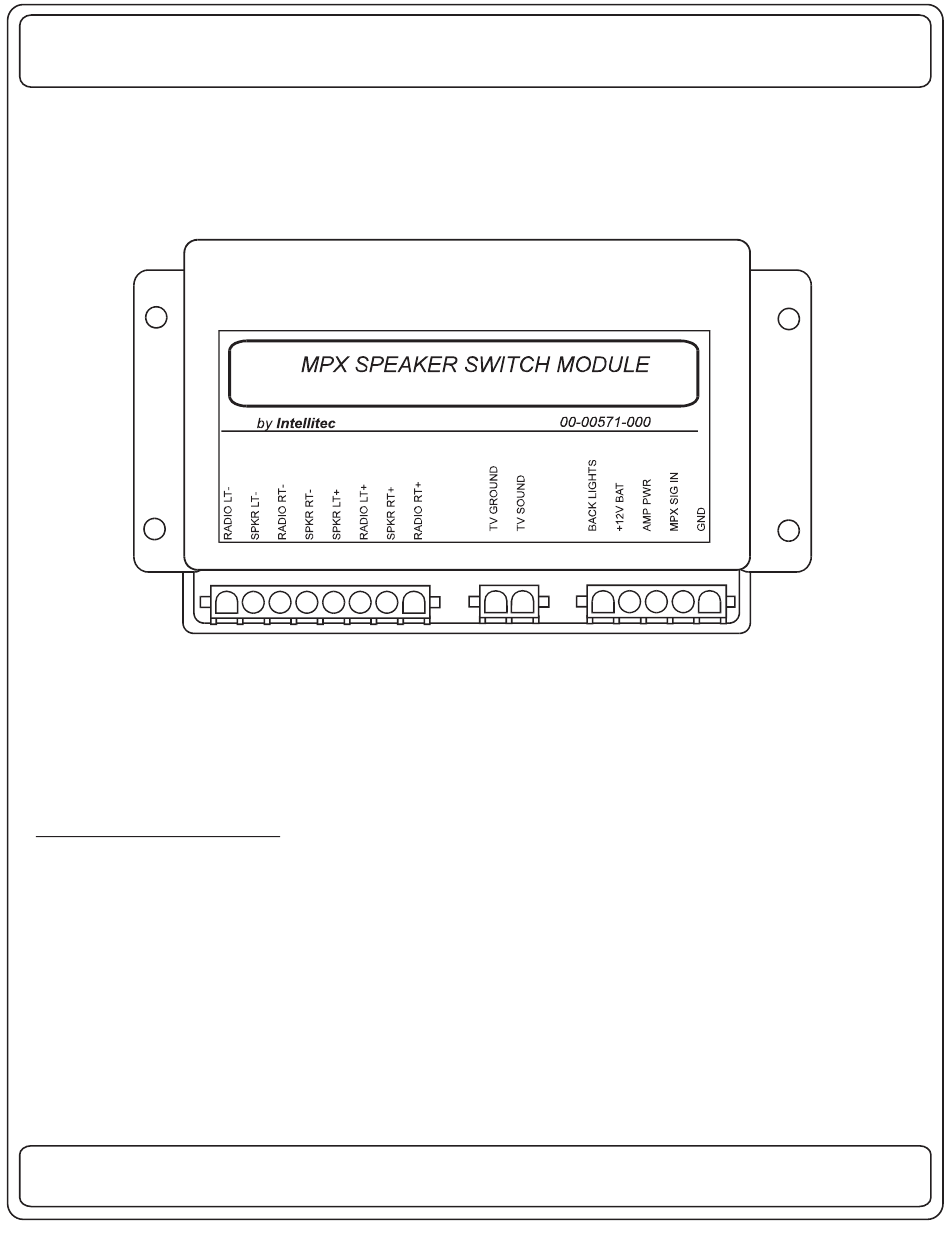

MONOPLEX SPEAKER SWITCH
SERVICE MANUAL
Part No. 00-00571-000
PRODUCT DESCRIPTION
The MONOPLEX Speaker Switch is intended to be used in conversion vehicles to switch the rear speakers
from a radio to the TV. This allows the TV sound to be brought out through the rear speakers. The module
is designed so it can work with an audio amplifier that has a control input that turns the amplifier on or off.
When the ignition is turned on, the rear speakers will be muted. The power to the amplifier will be turned
off. At the first press of the switch, the speakers will be connected to the radio inputs and the amplifier is
turned on.
The next press of the switch will connect the speakers in series and turn on the amplifier, bringing the TV
sound out of the rear speakers. The third press will mute sound. Then the process is repeated.
1485 Jacobs Rd.
Intellitec
Deland, FL 32724
386.738.7307
www.intellitec.com
P/N 53-00571-100 Rev. B 032619
1
Advertisement
Related Manuals for Intellitec MONOPLEX
Summary of Contents for Intellitec MONOPLEX
- Page 1 PRODUCT DESCRIPTION The MONOPLEX Speaker Switch is intended to be used in conversion vehicles to switch the rear speakers from a radio to the TV. This allows the TV sound to be brought out through the rear speakers. The module is designed so it can work with an audio amplifier that has a control input that turns the amplifier on or off.
- Page 2 SERVICE MANUAL HOW IT WORKS The MONOPLEX Speaker Switch provides a means of switching the two rear speakers to allow switching between the four radio inputs and two TV inputs. The actual switching is done with relays. These relays are controlled by the control electronics to provide the functions of the unit. When the unit is not powered, the speakers are connected in series, but are not connected to any signal source.
- Page 3 MONOPLEX SPEAKER SWITCH SERVICE MANUAL PLUGS - PINS & FUNCTIONS J2 - 9 pin AMP Mate-N-Lok J1 - 5 pin AMP Mate-N-Lok Function Function Radio Lt - Back Light/Power Input Speaker Lt - +12 volt input Radio Rt - Amp power...
- Page 4 MONOPLEX SPEAKER SWITCH SERVICE MANUAL 1485 Jacobs Rd. Intellitec Deland, FL 32724 386.738.7307 www.intellitec.com P/N 53-00571-100 Rev. B 032619...
