Intellitec MPX Sofa Service Manual

The MONOPLEX SOFA CONTROL is a centralized power switching controller used to operate

a four way slide/recline power sofa. Power from the battery is fed into this control. In advertent

shorts at this box could result in damage and/or injury.

All servicing of the Monoplex Sofa Control should be done only by a qualified Service

Technician. Inadvertent shorts at this box could result in damage and/or injury.

TOOLS REQUIRED:

Intellitec

www.intellitec.com

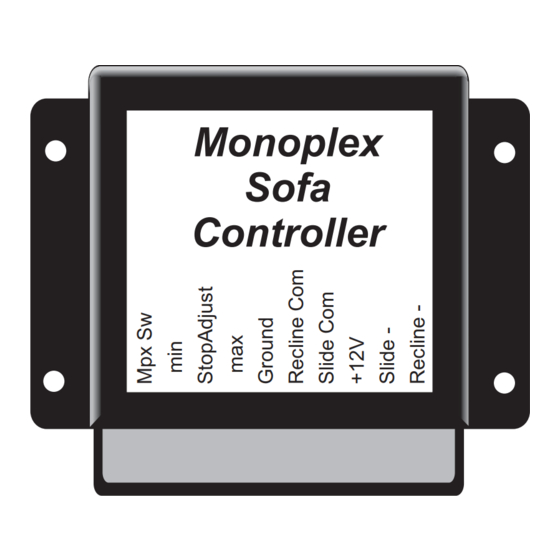

MPX SOFA CONTROLLER

SERVICE MANUAL

Controller

Part Number: 00-00306-000

Low current test light, DC voltmeter

Monoplex

Sofa

CAUTION:

1485 Jacobs Rd.

Deland, FL 32724

386.738.7307

P/N 53-00306-100 Rev. B 032119

Table of Contents

Need help?

Do you have a question about the MPX Sofa and is the answer not in the manual?

Page 1 MPX SOFA CONTROLLER SERVICE MANUAL Monoplex Sofa Controller Part Number: 00-00306-000 The MONOPLEX SOFA CONTROL is a centralized power switching controller used to operate a four way slide/recline power sofa. Power from the battery is fed into this control. In advertent shorts at this box could result in damage and/or injury.
Page 2 MPX SOFA CONTROLLER SERVICE MANUAL PRODUCT DESCRIPTION MONOPLEX SOFA CONTROL is intended for use in conversion vehicles to control the operation of a two way or four way, slide-recline power sofa. It allows easy wiring of multiple switches and provides electronic shutdown at the end of travel to prevent annoying circuit breaker or fuse openings.
Page 3 MPX SOFA CONTROLLER SERVICE MANUAL TROUBLE SHOOTING The controller contains three relays to drive the two motors in both directions (See Figure 1). A simple test to see if the controller is operating can be done by disconnecting the sofa motors, pressing a switch, and listening to the relays. At each press of a switch, at least one relay should click.
Page 4 MPX SOFA CONTROLLER SERVICE MANUAL 1485 Jacobs Rd. Intellitec Deland, FL 32724 386.738.7307 www.intellitec.com P/N 53-00306-100 Rev. B 032119...

00-00306-000
