NOTE: The MONOPLEX SPEAKER SWITCH is a centralized audio switching center.
Power from both the ignition and battery is fed into the module. The power of
the battery is available at this box. Inadvertent shorts at this box could result in
damage and/or injury. All servicing of this box should be done only by a qualified
Service T echnician.
T ools required: Low current T est Light, Accurate Voltmeter (digital read-out preferred)
INTELLITEC
www.intellitec.com

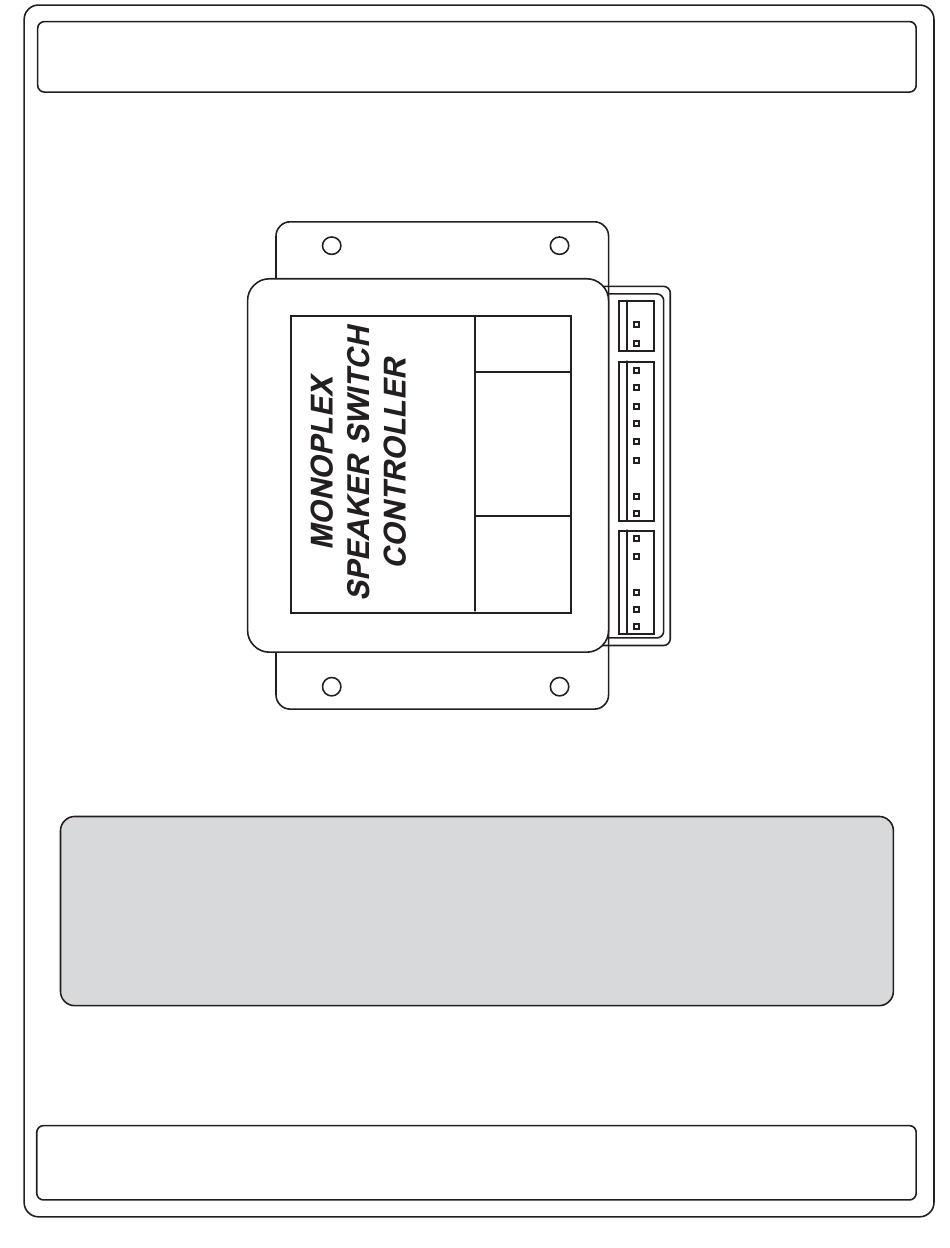

Monoplex Speaker Switch
SERVICE MANUAL
Intellitec Part No. 00-00348-000
1 KEY
2 TV GRND
3 TV SOUND
1 L SPKR -
2 L RAD -
3 L SPKR +
4 L RAD +
5 R SPKR +
6 R SPKR -
7 KEY
8 R RAD +
9 R RAD -
1 PNL LTS
2 TV PWR
3 KEY
4 SPKR SW
5 AMP PWR
6 GROUND
1485 Jacobs Rd.
Deland, FL 32724
386.738.7307
1
pin1
J3
pin1
J2
pin1
J1
53-00348-100 REV. B 032519
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitec Monoplex
Summary of Contents for Intellitec Monoplex
- Page 1 6 GROUND Intellitec Part No. 00-00348-000 NOTE: The MONOPLEX SPEAKER SWITCH is a centralized audio switching center. Power from both the ignition and battery is fed into the module. The power of the battery is available at this box. Inadvertent shorts at this box could result in damage and/or injury.
- Page 2 PRODUCT DESCRIPTION The MONOPLEX Speaker Switch is intended to be used in conversion vehicles to switch the rear speak- ers from a radio to the TV. This allows the TV sound to be brought out through the rear speakers. The module is designed to work with an audio amplifier that has a control input that turns the amplifier on or off.
- Page 3 Monoplex Speaker Switch PLUGS - PINS & FUNCTIONS J2 - 9 pin J1 - 6 pin Function Function Left Speaker - Power Input Left Radio - TV Power Input Left Speaker + Left Radio + Speaker Switch Right Speaker +...
- Page 4 Monoplex Speaker Switch 1485 Jacobs Rd. INTELLITEC Deland, FL 32724 386.738.7307 www.intellitec.com 53-00348-100 REV. B 032519...
