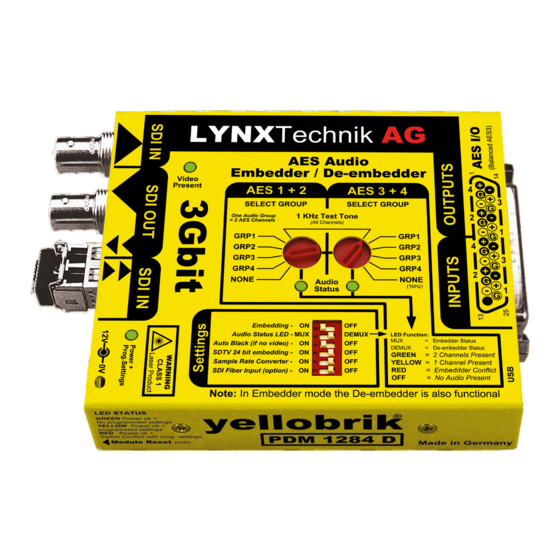

yellobrik
PDM 1284 D
AES Audio Embedder / De-embedder

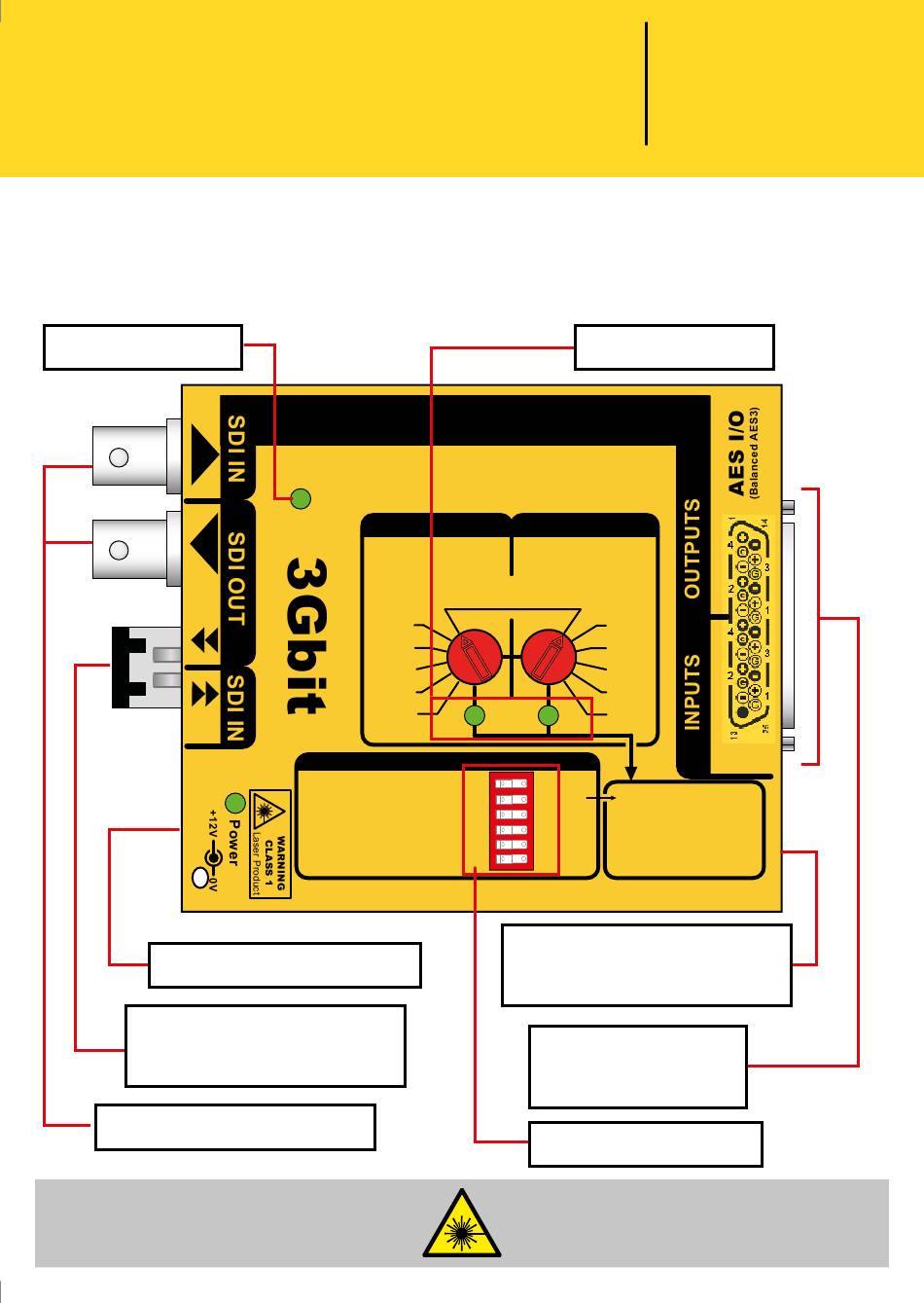

Video Present
Power Input (+12V)
Fiber Input / Output
(Option)
SDI Input / Output
WARNING
CLASS 1M LASER PRODUCT
LYNXTechnik
AES Audio
Embedder / De-embedder
Video
AES 1 + 2
Present
Select Group
One Audio Group
= 2 AES Channels
GRP1
GRP2
GRP3
GRP4
NONE
Embedding -
Audio Status LED - MUX
Auto Black (if no video) -
SDTV 24 Bit embedding -
Sample Rate Converter -
SDI Fiber Input (option) -
NOTE: in Embedder mode the De-embedder is also functional
®
Audio Status
AG
AES 3 + 4
Select Group
1 kHz Test Tone
(All Channels)
GRP1
GRP2
GRP3
GRP4
Audio
NONE
Status
OFF
ON
LED Function:
DEMUX
Mux
OFF
ON
Demux = Deembedder Status
OFF
ON
GREEN = 2 Channels Present
OFF
ON
YELLOW = 1 Channel Present
OFF
ON
RED
OFF
USB Input
(for firmware upgrades)
Balanced AES
Input / Output
Module Settings
Laser Radiation
Do not look directly into emitter
with optical instruments
Quick
Reference
= Embedder Status
= Embedder Conflict
= Audio Not Present
Advertisement
Table of Contents
Related Manuals for Lynx yellobrik PDM 1284 D
Summary of Contents for Lynx yellobrik PDM 1284 D
- Page 1 yellobrik Quick ® Reference PDM 1284 D AES Audio Embedder / De-embedder Video Present Audio Status LYNXTechnik AES Audio Embedder / De-embedder Video AES 3 + 4 AES 1 + 2 Present Select Group Select Group One Audio Group = 2 AES Channels 1 kHz Test Tone (All Channels) GRP1...
- Page 2 Connections All connections are clearly indicated on the module. AES audio I/O connections can be made two ways, by directly wiring connections to a suitable male 25pin SubD connector, or by using a RBO 5025 optional 25pin SubD PCB adapter with screw RBO 5025: 25 Pin SubD Adapter PCB with terminals.
- Page 3 Cascading Modules If more than 2 x AES channels are required then its possible to cascade multiple modules. Take the SDI out from one module and connect to the input of another module and select a different audio group. Up to 4 modules can be cascaded to embed the full 8 x AES audio payload into a single SDI stream.
- Page 4 AES group selection provided via rotary switch Power +12VDC @ 4.2W nominal - ( supports 8 - 14VDC input range ) We are constantly adding more yellobrik modules. Please visit our website for the latest product updates. www.lynx-technik.com LYNXTechnik Broadcast Television Equipment...
