User manual
METER

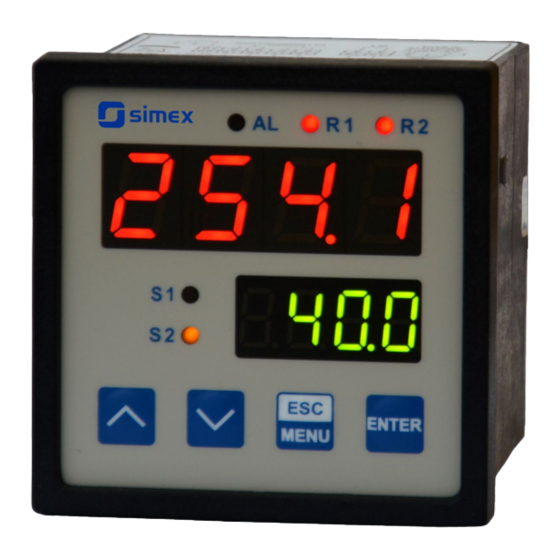

SRT-77-XA
Assisting the automation
industry since 1986
SRT-77-XA_INSSXEN_v.2.11.001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simex SRT-77-XA
Summary of Contents for Simex SRT-77-XA

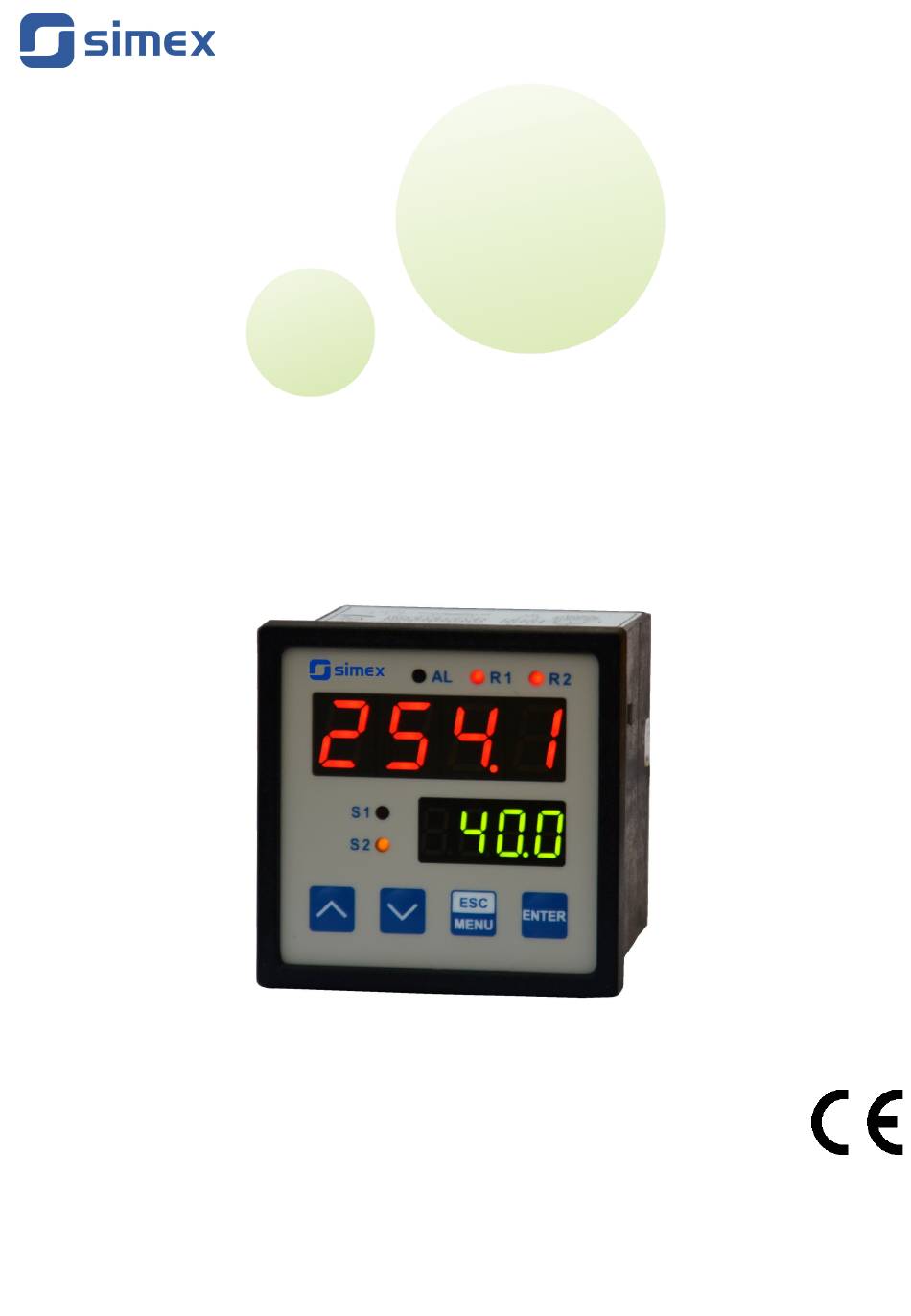

- Page 1 Assisting the automation industry since 1986 User manual METER SRT-77-XA Firmware: v.5.18 or higher • Input type: TC K/S/J/T/N/R/B/E • Double display • Read the user's manual carefully before starting to use the unit or software. Producer reserves the right to implement changes without prior notice.
-
Page 2: Table Of Contents
User manual - METER SRT-77-XA CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY..................3 2. GENERAL CHARACTERISTICS........................4 3. TECHNICAL DATA............................4 4. DEVICE INSTALLATION..........................6 4.1. UNPACKING............................6 4.2. ASSEMBLY............................7 4.3. CONNECTION METHOD........................9 4.4. MAINTENANCE..........................13 5. FRONT PANEL DESCRIPTION........................13 6. PRINCIPLE OF OPERATION........................14 6.1. MEASUREMENT MODE........................14... -
Page 3: Basic Requirements And User Safety
User manual - METER SRT-77-XA Explanation of symbols used in the manual: - This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction. -
Page 4: General Characteristics
2. GENERAL CHARACTERISTICS The SRT-77-XA meter is equipped with thermocouple input (K, S, J, T, N, R, B, E). The measurement range depends on connected thermocouple type. Measurement is linearised by the polynomial characteristics referred to particular thermocouples and temperature of cold ends is compenssated automatically. - Page 5 User manual - METER SRT-77-XA Measurement range -200˚C ÷ +1370˚C -50˚C ÷ +1768˚C -210˚C ÷ +1200˚C -200˚C ÷ + 400˚C -200˚C ÷ +1300˚C -50˚C ÷ +1768˚C +250˚C ÷ +1820˚C -200˚C ÷ +1000˚C Voltage: -10mV ÷ 90mV Measurement accuracy ± 0,1% @ 25°C; ± one digit Accuracy of cold ends temperature ±...
-
Page 6: Device Installation
User manual - METER SRT-77-XA Safety requirements according to: PN-EN 61010-1 installation category: II pollution degree: 2 voltage in relation to ground: 300V AC insulation resistance: >20MW insulation strength between power supply and input/output terminal: 1min. @ 2300V insulation strength between relays terminal: 1min. -
Page 7: Assembly
User manual - METER SRT-77-XA 4.2. ASSEMBLY - The unit is designed for mounting inside housings (control panel, switchboard) insuring appropriate protection against surges and interference. Metal housings must be connected to ground in a way that complies with the governing regulations. - Page 8 User manual - METER SRT-77-XA 68 mm max. 5 mm Figure 4.1. Mounting hole dimensions: a) recommended b) allowable 92 mm 12 mm 10 mm 5 mm Figure 4.2. Installing of brackets, and dimensions of connectors.
-
Page 9: Connection Method
User manual - METER SRT-77-XA 91 mm Figure 4.3. Minimum distances when assembly of a number of units 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel . During installation all available safety requirements should be considered. The fitter is responsible for executing the installation according to this manual, local safety and EMC regulations. - Page 10 User manual - METER SRT-77-XA - If the unit is equipped with housing, covers and sealing to, protecting against water intrusion, pay special attention to their correct tightening or clamping. In the case of any doubt consider using additional preventive measures (covers, roofing, seals, etc.).
- Page 11 User manual - METER SRT-77-XA +24V +5%, -10% RS - 485 Power max = 100mA (optional) supply DATA+ (depending on version) DATA- 13 14 18 19 20 6 7 8 9 GND GND optional) Figure 4.5. Terminals description (relay outputs)
- Page 12 User manual - METER SRT-77-XA 13 14 FUSE FUSE Depending on version: 85...230...260V AC/DC or 19...24...50V DC; 16...24...35V AC Figure 4.7. Connection of power supply and relays Contacts of relay outputs are not equipped with spark suppressors. While use the relay outputs for switching of inductive loads (coils, contactors, power relays, electromagnets, motors etc.) it is required...
-
Page 13: Maintenance
User manual - METER SRT-77-XA 16 17 16 17 Logic controller LED 10 mA voltage input 24 V Figure 4.9. Example of OC-type outputs connection 4.4. MAINTENANCE The unit does not have any internal replaceable or adjustable components available to the user. -
Page 14: Principle Of Operation
Configuration of the device (via menu or RS-485 interface) do not stops measures . 6.2. DETECTION OF THE PEAK VALUES The SRT-77-XA controller is equipped with peaks detection function. It can detect a peaks of the input signal and display their values. Presets connected with this function are... -
Page 15: Control Of The Relay Outputs
User manual - METER SRT-77-XA placed in ”HOLd” menu (see description of ”HOLd” menu). The detection of the peak can be done if the measured signal raises and drops of value at least equal to parameter ”PEA”. Detected peaks are displayed during the time defined by parameter ”timE” . If a new peak will be detected while one is displayed, this new peak will be displayed and display time counter will be cleared (Figure 6.1). - Page 16 User manual - METER SRT-77-XA state of relay/LED ”SEtP” parameter zone B zone A measure ”HYSt” parameter Figure 6.2. One threshold control of the relay/LED outputs state of relay/LED ”SEtP” or ”SEt2” parameter zone B zone B zone A measure ”HYSt”...
-
Page 17: One Threshold Mode
User manual - METER SRT-77-XA 6.3.1. One threshold mode Figure 6.4 presents the principle of relay outputs operation for one threshold mode, and an example values of other parameters. measured “SEtP” parameter displayed value signal (expected signal value) zone A “HYSt”... -
Page 18: Two Thresholds Mode
User manual - METER SRT-77-XA (when input signal stay in zone A or zone B) are lower than parameters “t on” If t or t or “toFF”, the relay will not change his state (see points A and C, Figure 6.4 a, d, e). -
Page 19: Device Programming
User manual - METER SRT-77-XA Figure 6.5 presents the principle of relay outputs operation for two thresholds mode, and an example values of other parameters. In this mode parameter “SEt2” is accessible in common with “SEtP” , this parameter describes a second threshold of the relay output. The parameters “HYSt”, “modE”, “t on”, “toFF”, “unit”... -
Page 20: Parameters Edition
User manual - METER SRT-77-XA Functions of the buttons while sub-menu and parameters choice: Selection of sub-menu or parameter for editing. Name of selected item (sub- menu or parameter) is displayed. Operation of [ENTER] button depend on present menu position: ENTER •... -
Page 21: Switch Parameters ("List" Type)
User manual - METER SRT-77-XA can be used. If [^] is pressed shortly (and button [v] is still pressed), decreasing slow down for a moment only, if [^] is pressed and held while button [v] is still pressed the decreasing slow down and will be kept on lower speed. -
Page 22: Rel1" Menu
User manual - METER SRT-77-XA 7.3.1. “rEL1” menu This menu allows to configure the operation mode of relays and LEDs marked „ R ” (e.g. „ R1 ”). After menu ”rEL1” or ”rEL2” is entered, proper LED is being on (S1 or S2), signalising the relay/threshold related to entered menu. - Page 23 User manual - METER SRT-77-XA and “SEt2” thresholds, the lower threshold” means lower one of “SEtP” and “SEt2” thresholds. “out” - two threshold mode, relay is turned ON when the input value is bigger than “bigger threshold + HYSt” and lower than “lower threshold –...
-
Page 24: Inpt" Menu
User manual - METER SRT-77-XA input signal drops, result value of the measure will change slow, causes of turning on or off relay due to thresholds values. The critical situation is slowly detected, so it is impossible to predict the relay state in that situations. -
Page 25: Hold" Menu
User manual - METER SRT-77-XA 7.3.4. ”HOLd” menu This menu contains parameters connected with peak detection function. See also full description of the peak detection function in paragraph: DETECTION OF THE PEAK VALUES “modE” - the type of detected changes of the input signal, can be set to values: “PEA”... - Page 26 User manual - METER SRT-77-XA ”Addr” - this parameter defines the address of the device, accordingly to Modbus protocol. It can be set in range from 0 to 199. If the value 0 is set then device, responds to frames with address 255 (FFh).
-
Page 27: Edit" Parameter
User manual - METER SRT-77-XA 7.3.7. ”Edit” paramet er This parameter allows to change the edition mode of numerical parameters: ”dig” - the change to “by digit” mode, ”Slid” - slide change mode. 7.3.8. ”dEFS” parameter This setting allows to restore the factory settings of the device. To get the access to this option special password is required: „5465”, next the device displays acknowledge question... -
Page 28: Menu Structure
User manual - METER SRT-77-XA 7.4. MENU STRUCTURE Measurement mode Press and hold at least 2 seconds MENU MENU 4-digit user password entering (if it is different from „0000”) 0 _ _ _ ENTER ENTER ENTER Parameter MENU rEL1 SEtP... - Page 29 User manual - METER SRT-77-XA See previous page ENTER ENTER Parameter MENU modE HOLd edition ENTER MENU timE Hdis MENU H r1 H r2 ENTER ENTER Parameter MENU SECu Scod edition ENTER MENU A r1 MENU A r2 ENTER ENTER...
-
Page 30: The Alarm Led
User manual - METER SRT-77-XA 8. THE ALARM LED Alarm LED (AL) lights in cases: • exceeding of permissible measurement range • detection of sensor malfunction (break of measurement circuit) 9. THE MODBUS PRO TOCOL HANDLING Transmission parameters: 1 start bit, 8 data bits, 1 or 2 stop bit (2 bits are send, 1 and 2 bits... - Page 31 User manual - METER SRT-77-XA Register Write Range Register description 0 ÷ 199 Device address 22B9h Device identification code (ID) “bAud” parameter in “rS” menu (baud rate); 0 ÷ 7 0 - 1200 baud; 1 - 2400 baud; 2 - 4800 baud; 3 - 9600 baud;...
-
Page 32: Transmission Errors Description
User manual - METER SRT-77-XA Register Write Range Register description “toFF” parameter in “rEL2” menu, expressed in tenth of seconds 0 ÷ 999 or tenth of minutes depend on “unit” parameter - register no. 3Dh) “unit” parameter in “rEL2” menu: 0 ÷... -
Page 33: Examples Of Query/Answer Frames
Data byte count in answer frame DATA H,L Data byte (Hi and Lo byte) CRC L,H CRC error check (Hi and Lo byte) 1. Read of the displayed value (measurement), SRT-77-XA device address = 01h: ADDR FUNC REG H,L COUNT H,L... - Page 34 User manual - METER SRT-77-XA 3. Change of the device address from 1 to 2 (write to reg. 20h) ADDR FUNC REG H,L DATA H,L CRC L,H DATA H - 0 DATA L - new device address (2) The answer (the same as the message):...
-
Page 35: Default And User's Settings List
User manual - METER SRT-77-XA 10. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Parameters of relay R1 operation (“rEL1” menu) SEtP Relay R1 threshold 20.0 SEt2 Relay R1 second threshold 40.0 HYSt Hysteresis of relay R1... - Page 36 User manual - METER SRT-77-XA Desc. Parameter Description Default value User's value page Permission to changes of relay R1 threshold A r1 without of the user password knowledge Permission to changes of relay R2 threshold A r2 without of the user password knowledge RS 485 interface configuration (menu “rS”)
- Page 37 User manual - METER SRT-77-XA...
- Page 38 User manual - METER SRT-77-XA...
- Page 39 User manual - METER SRT-77-XA...
- Page 40 SIMEX Sp. z o.o. ul. Wielopole 11 80-556 Gdańsk Poland tel.: (+48 58) 762-07-77 fax: (+48 58) 762-07-70 http://www.simex.pl e-mail: info@simex.pl...
