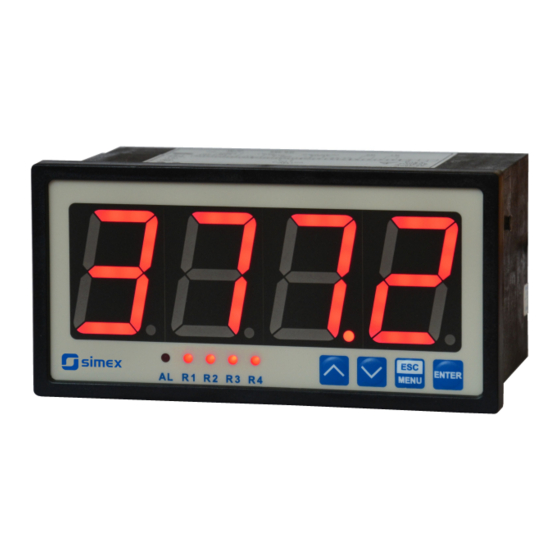

Simex SRT-147-XA User Manual

Meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Firmware: v.5.18 or higher
•
Input type: TC K/S/J/T/N/R/B/E
•
Large 4 x 38 mm display
•
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
2018.12.20
User manual
METER
SRT-147-XA
Assisting the automation
industry since 1986
SRT-147-XA_INSSXEN_v.2.12.001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT-147-XA and is the answer not in the manual?

Questions and answers

Related Manuals for Simex SRT-147-XA

Summary of Contents for Simex SRT-147-XA

  • Page 1 Assisting the automation industry since 1986 User manual METER SRT-147-XA Firmware: v.5.18 or higher • Input type: TC K/S/J/T/N/R/B/E • Large 4 x 38 mm display • Read the user's manual carefully before starting to use the unit or software.

  • Page 2: Table Of Contents

    User manual - METER SRT-147-XA CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY..................3 2. GENERAL CHARACTERISTICS........................4 3. TECHNICAL DATA............................4 4. DEVICE INSTALLATION..........................6 4.1. UNPACKING............................6 4.2. ASSEMBLY............................7 4.3. CONNECTION METHOD........................8 4.4. MAINTENANCE..........................13 5. FRONT PANEL DESCRIPTION........................13 6. PRINCIPLE OF OPERATION........................14 6.1. MEASUREMENT MODE........................14...

  • Page 3: Basic Requirements And User Safety

    User manual - METER SRT-147-XA Explanation of symbols used in the manual: - This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction.

  • Page 4: General Characteristics

    2. GENERAL CHARACTERISTICS The SRT-147-XA meter is equipped with thermocouple input (K, S, J, T, N, R, B, E). The measurement range depends on connected thermocouple type. Measurement is linearised by the polynomial characteristics referred to particular thermocouples and temperature of cold ends is compenssated automatically.
  • Page 5 User manual - METER SRT-147-XA Measurement range -200˚C ÷ +1370˚C -50˚C ÷ +1768˚C -210˚C ÷ +1200˚C -200˚C ÷ + 400˚C -200˚C ÷ +1300˚C -50˚C ÷ +1768˚C +250˚C ÷ +1820˚C -200˚C ÷ +1000˚C Voltage: -10mV ÷ 90mV Measurement accuracy ± 0,1% @ 25°C; ± one digit Accuracy of cold ends temperature ±...

  • Page 6: Device Installation

    User manual - METER SRT-147-XA Safety requirements according to: PN-EN 61010-1 installation category: II pollution degree: 2 voltage in relation to ground: 300V AC insulation resistance: >20MW insulation strength between power supply and input/output terminal: 1min. @ 2300V insulation strength between relays terminal: 1min.

  • Page 7: Assembly

    User manual - METER SRT-147-XA 4.2. ASSEMBLY - The unit is designed for mounting inside housings (control panel, switchboard) insuring appropriate protection against surges and interference. Metal housings must be connected to ground in a way that complies with the governing regulations.

  • Page 8: Connection Method

    User manual - METER SRT-147-XA 82 mm 5 mm 12 mm 10 mm Figure 4.2. Installing of brackets, and dimensions of connectors. 163 mm Figure 4.3. Minimum distances when assembly of a number of units 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel . During installation all available safety requirements should be considered.
  • Page 9 User manual - METER SRT-147-XA - The power supply network cable diameter must be selected in such a way that in the case of a short circuit of the cable from the side of the unit the cable shall be protected against destruction with an electrical installation fuse.
  • Page 10 User manual - METER SRT-147-XA not be run with cables with interference (e.g. circuits controlling relays or contactors). Connections of power supply voltage and measurement signals are executed using the screw connections on the back of the unit’s housing. 6-7 mm Figure 4.4.
  • Page 11 User manual - METER SRT-147-XA +24V +5%, -10% Power max = 100mA supply (depending on version) 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 DATA- DATA+ (optional) (optional) (optional) (optional) OC1 ÷ OC4: U...
  • Page 12 User manual - METER SRT-147-XA 3 4 5 6 7 8 9 10 FUSE FUSE Depending on version: 85...230...260V AC/DC or 19...24...50V DC; 16...24...35V AC Figure 4.9. Connection of power supply and relays 11 12 11 12 Logic controller LED 10 mA...

  • Page 13: Maintenance

    User manual - METER SRT-147-XA 4.4. MAINTENANCE The unit does not have any internal replaceable or adjustable components available to the user. Pay attention to the ambient temperature in the room where the unit is operating. Excessively high temperatures cause faster ageing of the internal components and shorten the fault-free time of the unit's operation.

  • Page 14: Principle Of Operation

    Configuration of the device (via menu or RS-485 interface) do not stops measures . 6.2. DETECTION OF THE PEAK VALUES The SRT-147-XA controller is equipped with peaks detection function. It can detect a peaks of the input signal and display their values. Presets connected with this function are placed in ”HOLd”...

  • Page 15: Control Of The Relay Outputs

    User manual - METER SRT-147-XA measure ”timE” ”timE” ”PEA” ”PEA” time real measurement result display value Figure 6.1. Process of peaks detection 6.3. CONTROL OF THE RELAY OUTPUTS The control of the object (measured signal) is realized via relay outputs. Front panel LEDs named „R”...
  • Page 16 User manual - METER SRT-147-XA state of relay/LED ”SEtP” parameter zone B zone A measure ”HYSt” parameter Figure 6.2. One threshold control of the relay/LED outputs state of relay/LED ”SEtP” or ”SEt2” parameter zone B zone B zone A measure ”HYSt”...

  • Page 17: One Threshold Mode

    User manual - METER SRT-147-XA 6.3.1. One threshold mode Figure 6.4 presents the principle of relay outputs operation for one threshold mode, and an example values of other parameters. measured “SEtP” parameter displayed value signal (expected signal value) zone A “HYSt”...

  • Page 18: Two Thresholds Mode

    User manual - METER SRT-147-XA (when input signal stay in zone A or zone B) are lower than parameters “t on” If t or t or “toFF”, the relay will not change his state (see points A and C, Figure 6.4 a, d, e).

  • Page 19: Device Programming

    User manual - METER SRT-147-XA Figure 6.5 presents the principle of relay outputs operation for two thresholds mode, and an example values of other parameters. In this mode parameter “SEt2” is accessible in common with “SEtP” , this parameter describes a second threshold of the relay output. The parameters “HYSt”, “modE”, “t on”, “toFF”, “unit”...

  • Page 20: Parameters Edition

    User manual - METER SRT-147-XA Functions of the buttons while sub-menu and parameters choice: Selection of sub-menu or parameter for editing. Name of selected item (sub- menu or parameter) is displayed. Operation of [ENTER] button depend on present menu position: ENTER •...

  • Page 21: Switch Parameters ("List" Type)

    User manual - METER SRT-147-XA down and will be kept on lower speed. Press [ENTER] at least 2 seconds to accept the changes, after that question ”Set?” is displayed, and user must to confirm (or cancel) the changes. To conform changes (and story it in EEPROM) press [ENTER] button shortly after ”SEt?”...

  • Page 22: Rel1" Menu

    User manual - METER SRT-147-XA 7.3.1. “rEL1” menu This menu allows to configure the operation mode of relays and LEDs marked „ R ” (e.g. „ R1 ”). If there are few relay outputs available, then every output has its own configuration menu (e.g.
  • Page 23 User manual - METER SRT-147-XA “out” - two threshold mode, relay is turned ON when the input value is bigger than “bigger threshold + HYSt” and lower than “lower threshold – HYSt”, and turned on when the input signal is contained in the second zone.

  • Page 24: Beep" Menu

    User manual - METER SRT-147-XA detected, so it is impossible to predict the relay state in that situations. • If parameter „AL” = „on”, the relay will be turned on in the critical situations, even if his parameter “modE” = ”noAC”.

  • Page 25: Outp" Menu

    User manual - METER SRT-147-XA Warning: The offseting of a scale is realised independently of cold ends automatic compensation. 7.3.4. ”OutP” menu This menu contains parameters of current output control. Menu is available if the device is equipped witch current output.

  • Page 26: Bri" Parameter

    User manual - METER SRT-147-XA This parameter can be set from 0 to 19.9%. In example on page 31 of the DISPLAY VALUES CALCULATION paragraph the procedure of the current outputs determining is presented in details. “ AL ” - this parameter determines the behaviour of current output if any critical situation occurs.

  • Page 27: Secu" Menu

    User manual - METER SRT-147-XA ”rEAL” - current output operates depend on the current value, ”HOLd” - current output operates depend on the peak (drop) value. 7.3.7. ”SECu” menu This menu contains presets connected with availability of other parameters: “Scod”...

  • Page 28: Edit" Parameter

    User manual - METER SRT-147-XA ”rESP” - this parameter defines minimal (additional) delay between the Modbus message and the answer of the device (received and sent via RS-485 interface). This additional delay allows the device to work with poor RS-converters which do not works properly on baud rates higher than 19200.

  • Page 29: Menu Structure

    User manual - METER SRT-147-XA 7.4. MENU STRUCTURE Measurement mode Press and hold at least 2 seconds MENU MENU 4-digit user password entering (if it is different from „0000”) 0 _ _ _ ENTER ENTER ENTER Parameter MENU rEL1 SEtP...
  • Page 30 User manual - METER SRT-147-XA See previous page ENTER ENTER Parameter MENU modE HOLd edition ENTER MENU timE Hdis MENU H r1 H r2 H r3 H r4 HOUt ENTER ENTER Parameter MENU SECu Scod edition ENTER MENU A r1...

  • Page 31: The Alarm Led

    User manual - METER SRT-147-XA 8. THE ALARM LED Alarm LED (AL) lights in cases: • exceeding of permissible measurement range • detection of sensor malfunction (break of measurement circuit) 9. CURRENT OUTPUT VALUE CALCULATION Let the current output parameters be: “modE”...
  • Page 32 User manual - METER SRT-147-XA Register Write Range Register description Measurement value (no decimal point) easurement range The status of the current measurement; 0h - data valid; A0h - 0h, A0h, 60h top border of the measurement range is exceeded; 60h - bottom border of the measurement range is exceeded;...
  • Page 33 User manual - METER SRT-147-XA Register Write Range Register description “rESP” parameter in “rS” menu (additional response delay); 0 ÷ 5 0 - no additional delay; 1 - ”10c” option; 2 - ”20c” option; 3 - ”50c” option; 4 - ”100c” option; 5 - ”200c” option;...
  • Page 34 User manual - METER SRT-147-XA Register Write Range Register description “toFF” parameter in “rEL2” menu, expressed in tenth of 0 ÷ 999 seconds or tenth of minutes depend on “unit” parameter - register no. 3Dh) “unit” parameter in “rEL2” menu: 0 ÷...
  • Page 35 User manual - METER SRT-147-XA Register Write Range Register description “modE” parameter in “HOLd” menu (type of detected 0 ÷ 1 changes): 0 - peaks; 1 - drops “PEA” parameter in “HOLd” menu (minimum detectable 0 ÷ 9999 change, no decimal point included) “timE”...

  • Page 36: Transmission Errors Description

    Data byte count in answer frame DATA H,L Data byte (Hi and Lo byte) CRC L,H CRC error check (Hi and Lo byte) 1. Read of the displayed value (measurement), SRT-147-XA device address = 01h: ADDR FUNC REG H,L COUNT H,L...
  • Page 37 User manual - METER SRT-147-XA ERROR - error code = 60h, bottom border of the measurement range is exceeded 2. Read of device ID code ADDR FUNC REG H,L COUNT H,L CRC L,H The answer: ADDR FUNC BYTE C DATA H,L...
  • Page 38 User manual - METER SRT-147-XA 5. Read of the registers 1, 2 and 3 in one message (example of reading a number of registries in one frame): ADDR FUNC REG H,L COUNT H,L CRC L,H COUNT L - the count of being read registers (max.16)

  • Page 39: Default And User's Settings List

    User manual - METER SRT-147-XA 11. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Parameters of relay R1 operation (“rEL1” menu) SEtP Relay R1 threshold 20.0 SEt2 Relay R1 second threshold 40.0 HYSt Hysteresis of relay R1...
  • Page 40 User manual - METER SRT-147-XA Desc. Parameter Description Default value User's value page t on Turn on delay of relay R4 toFF Turn off delay of relay R4 unit Unit of “t on”, “toFF” parameters of relay R4 Reaction for critical situation of relay R4 Activation of acoustic signal (menu “bEEP”)
  • Page 41 User manual - METER SRT-147-XA Desc. Parameter Description Default value User's value page Settings of access to the configuration parameters (“SECu” menu) Permission to changes of relay R1 threshold A r1 without of the user password knowledge Permission to changes of relay R2 threshold...
  • Page 42 User manual - METER SRT-147-XA...
  • Page 43 User manual - METER SRT-147-XA...
  • Page 44 SIMEX Sp. z o.o. ul. Wielopole 11 80-556 Gdańsk Poland tel.: (+48 58) 762-07-77 fax: (+48 58) 762-07-70 http://www.simex.pl e-mail: info@simex.pl...
