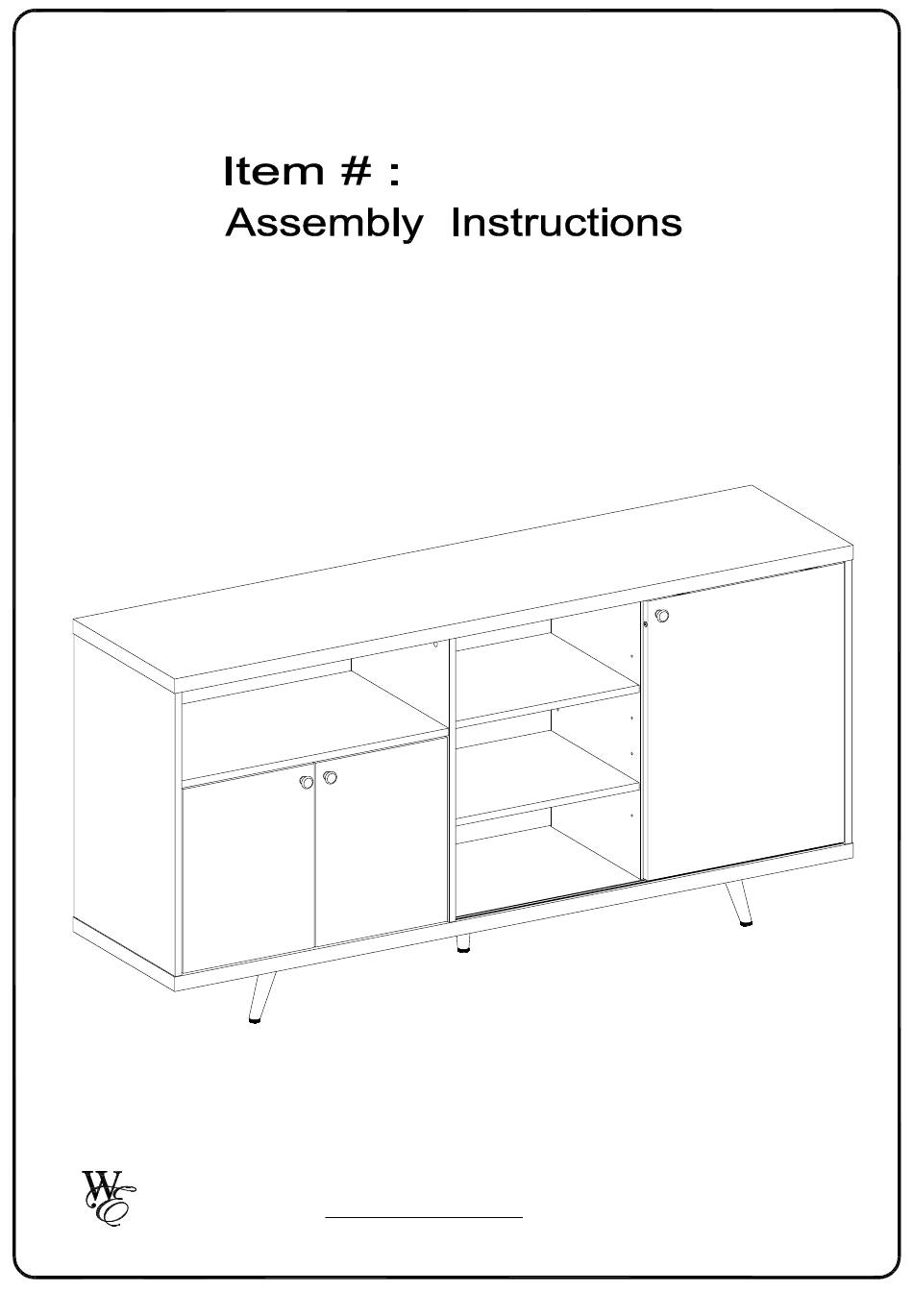

- Page 1 BU60ROG3D Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 06/11/2019(L) Walker Edison ® © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
Concealed hinges are three-way adjustable. Horizontal In-and-Out Vertical by screw adjustment by loosening the hinge-arm Via slots in the mounting mounting screw or via cam plate or via cam adjustment adjustment © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 3: Parts List
Parts List © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Insert wooden dowel (A) into parts (11,13), using screw black (N) attach Door stopper (M) to part (11), then secure cam bolt (B) into part (1) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Insert wooden dowel (A) into parts (3,4,5,6), then secure cam bolt (B) into parts (3,4,5,6) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Step 3 Using cam lock(C) secure parts (5,6) to part (13) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 8 Step 4 Using cam lock(C) secure parts (3,4) to part (11) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 9 Step 5 Put part (8) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 Step 6 Using screw (E) attach part (2) into parts (3,4,5,6) with hex key (F) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
- Page 11 Step 7 Using bolt (G) attach parts (19,20) to part (2) with hex key (F) as per diagram. Note : fully tighten all the bolts . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.11...
- Page 12 Step 8 Put parts (7,9) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.12...
- Page 13 Step 9 Using cam lock (C) secure part (1) to parts (3,4,5,6) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.13...
- Page 14 Step 10 Place sticker (D) cover the holes as per diagram . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.14...
- Page 15 Step 11 Using screw (R) secure plastic wedge (Q) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.15...
- Page 16 Step 12 Insert shelf support pin (V) into parts (3,4,5) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.16...
- Page 17 Step 13 Put parts (12,14) into unit as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.17...
- Page 18 Step 14 Put part (15) into unit as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.18...
- Page 19 Step 15 Using screw (J) attach Europe hinge (H) , handle bolt (L) attach handle (K) into parts (16,17) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.19...
- Page 20 Step 16 Using screw (J) attach Europe hinge (H) into part (3) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.20...
- Page 21 Step 17 Using screw (J) attach Europe hinge (H) into part (4) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.21...
- Page 22 Using screw (U) attach pulley (T,S) to part (18) , secure bolt (P) into part (18) ,then using handle bolt (L) attach handle (K) into part (18) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.22...
- Page 23 Pick up the door (18), and fit the pulley (T) over the slider rails on the bottom panel (2) , then place the pulley (S) into top panel (1) , till it click into pulley (T) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.23...
- Page 24 Step 20 Final Assembly © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.24...
