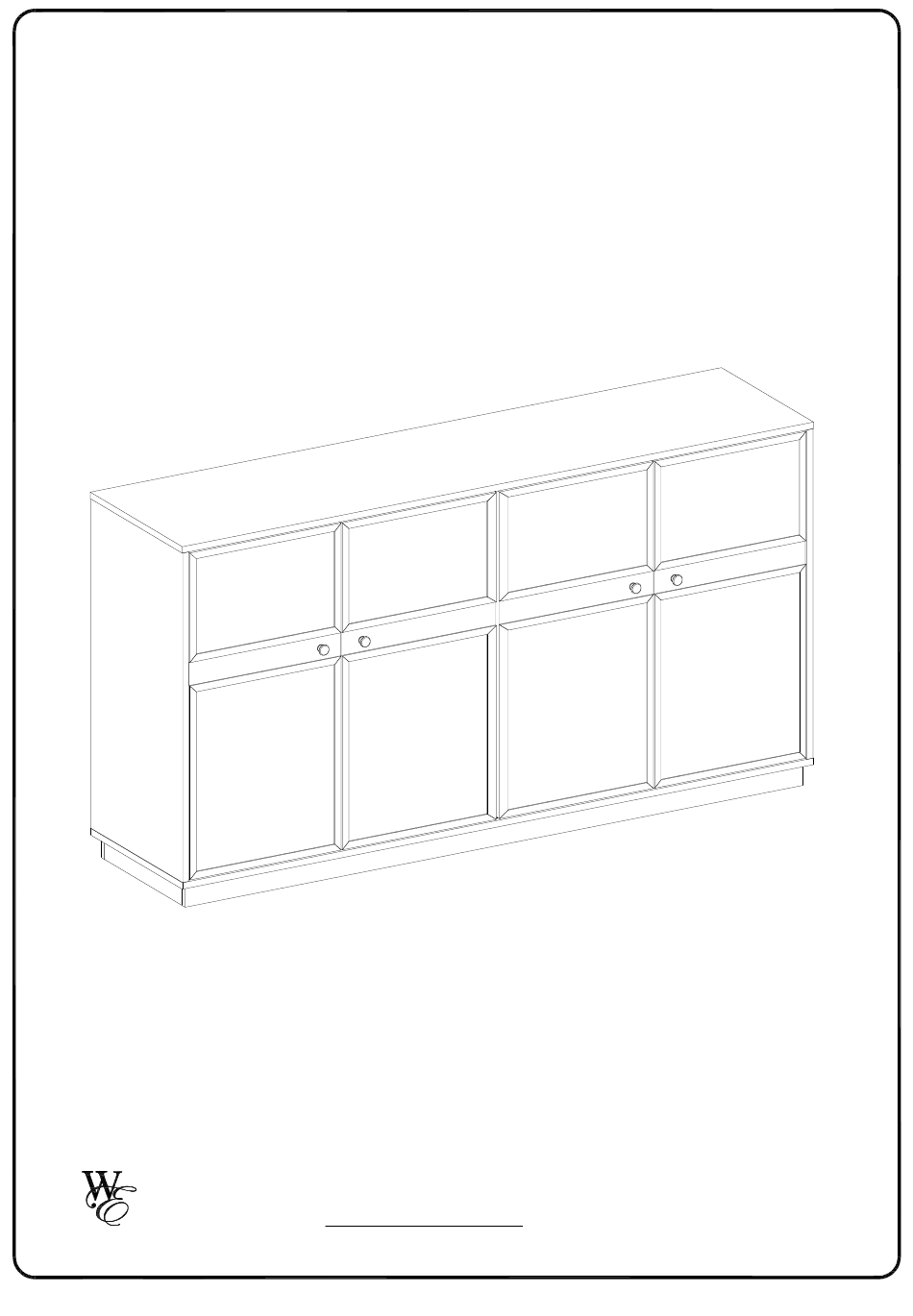

- Page 1 Item # : BU62NOA4D Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 08/07/2020 (I) Walker Edison ® Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 2: General Assembly Guidelines
Concealed hinges are three-way adjustable. Horizontal In-and-Out Vertical by screw adjustment by loosening the hinge-arm Via slots in the mounting plate or via cam adjustment mounting screw or via cam adjustment Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Parts List
Parts List Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 4: Hardware List
Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©... - Page 5 Step 1 Secure cam bolt (B) into parts (1,2), then using screw (F) attach Door stopper (E) to part (1) with with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 6 Step 2 Insert wooden dowel (A) into parts (3,4,5) as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 7 Step 3 Insert wooden dowel (A) into part (13) , then secure cam bolt (B) into part (13) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 4 Using Cam lock(C) secure part (13) to part (12) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Step 5 Using Cam lock(C) secure parts (3,5) to part (1) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 10 Step 6 Using Cam lock(C) secure part (4) to part (1) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.10 ©...
- Page 11 Step 7 Using Cam lock(C) secure parts (3,4,5) to part (2) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.11 ©...
- Page 12 Step 8 Using Cam lock(C) secure parts (12,13) to part (2) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.12 ©...
- Page 13 Step 9 Put parts (6,7) as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.13 ©...
- Page 14 Step 10 Using screw (G) attach parts (6,7) to parts (1,2,3,4) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.14 ©...
- Page 15 Step 11 Place sticker (D) cover the holes as per diagram . Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.15 ©...
- Page 16 (K) in the same level. So the shelf is not titled .Put part (9) into unit as per diagram. Tilt and rest the adjustable shelf(9) onto the shelf support pins . Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.16 ©...
- Page 17 Using screw (N) attach Europe hinge (L) and (M) into parts (10,11) ,then using handle bolt (J) secure handle (H) to parts (10,11) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.17 ©...
- Page 18 Using screw (N) attach Europe hinge (M) to part (5), and screw (N) attach Europe hinge (L) to part (4) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.18 ©...
- Page 19 Using screw (N) attach Europe hinge (M) to part (5), and screw (N) attach Europe hinge (L) to part (3) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.19 ©...
- Page 20 Step 16 Using screw (P) attach Velcro strap (R) into part (6) to part (1) with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.20 ©...
- Page 21 Step 17 Move out the core management hole from part (6) as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.21 ©...
- Page 22 Wall Using screw (Q) attach Velcro strap (R) into Nut (S) to wall with Philips head screwdriver as per diagram. Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.22 ©...
-
Page 23: Final Assembly
Step 19 Final Assembly Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.23 ©...
