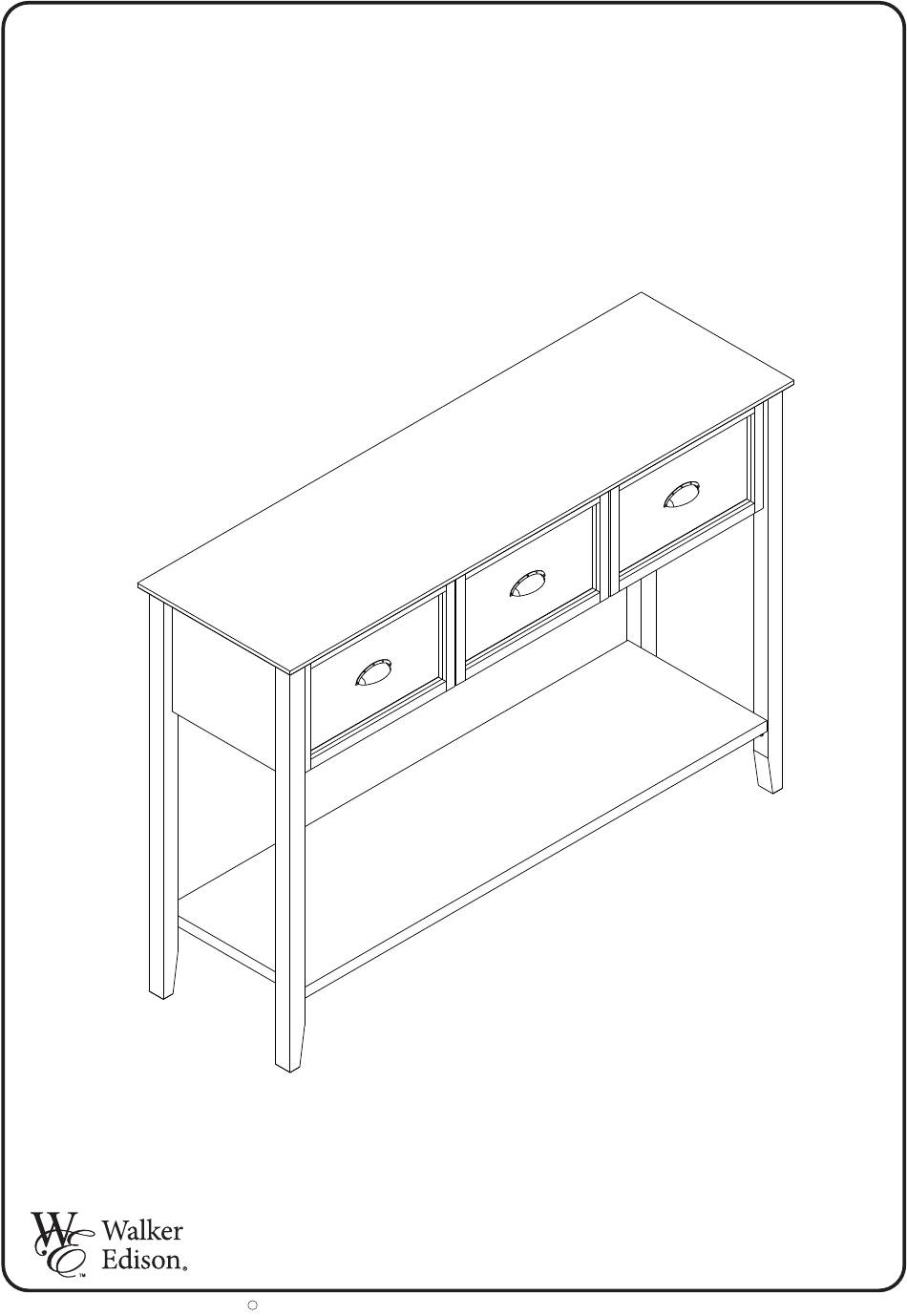

Item #: BU52STRATRO
Assembly Instruction
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 08/2019
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P .1
c
Advertisement
Related Manuals for Walker Edison BU52STRATRO
Summary of Contents for Walker Edison BU52STRATRO
- Page 1 Item #: BU52STRATRO Assembly Instruction Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 08/2019 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P .1...
- Page 3 (3x) P .3...
- Page 4 5,5x28mm Cam Bolt 10 pcs 14x14mm Cam Lock 10 pcs M4x20mm 06 pcs 4,0x3 mm 48 pcs 3,0x16 mm 11 pcs 48 pcs 8,0x30 mm Bracket 04 pcs Knob 03 pcs Drawer Limiter 03 pcs 3,5x30mm 01 pc Plastic Anchor 01 pc Washer 02 pcs...
- Page 5 Step 1 Insert wood dowel ( F ) into parts (2),(5),(7),(8),(9),(10),(14) and (15). (3x) (2x) (3x) Ø 8,0x30 mm Attach Bracket (G) using Screw (E) into part 11. Insert wood dowel. Step 2 ( x) Ø 3,0x16 mm Ø 8,0x30 mm P .5...
- Page 6 Using Screw (D) attach parts 1,3 to 2 and 4,6 to 5. Step 3 (8x) Ø 4,0x30 mm Using Screw (D) attach parts 8,9 to part 7 and part 10 to part 11. Step 4 (8x) Ø 4,0x30 mm P .6...
- Page 7 Step 5 Using Screw (D) attach part 7 to part 1,2,3 and using Screw (E) attach part 11 to part 1,3. (3x) (2x) Ø 4,0x30 mm Ø 3,0x16 mm Attach Parts 4,5,6 to parts 7,11 using Screw (D) and Screw (E). Step 6 (3x) Ø...
- Page 8 Step 7 Attach Cam Bolt (A) to part 12. Attach Drawer Limiter (I) to part 12 using Screw (E). Attach part 12 to body using Cam Locks (B). ( x) (10x) (10x) (2x) 5,5x28 Ø Ø 4,0x30 mm Ø 3,0x16 mm Attach Parts 14,15 to part 13 using Screw (D).
- Page 9 Insert Part 16 into drawer. Attach Part 17 to drawer using Screw (D). Step 9 Attach Knob (H) using Screw (C). (12x) M4x20 mm Ø 4,0x30 mm Use Screw C (x4) to attach Knob H (x4) to the drawers. Step 10...
-
Page 10: Back Panel
Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
