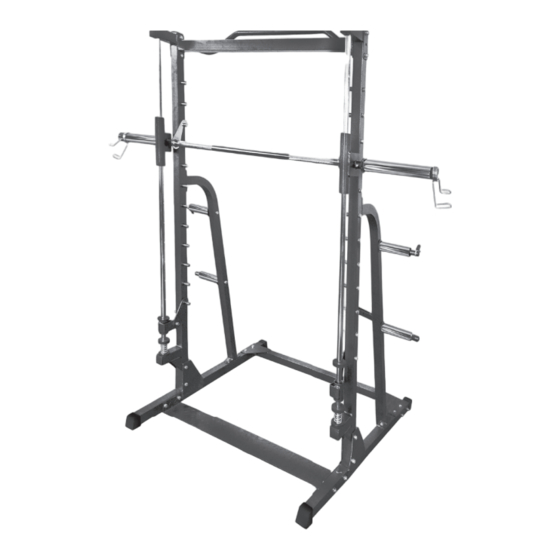

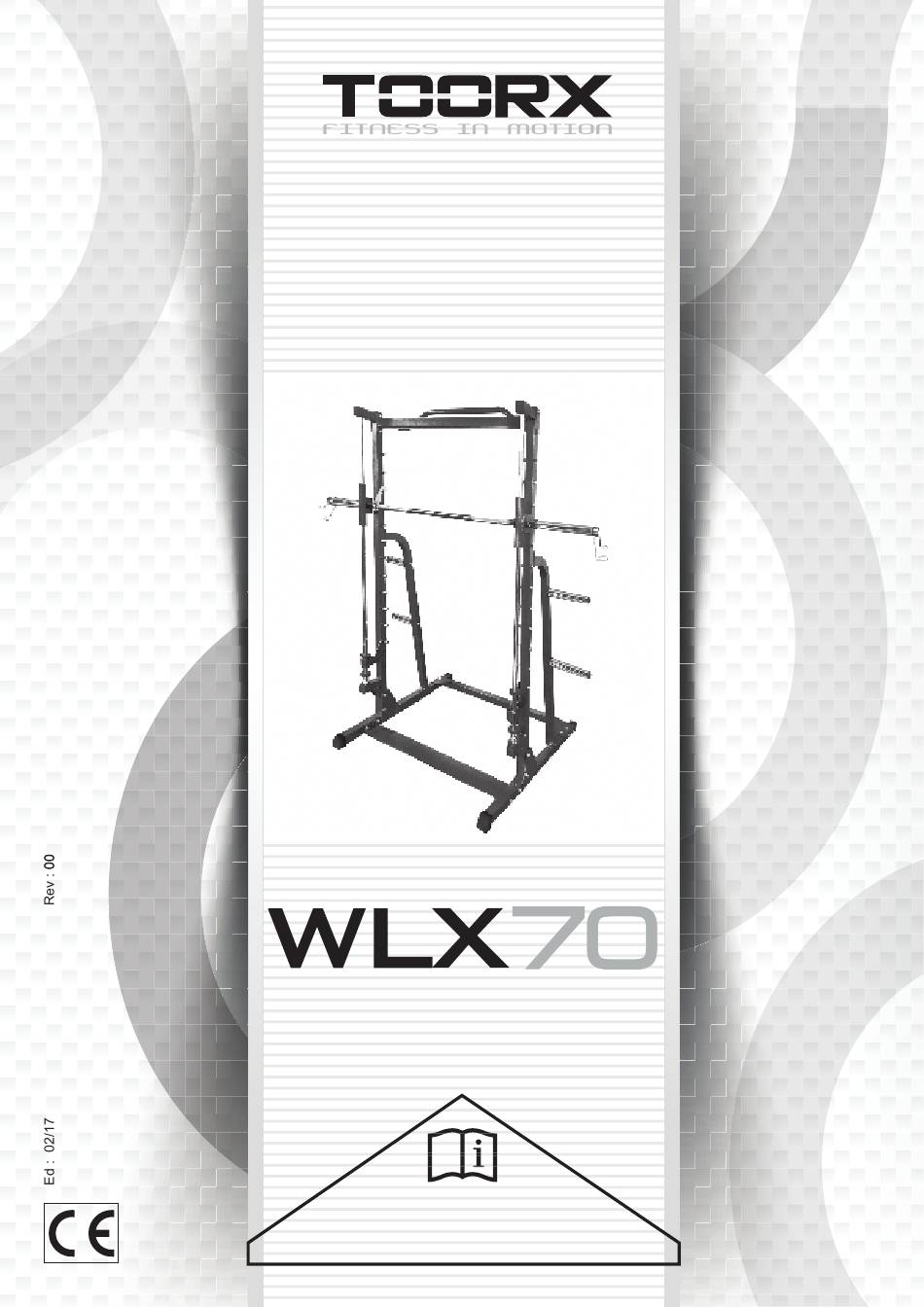

- Page 1 INSTRUCTION...
- Page 2 PART LIST NUMBER NAME COUNT LEFT BASE FRAME RIGHT BASE FRAME BACK BEAM FRAME LEFT UPRIGHT FRAME RIGHT UPRIGHT FRAME LEFT OBLIQUE FRAME RIGHT OBLIQUE FRAME FOOT PLATE TOP CROSS FRAME GUIDE BAR WEIGHT ROD WEIGHT CARRIAGE LEFT SLIDING TUBE RIGHT SLIDING TUBE ROUND BAR BRACERS...
- Page 3 M10X10 SCREWS M8X8 SCREWS M10 ARC WASHER M10 WASHER Φ50MM WASHER Φ38MM WASHER M10 LOCKNUT PART DRAW...
- Page 4 BASE (1)LEFT FRAME BASE (2)RIGHT FRAME (3)BACK BEAM FRAME UPRIGHT (4)LEFT UPRIGHT (5)RIGHT FRAME OBLIQUE (6)LEFT FRAME OBLIQUE (7)RIGHT PLATE (8)FOOT CROSS (9)TOP (10)GUIDE (11)WEIGHT CARRIAGE (12)WEIGHT TUBE SLIDING (13)LEFT TUBE SLIDING (14)RIGHT (15)ROUND ( 1 6 ) B R A C E R S BELL (17)LEFT ( 1 9 ) W E I G H T...
- Page 6 STEP 1 A. ATTACH LEFT BASE FRAME ( 1) AND RIGHT BASE FRAME ( 2) TO BACK BEAM FRAME (3) USING 4PCS M10X70 HEX BOLT (34) , 4PCS M10 ARC WASHER (39) AND 4PCS M10 WASHER (40) . THEN USE 4PCS M10X16 HEX BOLT (36) , 4PCS M10 ARC WASHER (39) AND 4PCS M10 WASHER (40) FROM THE TOP SIDE TO FIX AS SHOW B.
- Page 7 A. ASSEBMLE LEFT UPRIGHT FRAME (4) AND RIGHT UPRIGHT FRAME (5) TO THE BRACKET OF LEFT BASE FRAME ( 1) AND RIGHT BASE FRAME ( 2) USE 4PCS M10X75 HEX BOLT (33) , 8PCS M10 WASHER (40) AND 4PCS M10 LOCKNUT （43） B.
- Page 8 A. ATTACH LEFT OBLIQUE FRAME (6) TO LEFT UPRIGHT FRAME (4) AND LEFT BASE FRAME ( 1) USING 4PCS M10X20 HEX BOLT (35) , 4PCS M10 WASHER (40) . ASSEMBLE RIGHT OBLIQUE FRAME (7) AT THE SAME WAY B. ASSEMBLE 2PCS WEIGHT ROD (11) TO LEFT OBLIQUE FRAME (6) USING 2PCS M10X20 HEX BOLT (35) , 2PCS M10 WASHER (40) .
- Page 9 A. ASSEMBLE GUIDE BAR (10) THROUGH THE HOLE FROM THE TOP SIDE OF RIGHT UPRIGHT FRAME (5), THEN SLIDE RIGHT BARBELL SLIDING SEAT (18) ONTO GUIDE BAR (10), NEXT RUBBER CUSHION (31) , Φ50MM WASHER (41) , SPRING (25) ,AGAIN Φ50MM WASHER (41) , RUBBER CUSHION (31), FINALLY RIGHT SLIDING TUBE （14）, AFTER HAVE ALL THESE PARTS ON AS SHOW , INSERT THE END OF GUIDE BAR (10) INTO THE HOLE AT THE BOTTOM OF RIGHT UPRIGHT FRAME (5) .
- Page 10 STEP5 A. HAVE PARTS OF SLIDE LEFT BARBELL SLIDING SEAT (17), SLIDE RIGHT BARBELL SLIDING SEAT (18) AND BARBELL ROD SLEEVE (21) IN LINE , AND THEN SLIDE BARBELL BAR （20） THROUGH ALL THESE 3 PARTS , USING 2PCS M8X8 SCREW(38) TO FIX THEM AS SHOW B.
- Page 11 STEP 6 OPTION : PUNCH EXPANSION SCREW ( 32) TO THE HOLE ON THE BASE FRAME (1 & 2) , TO FIX THE MACHINE ON THE FLOOR , THEN PUT Φ30 ROUND END PLUG (29) on...
- Page 12 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
