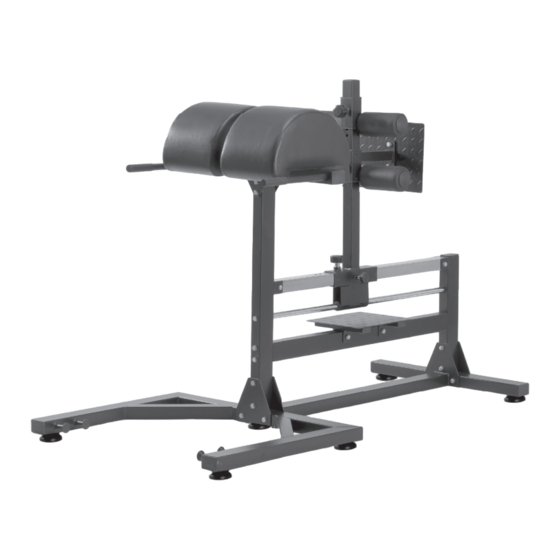

Page 2: Part List
PART LIST NUMBER NAME COUNT FRONT BASE FRAME CONNECTOR PLATE(BIG) CONNECTING BASE FRAME BACK BASE FRAME BACK UPRIGHT FRAME FRONT UPRIGHT FRAME ADJUSTABLE FRAME CONNECTING FRAME SLIDING ROD CANTILEVER CONNECTOR PLATE(SMALL) SLIDE ADJUSTABLE FRAME FOAM ADJUSTABLE FRAME BAFFLE ADJUSTABLE FRAME BAFFLE NONE RUNNING BOARD... - Page 3 M10X80 HEX BOLT M10X75 HEX BOLT M8X45 HEX BOLT M10X20 HEX BOLT M10X16 HEX BOLT M10 WASHER M10 LOCKNUT M8 WASHER M8 LOCKNUT PART DRAW...
- Page 4 BASE (4)BACK UPRIGHT (5)BACK BASE (1)FRONT C O N N E C T O R ( 2 ) ( 3 ) C O N N E C T I N G P L A T E ( B I F R A M E F R A M E F R A M E FRAME...
- Page 6 STEP 1 A. ATTACH CONNETCTING BASE FRAME (3) TO FRONT BASE FRAME (1) WITH CONNECTOR PLATE (BIG)(2) USING TWO PCS M10X65 CARRIAGE BOLT (35) , 4PCS M10 WASHER (42) AND 2PCS M10 LOCKNUT (43) AS SHOWN B. ATTACH BACK BASE FRAME (4) TO CONNETCTING BASE FRAME (3) WITH CONNECTOR PLATE (BIG)(2) USING TWO PCS M10X65 CARRIAGE BOLT (35) , 4PCS M10 WASHER (42) AND 2PCS M10 LOCKNUT (43) AS SHOWN C.
- Page 7 STEP 2 A. ATTACH BACK UPRIGHT FRAME (5) TO ADJUSTABLE FRAME ( 7) USING 1PCS M10X75 HEX BOLT (38) , 2 PCS M10 WASER ( 42) AND 1PCS M10 LOCKNUT (43). INSERT SLIDING ROD (9) THROUGH THE HOLE OF BACK UPRIGHT FRAME (5) USING 1PCS M10X16 HEX BOLT (41) , 1 PCS M10 WASER ( 42) AS SHOW .
- Page 8 STEP3 A. ATTACH THE WHOLE PART FROM STEP 2 (5, 6..) INTO THE BRACEKT OF BASE FRAME (1, 4) USING 4PCS M10X95 HEX BOLT (35) , 8 PCS M10 WASER ( 42) AND 4PCS M10 LOCKNUT (43) B. ASSEMBLE RUNNING BOARD ( 17) ONTO THE ADJUSTABLE FRAME (8) USING 2PCS M10X75 HEX BOLT (38) , 4PCS M10 WASER ( 42) AND 2PCS M10 LOCKNUT (43) AS SHOW...
- Page 9 STEP4 A. SLIDE BAFFLE ADJUSTABLE FRAME (14) AND THEN FOAM ADJUSTABLE FRAME (13) ONTO SLIDE ADJUSTABLE FRAME (12). SCREW POPPIN ( 30) TO ITS POSITION ON BAFFLE ADJUSTABLE FRAME (14) AND FOAM ADJUSTABLE FRAME (13). SLIDE 4PCS FOAM (19) ONTO THE ROUND TUBING AND THEN ATTACH FOAM COVER (27) AT THEIR END.
