For safety purposes please be sure to read and follow the instructions
contained within this manual before pump installation and operation.
TC-X400A □ -M TC-X400S □ -M TC-X400F □ -M TC-X400G □ -M TC-X400V □ -M
TC-X500A □ -M TC-X500S □ -M TC-X500F □ -M TC-X500G □ -M TC-X500V □ -M
TC-X800A □ -M TC-X800S □ -M TC-X800F □ -M TC-X800G □ -M

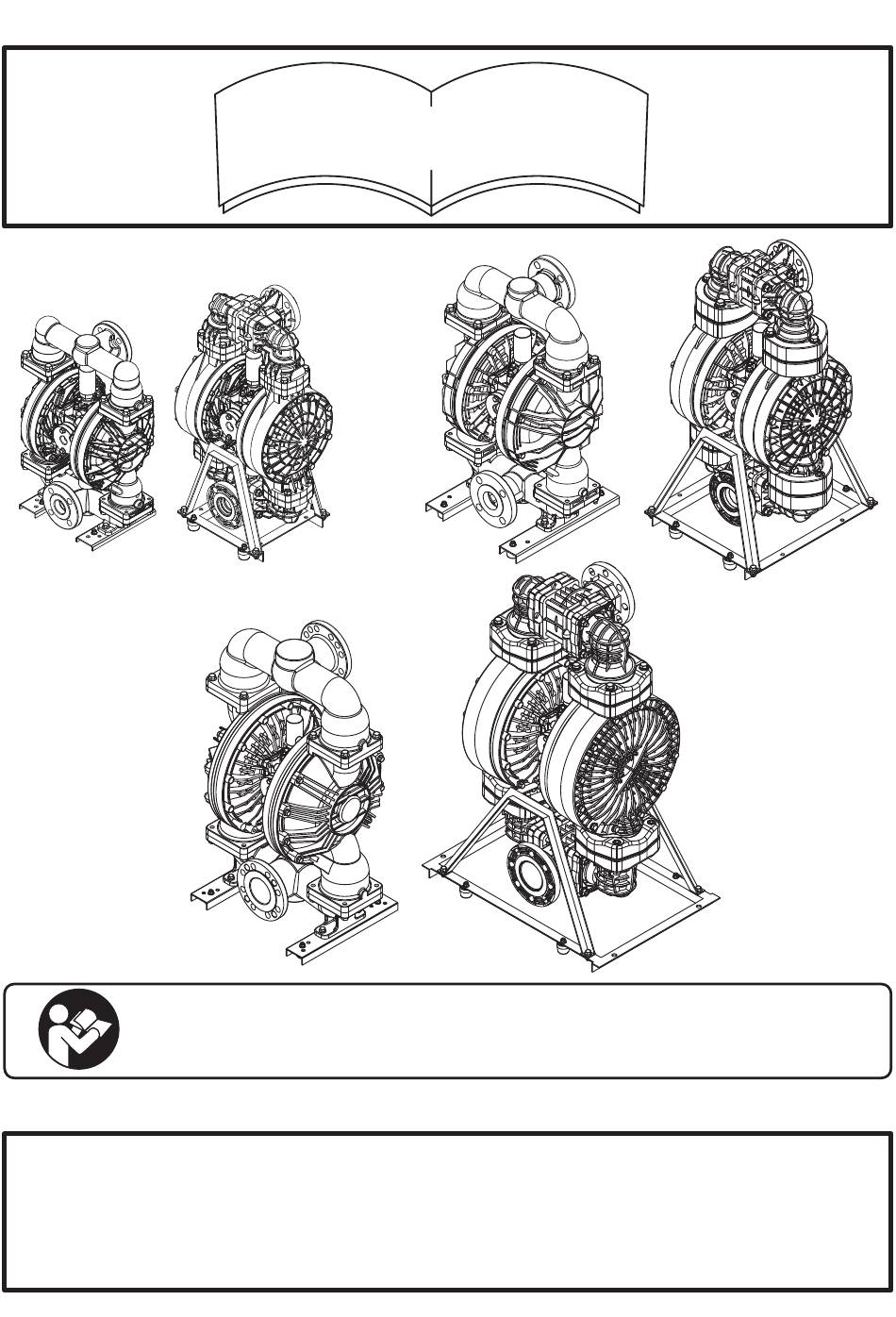

PUMP OPERATION MANUAL
Series Pumps
D529UIE-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IWAKI TC-X400A M Series
Summary of Contents for IWAKI TC-X400A M Series
- Page 1 D529UIE-02 PUMP OPERATION MANUAL For safety purposes please be sure to read and follow the instructions contained within this manual before pump installation and operation. TC-X400A □ -M TC-X400S □ -M TC-X400F □ -M TC-X400G □ -M TC-X400V □ -M TC-X500A □...
-
Page 2: Table Of Contents

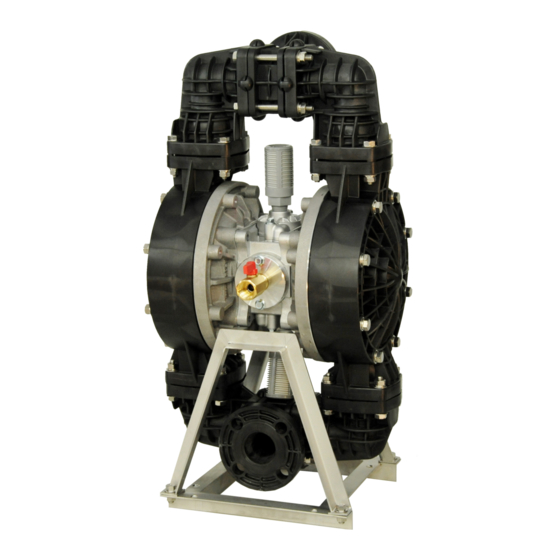

Introduction Thank you for Purchasing this our company Air Operated Double Diaphragm Pump. Diaphragm Pumps fall under the positive-displacement pump category. They are powered by compressed air and transfer liquids through the movement of 2 diaphragms connected by a center shaft. The pump runs through the use of an air switching mechanism which diverts air to each diaphragm in turn on a continuous fashion. -
Page 3: Important Items
Important Items For safe operation ● Before using the pump, be sure to read this document carefully, particularly the "warnings and cautions," and be fully familiar with the correct operating procedures. ● Within this document all the warnings and cautions will be indicated by the following symbols. If you ignore the warning described and operate the product in an improper manner, WARNING there is danger of serious bodily injury or death. -
Page 4: For Safety
For safety WARNING • When using compressed gas (hereinafter referred to as "compressed air") to drive this pump, be sure it is one of the following: 1)Compressed air supplied from an air compressor (To drive this product, use supply air with a minimum moisture content.) 2)Nitrogen (N2) gas The use of compressed air other than those mentioned above may cause air pollution, damage to the pump, or even an explosion. - Page 5 For safety WARNING • Before using this product, be sure you are familiar with the precautions regarding the fluid to be pumped, and verify the corrosion resistance of the parts that will come into contact with the fluid (wetted parts). NEVER use the product with any fluid against which it does not have sufficient corrosion resistance or with a fluid that poses a risk of explosion.
- Page 6 For safety CAUTION ・ If a diaphragm of this product is damaged, the supplied air may mix with the fluid or the fluid may flow into the main body (air- switching portion). If the air supply is inadequate or the pump is contaminated, do NOT operate the pump. ・...
-
Page 7: Product Information
Product information 1.Specifications TC-X400 □ -M Model A □ , A □ J, S □ , S □ J, F □ , F □ J AT, ATJ, ST, STJ, FT, FTJ G □ J, V □ J GTJ, VTJ [A □ N, A □ A, S □ N, S □ A, F □ N, F □ A] [ATN, ATA, STN, STA, FTN, FTA] [G □... -
Page 8: Accessories Included With The Pump
Product information TC-X800 □ -M Model A □ , A □ J, S □ , S □ J, F □ , F □ J AT, ATJ, ST, STJ, FT, FTJ G □ J [A □ N, A □ A, S □ N, S □ A, F □ N, F □ A] [ATN, ATA, STN, STA, FTN, FTA] [G □... -
Page 9: Names Of Parts And Materials
Product information 3.Names of parts and materials Outside view 400A □ ・ S □ ・ F □ Lift Point Out Manifold Out Manifold Ground Connection Point Exhaust Port Airline Ball Valve Silencer Supply Air Port Out Chamber Out Chamber In Manifold In Manifold Base Base... - Page 10 Product information MODEL 400GC □ 400GN □ 400GE □ 400GV □ 400GT □ 400GH □ 400GS □ 400VE □ 400VV □ 400VT □ 400VH □ 400VS □ Pump Wetted Parts PVDF Diaphragm EPDM PTFE TPEE EPDM PTFE TPEE Ball Valve EPDM PTFE EPDM...
- Page 11 Product information Material and weight MODEL 500AC □ 500AN □ 500AE □ 500AV □ 500AT □ 500AH □ 500AS □ 500SC □ 500SN □ 500SE □ 500SV □ 500ST □ 500SH □ 500SS □ Pump Wetted Parts ADC12 ・ AC4C SCS14 Diaphragm EPDM...
- Page 12 Product information 800G □ Lift Point Out Manifold Out Manifold Exhaust Port Ground Connection Point Silencer Airline Ball Valve Supply Air Port Out Chamber Out Chamber In Manifold In Manifold Base Base ： Discharge Port ： Suction Port Material and weight MODEL 800AC □...
-
Page 13: Dimensions
Product information 4.Dimensions 400A □ [400A □ N] ・ 400S □ [400S □ N] 400A □ J [400A □ A] ・ 400S □ J [400S □ A] 400 Ｆ□ [400F □ N] 400 Ｆ□ J [400F □ A] 400G □ J [400G □ A] ・ 400V □ J [400V □ A] LIQUID MODEL (i1) - Page 14 Product information 500A □ [500A □ N] ・ 500S □ [500S □ N] 500A □ J [500A □ A] ・ 500S □ J [500S □ A] 500 Ｆ□ [500F □ N] 500 Ｆ□ J [500F □ A] 500G □ J [500G □ A] ・ 500V □ J [500V □ A] LIQUID MODEL (i1)
- Page 15 Product information 800A □ J [800A □ A] ・ 800S □ J [800S □ A] 800A □ [800A □ N] ・ 800S □ [800S □ N] 800 Ｆ□ J [800F □ A] 800 Ｆ□ [800F □ N] 800G □ J [800G □ A] LIQUID MODEL INLET...
-
Page 16: Performance Curves
Product information 5.Performance curves 400AT-M ・ 400ST-M ・ 400FT-M 400A □ -M ・ 400S □ -M ・ 400F □ -M Discharge volume Discharge volume 400G □ -M ・ 400V □ -M 400GT-M ・ 400VT-M Discharge volume Discharge volume 500A □ -M ・ 500S □ -M ・ 500F □ -M 500G □... - Page 17 Product information 800A □ -M ・ 800S □ -M ・ 800F □ -M 800G □ -M Discharge volume Discharge volume 800AT-M ・ 800ST-M ・ 800FT-M ・ 800GT-M Discharge volume Air consumption Performance curve Liquid Temperature Correlation Graph NOTICE ・ The maximum safe working pressure of the pump depends on the liquid temperature.
-
Page 18: Installation
Installation 1.Installing and connecting the pump ・ Decide where the pump should be installed and secure a suitable space (see Examples of installations A to D). Examples of pump installations Air supply Ｄ Exhaust Ａ Ｂ Ｃ For optimal performance try to keep the suction lift as short as possible. To protect the diaphragms from abnormal damage or breakage, the inlet pressure must be kept below the following values: ※... - Page 19 Installation CAUTION ・ If the pump will be submerged into the liquid during operation, follow the steps below: ＊ Verify the corrosion resistance of each component of the pump, and do NOT expose the pump to any fluid for which it does not have proper corrosion resistance.
-
Page 20: Recommended Liquid Piping Connection Diagram
Installation WARNING ・ If a diaphragm is damaged, fluid may be ejected along with the air from the exhaust port. In cases when the pump is positioned below the liquid so that hydraulic pressure is acting on the pump, pushing the diaphragms etc, if a diaphragm fails then fluid can flow out of the pump under gravity. -
Page 21: Recommended Air Piping Connection Diagram
Installation CAUTION ・ When fitting liquid hoses to the pump, make sure to use a sturdy hose that will not collapse when strong suction pressure is applied from the pump. Also make sure the hose has a sufficient pressure rating to cope with the required discharge pressure. ・... -
Page 22: Operation
Operation 1.Pump start up 1) Open the air valve in front of each piece of peripheral equipment, and adjust the supply air pressure with a regulator to within the permissible range. 2) Open the flow valve on the discharge side. 3) Sowly open the air valve of the pump. -
Page 23: Releasing Pressure
Operation CAUTION ・ When the pump is shut down while pumping liquids containing slurry, particulate slurry matter contained in the liquid can settle and become deposited inside the bottom of the liquid chambers. If the pump is started again in the condition, the diaphragm may be damaged or the center disk may be overloaded, and this may cause damage such as bending or breaking of the center disk or center rod. -
Page 24: Maintenance
Maintenance ・ Daily maintenance checks A） Make sure the air filter drain is empty and working correctly. B） When using a lubricator, verify that the quantity of lubricating oil is sufficient. C） Make sure that there is no leakage of fluid from any hose connections or the pump body. D）... -
Page 25: Troubleshooting
Maintenance Troubleshooting Problem Probable Cause Actions to be taken The exhaust port (silencer) of pump is clogged with Check and clean the exhaust port or replace the Dirt or sludge. silencer. Start the compressor, open the airline ball valve and Air is not supplied air Regulator. - Page 26 Maintenance Troubleshooting Problem Probable Cause Actions to be taken The suction lift or discharge head is too long Confirm the piping configuration and shorten the length. Supply tank is empty or inlet valve is closed or piping is Change or refill tank, check that inlet valves are fully crimped open.
- Page 27 Maintenance Troubleshooting Problem Probable Cause Actions to be taken Disassemble and check the pump and replace the The diaphragm is damaged diaphragm. The fastening nuts for the center disk are loose Disassemble and check the pump. Tighten the nuts. Liquid leakage from exhaust port Disassemble and check the pump.
- Page 28 Maintenance Troubleshooting Problem Probable Cause Actions to be taken Lower the supply air pressure to the pump. The supply air pressure is too high (Check the compressor and the configuration of air piping.) Adjust the supply air pressure and discharge pressure. Occur ball chattering Reduce inlet flow valve to adjusting liquid pressure and Irregular vibration...
- Page 29 memo - 28 -...
- Page 30 EN80079-37 Non-electrical equipment for explosive atmospheres - Non-electrical type of protection constructional safety ''c'', control of ignition sources ''b'', liquid immersion ''k'' Products: Iwaki ''TC-X'' Series Air Operated Double Diaphragm Pumps Applicable Materials of Construction Pump Series Model PVDF TC-X030Model...
- Page 31 EU Declaration of Conformity Declaration of Conformity / Déclaration de Conformité / Declaración de Conformidad / Erklärung Bezüglich / Einhaltung Der Vorschriften / Dichiarazione di Conformità / Conformiteitsverklaring YTS JAPAN Co., Ltd. declares that Air Operated Double Diaphragm Pumps (''TC-X'' Series) and Automatic Air Operated Pulsation Dampeners (''CF-X'' Series) and Pump Accessories (listed: KGD30-09) comply with the requirements of directive and all applicable standards.
- Page 32 2021-11...
