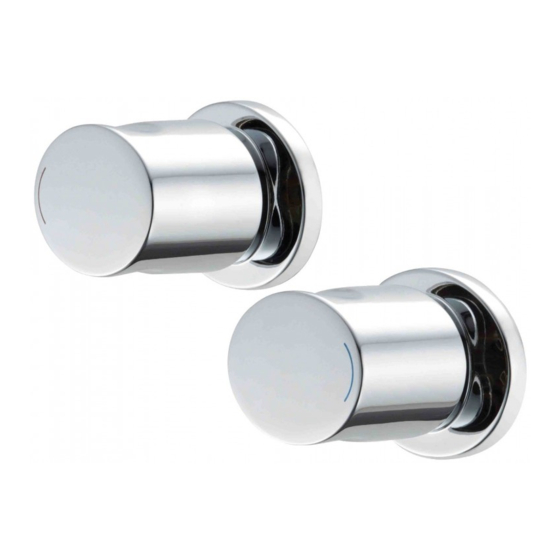

METHVEN Ovalo Wall Top 01-0806 Installation Manual

Technical Specifications

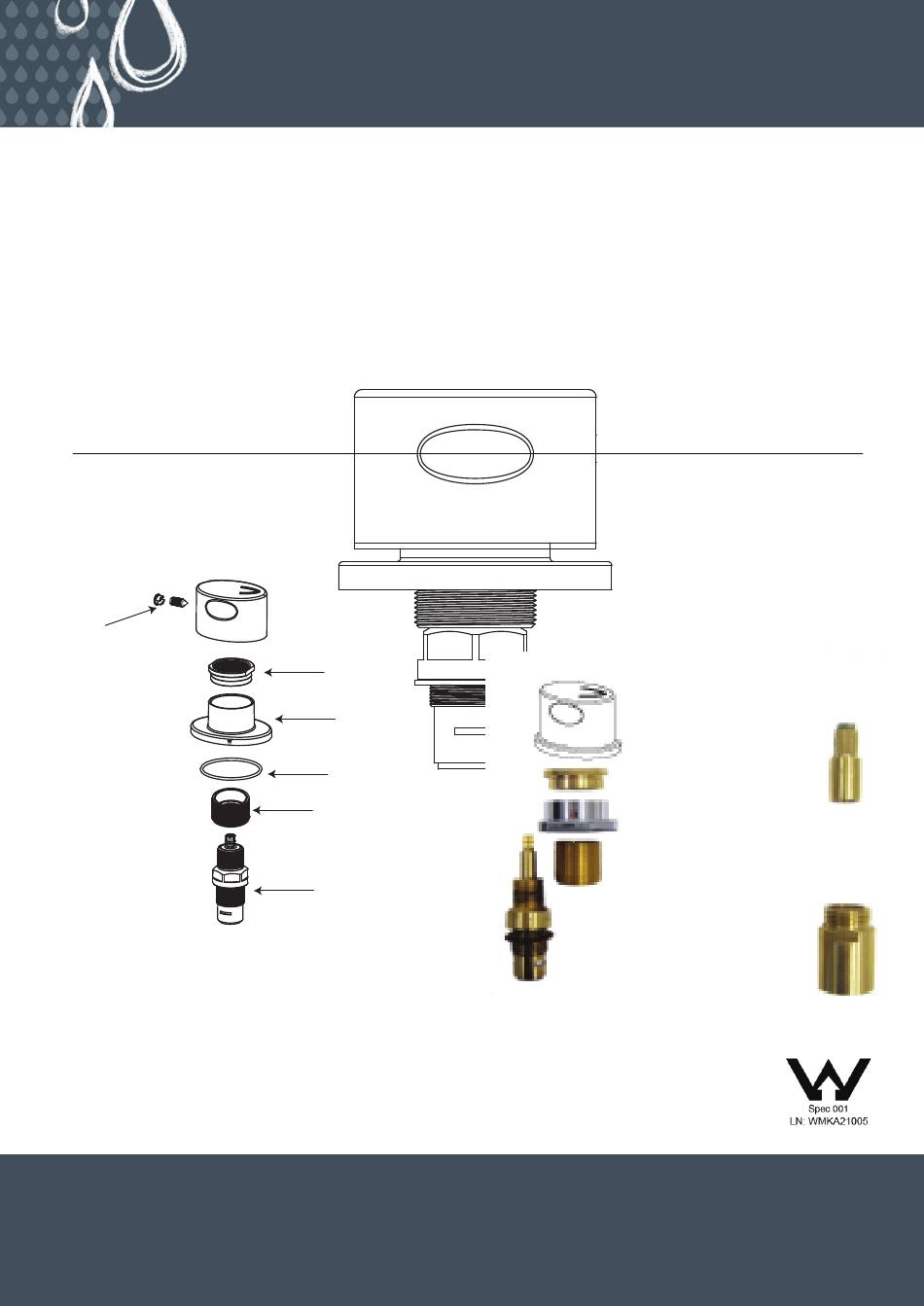

Ovalo Wall Top Assembly
Inlet Connections:
Operating Pressure:
Operating Temperatures:
Recommended Rough In Set Up:
Tolerance:
Grub
Screws
IMPORTANT
Please read all of the instructions before installation
Use of this product in non-domestic applications voids warranty.
All pipe work must be thoroughly flushed prior to the installation of the mixer.
NEFA inline filters must be installed on both hot and cold supplies.
Do not remove the ceramic cartridge from the mixer when installing.
Aug 2010
Damage caused by hydrostatic testing is not covered by our warranty.
THE METHVEN GUARANTEE
The warranty statement shall apply to all tapware & showers supplied by Methven
For more information visit www.methven.com
THIS WARRANTY ISSUED BY: Methven Australia Pty Ltd, Melbourne Australia
We recommend that this product is installed by a licensed plumber.
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
All 1/2" BSP
150kPa - 500kPa
Recommended hot water supply 50°C,
maximum 70°C. AS 3500 requires all hot
water supplies to any sanitary fitting to be
tempered to 50°C.
Face of finished wall to front of breech
(body) 6mm
Min: 0mm Max: 12mm
Flange
Locking Nut
Flange
O Ring
Connection
Illustration may not reflect actual product shape.
Installation Guide
Spindle
www.methven.com
01-0806 (Pair)
STANDARD WALL-TOP ASSEMBLY
Adjustment For Handle Line Up.
The spindle can be tightened allowing
the handle to be adjusted on the spline.
Standard Spindle &
Handle Assembly Set Up
Spindle Only
Hot 04-9752
Cold 04-9769
Extended Spindles (Not Included)
Hot 04-9707
Cold 04-9714
Flange Male Adaptor 04-9899
Standard Spindle
12mm Extension
04-9837
(Not Included)
Flange Male Adaptor
04-9905
Spindle Flange M & F
Extension 04-9875
(Not Included)
MA433509
