SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, EtherCAT and
Modbus.
By Pressing the "Set Communication" button from the main window for SW67E02 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision Number" the revision number of the converter is defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means for the fields for the "Modus Slave" are:
In the field "Serial" the serial port to use is defined (RS232 or RS485);
In the field "Baudrate" the baudrate for the serial line is defined;
In the field "Parity" the parity of the serial line is defined;
In the field "Stop Bits" the number of Stop Bits of the serial line is defined;
In the field "ID Device" the ID of Modbus side of the converter is defined;
If the field "Read with Input Register / Status
to read the Input bytes of OPC UA side with Input Registers (Function 04) and write
the Output bytes of OPC UA side with Holding Registers (Function 06/16). The Output
bytes are readable with Function 03. Otherwise, only Holding Registers will be used
and the Output bytes of OPC UA side cannot be read back.
ADFweb.com S.r.l.
User Manual EtherCAT Slave / Modbus Slave
Document code: MN67E02_ENG
Function" is checked, it is possible
Revision 1.000 Page 19 of 29

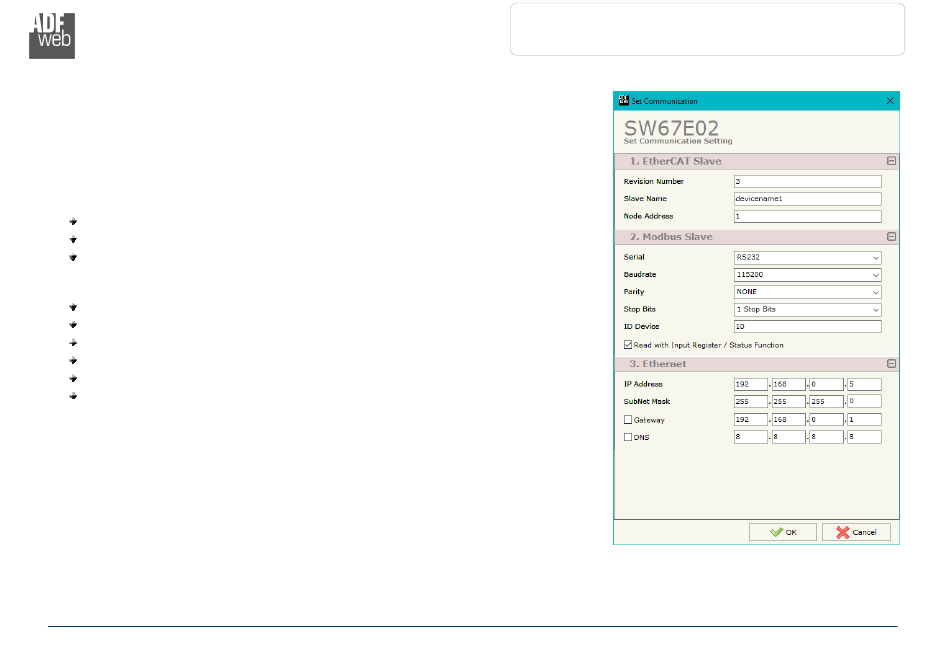

Figure 3: "Set Communication" window
