Öhlins POF6H00 Mounting Instructions

Set-up Data
Compression damping
High speed 15 clicks
Low speed 30 clicks
Rebound damping
High speed 23 clicks
Low speed 28 clicks
Öhlins products are subject to
To find the latest information contact
continuous improvement and your Öhlins distributor. Please
development, therefore, although
consult your Öhlins dealer if you
these instructions include the most
have any questions regarding the
up-to-date information available at
the time of printing, minor updates
may occur.
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the written S-194 27 Upplands Väsby, Sweden
permission of Öhlins Racing AB
is prohibited.
Recommended Springs (Eibach)
Main Spring
Spring Rate 220 N/mm
Length 130 mm (5'')
ID 57 mm (2.25'')
Helper Spring
ID 57 mm (2.25'')
(05173-07)
contents in this document.
Part no. POF6H00_1
Issued 2010-04-09
Öhlins Racing AB
Box 722
Phone +46 8 590 025 00
fax +46 8 590 025 80
www.ohlins.com

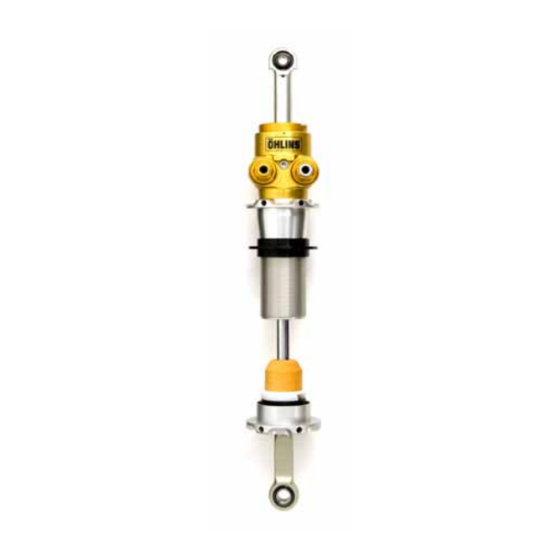

Shock Absorber for Porsche 997 - rear
POF6H00
Mounting Instructions
Before installing this product, check the
contents of the kit. If anything is missing, please
contact an Öhlins dealer.
Kit Contents
Part No. Pcs.
Shock abs. left/right front POF 6H00 1
Sticker 00192-01 1
Sticker 00197-02 1
Screw 00439-01 1
Spring support 05281-01 1
Spring retainer 05411-01 1
Top mount 05722-03 1
Rubber cap 05925-01 2
Ball joint spacer 06119-21 1
Ball joint spacer 06119-22 1
Owners manual TTX, CD 07435-02 1
Note!
No spring included in this kit. Contact an Öhlins
dealer for advice.
Please note that during storage
transportation, especially at high ambient
temperature, some of the oil and grease used for
assembling may leak and stain the packaging.
This is in no way detrimental to the product,
wipe off the excess oil/grease with a cloth.
Warning!
Before installing this product, read the Öhlins
Owner's Manual. The shock absorber is an
important part of your vehicle and will affect the
stability.
and
