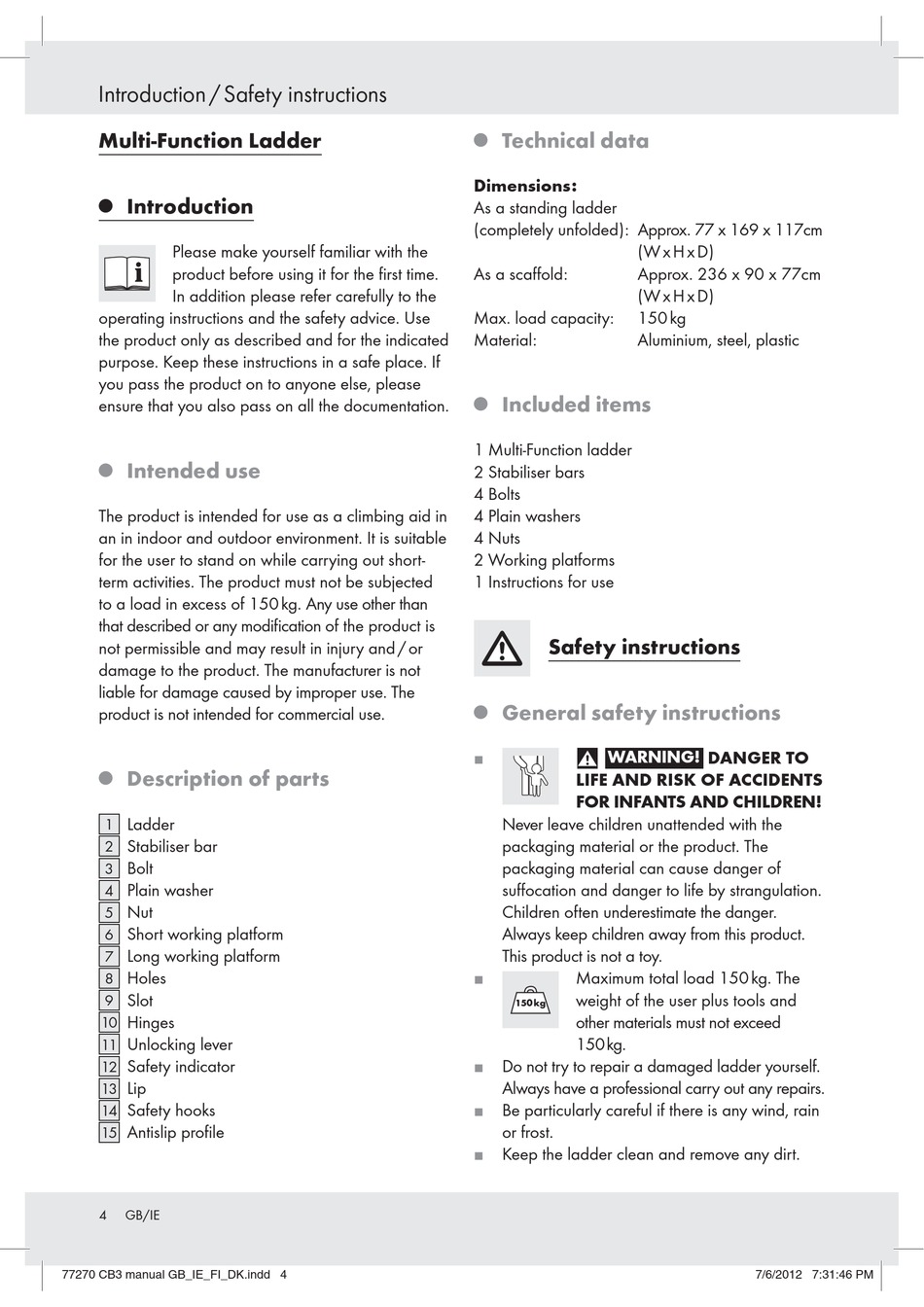

Introduction; Intended Use; Description Of Parts; Technical Data - Powerfix Profi Z30473 Assembly, Operating And Safety Instructions

Introduction / Safety instructions
Multi-Function Ladder
Q

Introduction

Please make yourself familiar with the
product before using it for the first time.
In addition please refer carefully to the
operating instructions and the safety advice. Use
the product only as described and for the indicated
purpose. Keep these instructions in a safe place. If
you pass the product on to anyone else, please
ensure that you also pass on all the documentation.
Q

Intended use

The product is intended for use as a climbing aid in
an in indoor and outdoor environment. It is suitable
for the user to stand on while carrying out short-
term activities. The product must not be subjected
to a load in excess of 150 kg. Any use other than
that described or any modification of the product is
not permissible and may result in injury and / or
damage to the product. The manufacturer is not
liable for damage caused by improper use. The
product is not intended for commercial use.
Q

Description of parts

Ladder
1
Stabiliser bar
2
Bolt
3
Plain washer
4
Nut
5
Short working platform
6
Long working platform
7
Holes
8
Slot
9
Hinges
10
Unlocking lever
11
Safety indicator
12
Lip
13
Safety hooks
14
Antislip profile
15
4 GB/IE
77270 CB3 manual GB_IE_FI_DK.indd 4
Q

Technical data

Dimensions:
As a standing ladder
(completely unfolded): Approx. 77 x 169 x 117cm
(W x H x D)
As a scaffold: Approx. 236 x 90 x 77cm
(W x H x D)
Max. load capacity: 150 kg
Material: Aluminium, steel, plastic
Q

Included items

1 Multi-Function ladder
2 Stabiliser bars
4 Bolts
4 Plain washers
4 Nuts
2 Working platforms
1 Instructions for use

Safety instructions

Q

General safety instructions

J
WARNING!
LIFE AND RISK OF ACCIDENTS
FOR INFANTS AND CHILDREN!
Never leave children unattended with the
packaging material or the product. The
packaging material can cause danger of
suffocation and danger to life by strangulation.
Children often underestimate the danger.
Always keep children away from this product.
This product is not a toy.
J
Maximum total load 150 kg. The
weight of the user plus tools and
150 kg
other materials must not exceed
150 kg.
J
Do not try to repair a damaged ladder yourself.
Always have a professional carry out any repairs.
J
Be particularly careful if there is any wind, rain
or frost.
J
Keep the ladder clean and remove any dirt.
DANGER TO
