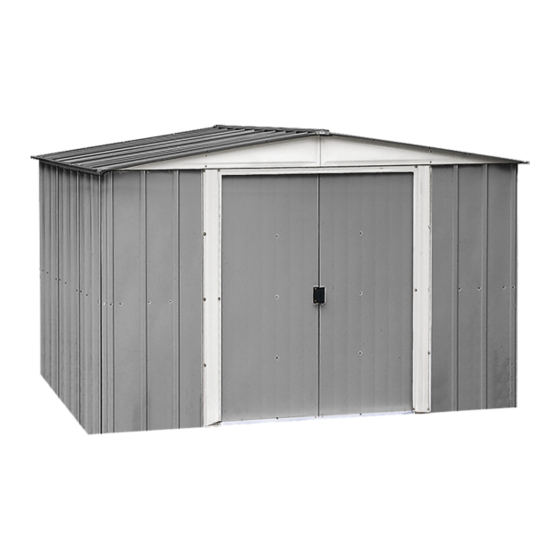

Arrow LM109 Owner's Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
VQ01
Model No.
714620111
Storage Area: 84 Sq. Ft.
7,8 m
BUILDING DIMENSIONS * Size rounded off to the nearest foot
*Approx.
Base
Size
Size
10' x 9'
121" x 105"
3,0 m x 2,6 m
307,3 cm x 266,7 cm
LM109
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
assist@arrowsheds.com
Do not return to dealer, they are not
equipped to handle your requests.
469 Cu. Ft.
13,3 m
2
3
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
123 1/4"
107 1/2"
313,1 cm
273,1 cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Height
Width
72 7/8"
118 1/4"
102 1/4"
185,1 cm
300,4 cm
Depth
Height
Width
71 5/8"
55 1/2"
259,7 cm 181,9 cm
141,0 cm 152,4 cm
Door
Opening
Height
60"

Advertisement

loading
Need help?

Need help?

Do you have a question about the LM109 and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow LM109

Summary of Contents for Arrow LM109

  • Page 1 Owner's Manual & Assembly Instructions VQ01 Model No. LM109 Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrowsheds.com Do not return to dealer, they are not equipped to handle your requests. 714620111 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 84 Sq. Ft.
  • Page 2 We recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct a base and anchoring system of your choice.
  • Page 3 PLAN AHEAD..Be sure the day you select to install your building is dry and calm. Watch the Weather: Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Whenever possible, two or more people should work together to assemble Teamwork: your building.
  • Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
  • Page 5 Roof: amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation. Always keep the door tracks clear of dirt and other debris that prevent them from Doors: sliding easily.
  • Page 6 10'x9' (3,0 m x 2,6 m), use 2 kits. Model No. AT101 Heavy-duty galvanized steel bars that Model No. AK100 fit all 10' (3,0 m) wide Arrow buildings. New concrete anchor system permits They install quickly and easily to anchoring any size Arrow building help organize space and create directly to a concrete slab.
  • Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 9 OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB109-A or 68385-A) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one of the following: A.
  • Page 10 Below are recommended ways of anchoring. Anchoring into Wood/Post: (Model No. AK4 or 60298) Arrow Anchoring Kit: Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base. dia. holes provided in the frames for proper anchoring.
  • Page 11 65109 67468 66646 66045 #8-32 Acorn Nut (4) Peak Cap (2) Washer (365) Handle (2) (Packed with Screws) (Arrow Logo) (10 sheets of 40) 66183 66382 Roof Trim Cap 66769 6228 Lower Door Guide (4) (2 right & 2 left)
  • Page 12 Parts List VQ12 Assembly Part Part Quantity Check Key No. Number Description in Carton List 3719 Door Handle Brace 5986 Rear Wall Angle 10497 Horizontal Door Brace 6278 Vertical Door Brace 6403 Door Track Splice 6515 Wall Panel 7332 Wall Panel 7333 Corner Panel 7483...
  • Page 13 Assembly by Key No. AE13 17 17 11 1...
  • Page 14 ● ● ● ● ● 8934 Ramp (1) ● Parts Needed For ● ● ● ● ● ● 9367 Front Floor Frame (2) Step 1 ● ● ● ● ● 8936 Rear Floor Frame (2) Floor Frame Assemblies ● ● ● ● ● 8945 Side Floor Frame (4) The front floor frame is made up of three pieces.
  • Page 15 ● ● ● ● ● 5986 Rear Wall Angle (2) ● Parts Needed For ● ● ● ● ● ● 9917 Rear Wall Channel (2) Step 2 ● ● ● ● ● 9921 Side Wall Channel (4) Frame Assemblies ● ● ● ● ● 8740 Side Wall Angle (4) The main frame pieces reinforce the Rear Wall Channel walls.
  • Page 16 ● Parts Needed For ● ● ● ● ● ● 10517 Roof Beam (8) Step 3 Roof Beam Assemblies AE16 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four pieces 10517 overlapped back to back at the cen- ter.
  • Page 17 ● Parts Needed For ● ● ● ● ● ● 6403 Door Track Splice (1) Step 4 ● ● ● ● ● 9366 Door Track (2) Door Track Assembly NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall.
  • Page 18 ● ● ● ● ● Front Floor Assembly (1) ● Parts Needed For ● Step 5 ● ● ● ● ● Side Floor Assembly (2) Floor Frame ● ● ● ● ● Rear Floor Assembly (1) RIGHT REAR 8945 Assemble the four corners of the floor frame using two screws at each STEP 8936...
  • Page 19 ● Parts Needed For ● ● ● ● ● ● 6515 Wall Panel (2) Step 6 ● ● ● ● ● 9373 Front Wall Panel (2) Corners ● ● ● ● ● 7333 Corner Panel (4) VQ19 NOTE The remainder of the building assembly requires many hours and more than one Narrow Side...
  • Page 20 ● ● ● ● ● Door Track Assembly (1) ● ● ● ● ● Rear Wall Angle Assembly (1) ● Parts Needed For ● Step 7 ● ● ● ● ● Side Wall Angle Assemblies (2) Frames ● ● ● ● ● Rear Wall Channel Assembly (1) ●...
  • Page 21 ● Parts Needed For ● ● ● ● ● ● 7332 Wall Panel (4) Step 8 ● ● ● ● ● 6515 Wall Panel (2) Wall Panels VQ21 The wall panels come in two widths. Each wall panel has a crimped rib on one side.
  • Page 22 ● Parts Needed For ● ● ● ● ● ● 9369 Door Jamb (2) Step 9 ● ● ● ● ● 9365 Front Wall Channel (2) Front Channel/Door Jamb The door jambs reinforce the door opening and provide an attractive 9365 trim.
  • Page 23 ● Parts Needed For ● ● ● ● ● ● 6000 Right Gable (2) Step 10 ● ● ● ● ● 6001 Left Gable (2) Gable Assemblies ● ● ● ● ● 5971 Roof Beam Bracket (4) The gables go on top of the front and rear walls to support the roof beams.
  • Page 24 ● ● ● ● ● Left Gable Assemblies (2) ● Parts Needed For ● Step 11 ● ● ● ● ● Right Gable Assemblies (2) Gables/Braces ● ● ● ● ● 6635 Gable Brace (2) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws.
  • Page 25 ● Parts Needed For ● ● ● ● ● ● Main Roof Beam (1) Step 12 ● ● ● ● ● Single Roof Beam (2) Roof Beams Spread the two halves of the main STEP roof beam and fasten the roof beam to the gable brace of the front gable.
  • Page 26 ● Parts Needed For ● Step 13 ● ● ● ● ● 7484 Right Roof Panel (1) Right Roof Panel AE26 Installing the roof panels is best done with a step ladder. Install the first roof panel at the back right corner of the building.
  • Page 27 ● Parts Needed For ● ● ● ● ● ● 7485 Left Roof Panel (1) Step 14 ● ● ● ● ● 7483 Roof Panel (4) Roof Assembly AE27 Install a left roof panel 7485 at the left rear corner of the roof. 7485 7484 7483...
  • Page 28 ● Parts Needed For ● ● ● ● ● ● 8742 Ridge Cap (2) Step 15 ● ● ● ● ● 7485 Left Roof Panel (1) Ridge Caps & Panels ● ● ● ● ● 7484 Right Roof Panel (1) AE28 Install the first ridge cap on the completed roof section using bolts...
  • Page 29 ● Parts Needed For ● ● ● ● ● ● 8743 Side Roof Trim (4) Step 16 Roof Trim Attach the side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.
  • Page 30 ● ● ● ● ● 3719 Door Handle Brace (2) ● Parts Needed For ● ● ● ● ● ● 10475 Right and Left Doors (2) Step 17 ● ● ● ● ● 10497 Horizontal Door Brace (4) Door Assembly ●...
  • Page 31 ● Parts Needed For ● ● ● ● ● ● Right Door Assembly (1) Step 18 ● ● ● ● ● Left Door Assembly (1) Door Installation & Adjustment Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the...
  • Page 32 LM109 VQ32 Anchoring and Floor Frame Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time. SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out.
