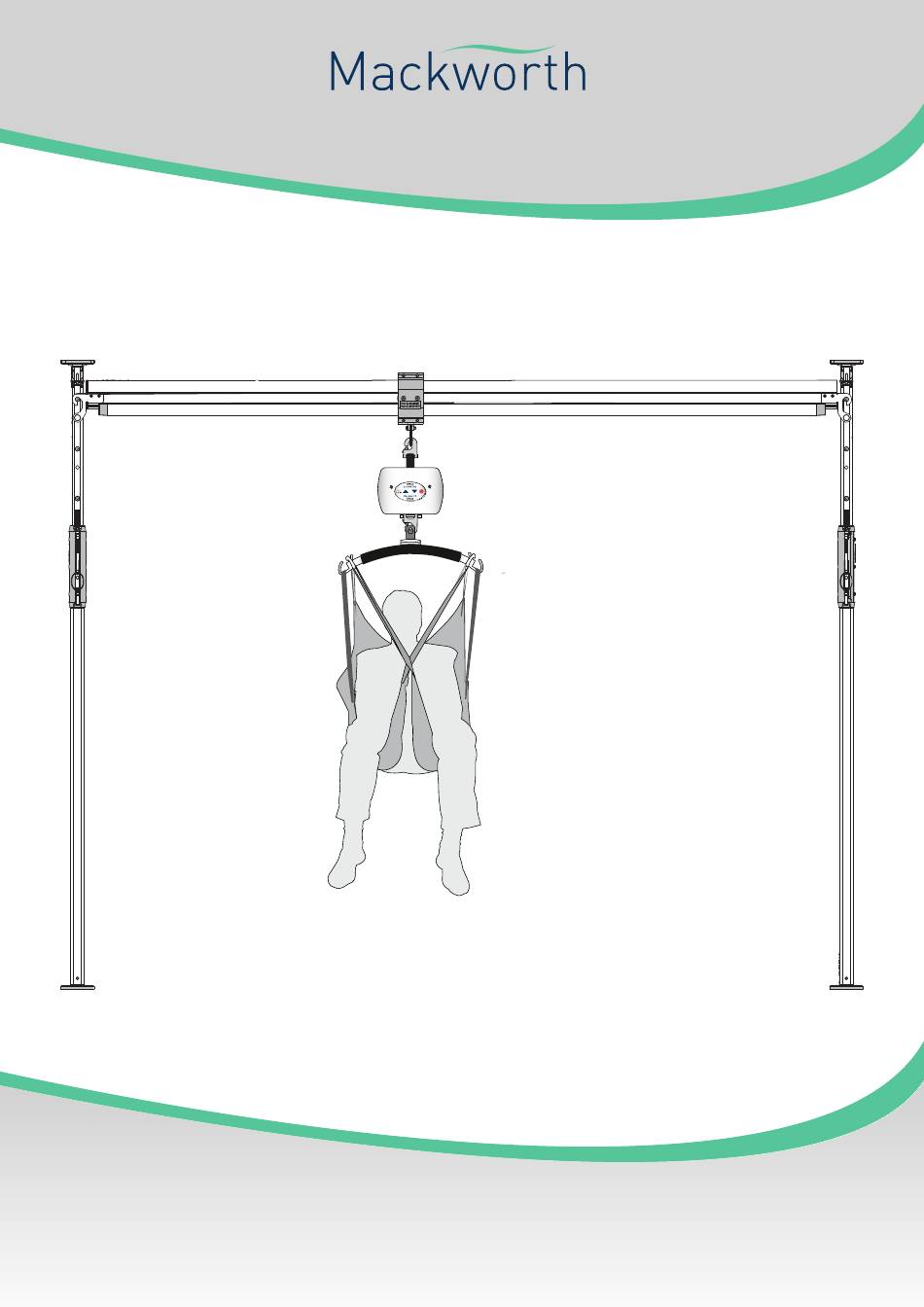

- Page 1 Easy Fit Gantry System User Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3 •... -
Page 3: Safety Instructions And Warnings
1. Safety Instructions and Warnings Symbols used Warning – Consult instructions for use Manufacturer Please observe local laws on recycling CAUTION: DO NOT ATTEMPT TO USE THIS EQUIPMENT WITHOUT FIRST UNDERSTANDING THE CONTENTS OF THIS MANUAL Before using this equipment, and to ensure the safe operation of your Easy Fit System, carefully read this entire manual, especially the section on “Cautions”... -
Page 4: Contraindications
. Mackworth does not recommend a required number of caregivers for the use of our products . This information and recommendation can only be provided after a thorough personalized, case specific assessment, as there are many factors that can influence these decisions . -
Page 5: Caution
Caution The Easy Fit System must be assembled prior to use . Should you have any questions during assembly contact your local authorized dealer . • Under no circumstance should the track, lift and sling(s) or entire system be put in control of a person who has not been properly trained in the use and care of this equipment . - Page 6 2. Components Easy Fit Components Component List Description Quantity Bottom plate Top plate Supporting post Adjustable track Post pins Pin ‘R’ Clips (for post pins) Owner’s manual...
-
Page 7: Specifications
(Upper Track Position) Foot Length 1856 -2726mm Horizontal Travel Ceiling to Trolley Clearance (Lower Track Position) 2046 -2750mm Overall Height 1950 -2820mm Internal Clearance 109 mm Foot Dia Model table for Easy Fit Code Description 540100 Easy Fit – 2 post version... -
Page 8: Placement Of The Easy Fit System In A Room
4. Placement of the Easy Fit System in a room Easy Fit System set up in a room . In this drawing arrangement, Drawing showing front view of a common a general placement of a bed is shown in relationship to the system . Notice that there is still room for a wheelchair to be placed beside the bed . - Page 9 5. Assembly Before using the Easy Fit System, the top plate, bottom plate, supporting posts and adjustable track must be visually checked to ensure that there are no missing parts or unusual wear and tear . Top plate and Bottom plate should be cleaned and dry with wet cloth before installation . Should anything look unusual contact your local dealer prior to use .
- Page 10 Assembly continued ..5 . Depress the Ratchet Button to release the 6 . Push the top part of the Support Post Lever, then push the Lever up until it meets upwards until the Top Plate compresses the Magnet Symbol . Note: Pushing down on against the ceiling .
-
Page 11: Assembly Instructions
Assembly (continued)..9 . Check to ensure that the blue marker on 10 . Push the Safety Lock back into place until Pressure Guage (located at the top of the it clicks and rotate the post to ensure that the Support Post) is confortably into the green lever is facing 90 degrees to the position of ‘safe’... - Page 12 (Assembling (continued …) 13 . Extend or contract the Track to fit 14 . Push the Post Pins between the two Support Posts and hook it on to the Support Post pins at the other side . 15 . Push the Safety Pin...
-
Page 13: Disassembly Instructions
7. Disassembly Instructions Failure to read and follow these instructions carefully may result in serious injury. Track disassembly Unhook the track from one post end by 2 . Squeeze the track and unhook the track from releasing the locking pin and clip then other post end (fig 3b .) below . - Page 14 Disassembly Instructions (continued…) 5 . Push in and hold the ratchet Hold ratchet and pull out the lever as shown in the image below . Lever may swing out – always keep one hand on the lever during this step 8 .
- Page 15 Disassembly Instructions (continued…) 10 . Make sure bottom pin touches the 11 . Bring back the level and safety lock to plastic cover . original position and lock in place shown in the image opposite . 12 . Take off top foot . 13 .
-
Page 16: Troubleshooting
8. T roubleshooting Should problems arise with the use of the Easy Fit System review the following chart . Find the fault and complete the recommended solution . If the fault is not found and/or the solution does not correct the problem, contact your local authorized dealer for service immediately . - Page 17 Fault Reason Recommended Solution Trolley does not move smoothly 1. Physical damage to track or 1. visually make sure tracks and wheels are fine along the adjustable track. trolley wheels. and are free of obstacles. 2. Track slots or trolley wheels 2.
-
Page 18: Pre-Use Inspection And Maintenance
9. Pre-Use Inspection and Maintenance Prior to each lift, this will be completed by the user, the Easy Fit system and associated hoist, accessories and sling(s), must be visually inspected . Refer to the hoist, accessory and sling user guides for specific details regarding their inspection . Should any of these items below fail the inspection do not use the Easy Fit system - Contact your local authorized dealer for service Visually check for the following:... - Page 19 10. Cleaning Prior to each installation, top and bottom rubber feet need to cleaned with wet cloth soaked with water . 1 . Take bottom rubber foot and wipe out the dirt attached to its bottom side of foot . 2 .
-
Page 20: Dilution Chart
Dilution chart Product used Device Concentration Dilution Tablets per Contact Condition (ppm) qty* 0.26gal (1l) time Bactericidal Clean 1.32gal (5l) 1 minute Dirty 1000 0.26gal (1l) 5 minutes Yeasticidal Clean 1.32gal (5l) 1 minute Dirty 1000 0.26gal (1l) 5 minutes Fungicidal Clean 2000... -
Page 21: Safety Precautions
Safety precautions when using this cleaning agent Handling and Storage: Advice on Safe Handling Avoid contact with skin and eyes . Do not breathe dust / fumes / gas / mist / vapors / spray . Use only with adequate ventilation . Wash hands thoroughly after handling . Mixing this product with acid or ammonia releases chlorine gas Hygiene Measures Handle in accordance with good industrial hygiene and safety practice . -
Page 22: Service Record History
12. Service Record History 18.1 Initial Information Complete the following section on Purchase and Service Information as soon as this equipment is • supplied . • Use the service record history to record to any completed service and repairs . •... - Page 23 Service Record History Complete this section after each service, repair inspection and/or maintenance . * Photocopy additional pages as required* ……………………………………………… Time: ……………………………………... Date: Periodic inspection Monthly inspection 6 inspection Repair Yearly inspection Other Service Type: ………………………......(printed name)............(signature) Competed by: Company:.......................................
- Page 24 ……………………………………………… Time: ……………………………………... Date: Periodic inspection Monthly inspection 6 inspection Repair Yearly inspection Other Service Type: ………………………......(printed name)............(signature) Competed by: Company:....................................... Remarks & Action Taken: Device left in a safe usable condition: YES if ‘NO’ explain in remarks the action) taken ………………………………………………...
- Page 25 ……………………………………………… Time: ……………………………………... Date: Periodic inspection Monthly inspection 6 inspection Repair Yearly inspection Other Service Type: ………………………......(printed name)............(signature) Competed by: Company:....................................... Remarks & Action Taken: Device left in a safe usable condition: YES if ‘NO’ explain in remarks the action) taken ………………………………………………...
-
Page 26: Warranty
90 days after original purchase . This guarantee shall be void if the equipment is not serviced by Mackworth or its authorized service agents in accordance with the manufacturers recommendations or if any unauthorized person carries out works on the equipment . - Page 27 While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Mackworth for any errors or omissions . Mackworth operates a policy of continuous improvement . Specifications and other data are subject to change without notice .
