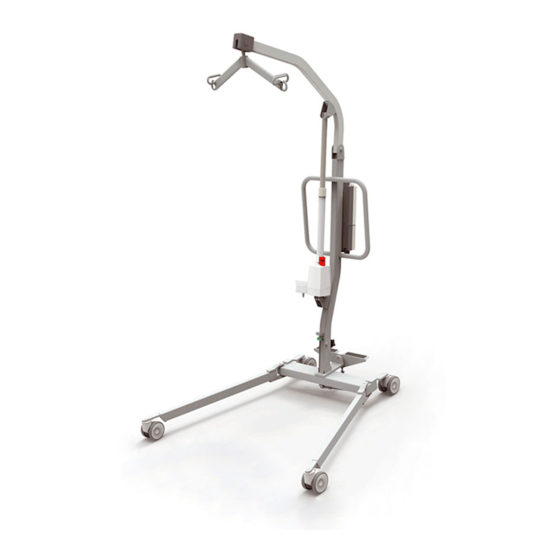

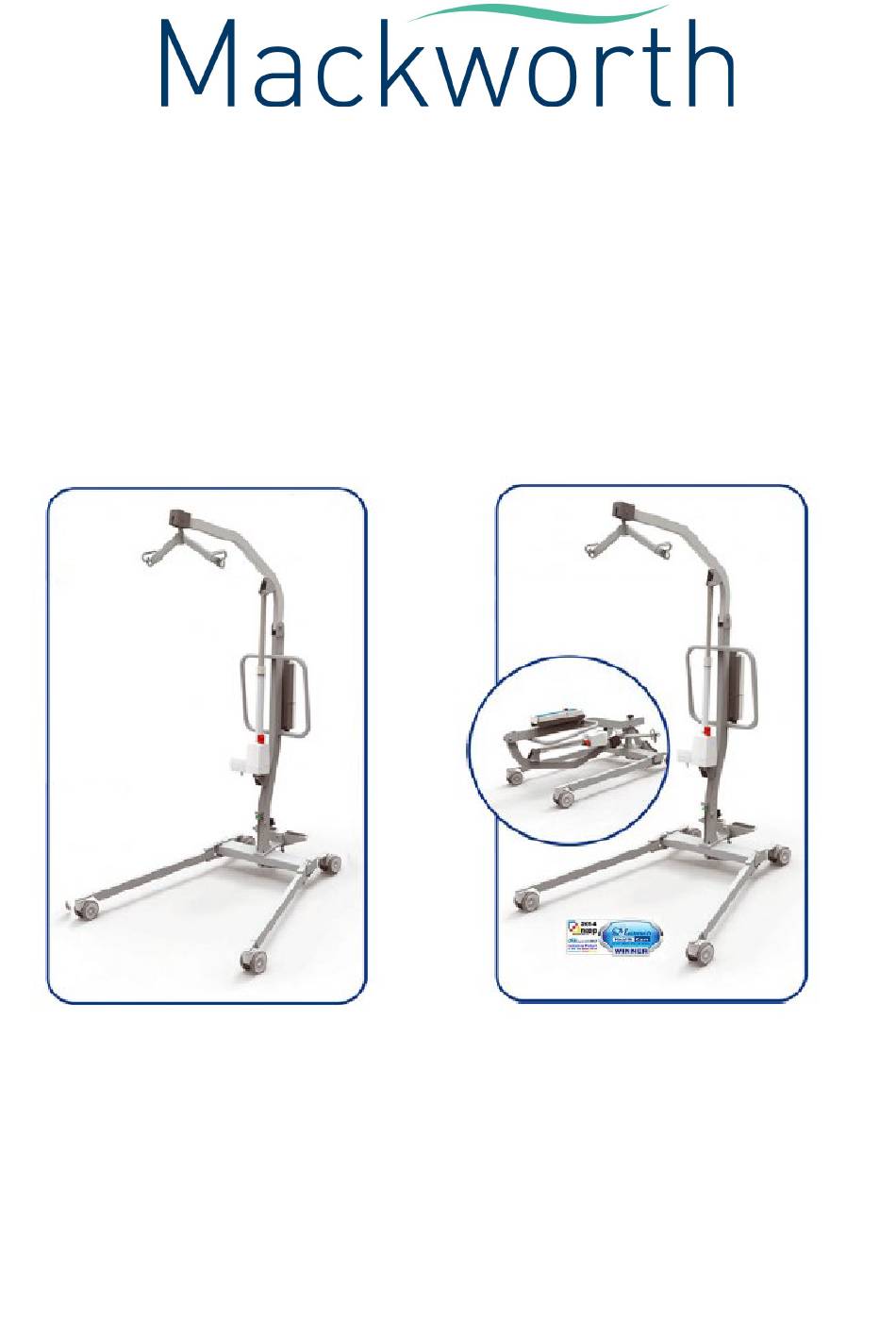

- Page 1 M-Series Mobile Hoist (M150, M160, M175 & M180) User Manual...
-
Page 2: Table Of Contents
User Manual Index Page Symbols used 1. Introduction 2. Contraindications 3. Intended use / Overview of the M-Series Hoist 5 to 6 4. Unpacking 5. Hoist assembly instruction 8 to 9 6. Hoist safety advice 7. Operating the hoist 8. Folding for transportation / storage 9. -
Page 3: Symbols Used
Symbols in use Index Warning – Consult instructions for use Caution – pinch point Manufacturer Please observe local laws on recycling Two-person lift may be required Refer to user manual Date of manufacture Serial number M-Series Mobile Hoist User Manual Page 3 of 36 Part No. -
Page 4: Introduction
For all other sling information/clip & hoist size compatibility, please refer to page 22 of the General User Safety Guide. To view our clip fitting video please visit: www.mackworth-healthcare.com/training. For general guidance for how to fit a sling, please visit: www.mackworth-healthcare/category/guides. -
Page 5: Contraindications
2. Contraindications There are no known “contraindications” associated with the usage of the mobile hoist and its accessories, provided they are used a per manufacturer’s recommendations and guidelines. However, it is recommended that a client specific assessment is completed by a trained and knowledgeable health care professional to determine the method of transfer. - Page 6 Please familiarise yourself with the components of the mobile hoist by referring to the diagram below. Model table for the M-Series of Mobile Hoists Product code Product description M150 * M150 Mobile Hoist (150kg SWL) M160 * M160 Mobile Hoist (160kg SWL) M175 * M175 Mobile Hoist (175kg SWL) M180 *...
-
Page 7: Unpacking
4. Unpacking SAFETY NOTE: Some of the parts are heavy and will need to be lifted with care. Heavier items may need two people to lift. (Please refer to technical spec on page 20 to 21) The hoist will arrive to you in a robust box and is folded in position, please be careful when removing the hoist from the box. -
Page 8: Hoist Assembly Instruction
5. Hoist assembly instruction The Assembled Hoist Carton Contains: • Base fitted with 2 brake castors rear and 2 non-brake castors front • Mast and boom assembly • 2 Point spreader bar complete with cover, and new M10 Bolt and Nylon Lock Nut •... - Page 9 Hoist assembly instruction (continued…) (Fig.2) i. Ensure the mast is fully seated in position before securing the mast locking hand wheel (Fig.1) Mast locking hand wheel must be secure before use f. The foot pedal will open and close the legs simply by activating one side with your foot.
-
Page 10: Hoist Safety Advice
6. Hoist safety advice Please ensure you read the following safety advice. This will ensure lifting operations are made easy and trouble free. • Always carry out the risk assessment and plan your lifting operations before commencing and moving & handling practice. •... -
Page 11: Operating The Hoist
7. Operating the hoist Castors & Braking - The hoist has two braked castors at the rear of the base. The brakes should only be applied when the lift is parked. The brakes should always be released when a lifting operation is taking place. Leg Opening &... -
Page 12: Folding For Transportation / Storage
8. Folding for transportation / storage (folding mast type only) Lower the boom with the hand set until the spreader bar sits on the steel bracket. Attach the strap & buckle around the mast and spreader bar, this ensures the mast is secure and clear from the floor when folded. -
Page 13: Linak® Operating Systems
9. Linak® Operating System a. Jumbo care system – Typical Illustration 1. Linak® battery pack 2. Linak® control box 3. Linak® actuator 4. Linak® handset b. Homecare system – Typical illustration 5. Linak battery pack and control box ® 6. Linak actuator ®... -
Page 14: How To Charge The Hoist Battery
10. How to charge the hoist battery There are a number of batteries located in the power pack / battery housing. They are charged through a shaver type socket in the base of the control unit. When charging is required the 3 pin mains lead is plugged into a wall socket and the shaver type socket goes into the base of the control box. -
Page 15: Daily Maintenance Checks
11. Daily maintenance checks 11.1 Visual check list These are recommended to be carried out before the hoist is used for any moving & handling practice. a. CHECK that the legs open and close correctly. b. CHECK that the hoist moves freely on its castors. c. -
Page 16: Maintenance And Servicing
12. Maintenance & Servicing These recommendations are in line with the Lifting Operations and Lifting Equipment Regulations (LOLER 1998). For further detailed information, please visit: www.hse.gov.uk/work-equipmentmachinery/loler.html. This maintenance must be carried out by a competent person and is a UK regulation. - Page 17 Maintenance & servicing (continued…) j. Spreader bar: Check the spreader bar rotates and swings freely. Check the central pivot M10 bolt and nylon lock nut for excessive wear. Check the fixing point for excessive wear and inspect the sling hooks for any damage, sharp edges and excessive wear. (see illustrated image below (fig.8) Illustrations for key check points as indicated above in points 1.
- Page 18 (Fig.8) (fig.8) Ensure the M10 bolt, nylon lock nut and 2 washers are in position and secure (Fig.8) M-Series Mobile Hoist User Manual Page 18 of 36 Part No. 999036 / Rev.6 / Mar 2018...
-
Page 19: Recommended Cleaning Instruction
Recommended Cleaning Instruction General cleaning The exterior of the Hoist can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning, dry using a clean dry cloth. Care should always be taken when cleaning around electrical components Disinfecting (if necessary) Should the Hoist require a more thorough clean, the use of the Actichlor... - Page 20 (recommended cleaning instruction…continued) Concentration limits for differing cleans will be shown on the manufacturers Achtochlor tablet container, however, this is reflected in the table below: Dilution chart Device Concentration Dilution Tablets per Product used as: Contact time condition (ppm) qty * litre Clean 5 litre...
- Page 21 (recommended cleaning instruction…continued) Conditions for safe storage, including and incompatibilities • Keep out of reach of children • Keep container tightly closed • Store in suitable labelled containers • Storage temperature: 0°C to 25°C Individual protective measures: • Hand protection: Gloves Dissolve Dissolve in cold water –...
-
Page 22: Generic Spare Parts Listing
14. Generic spare parts listing Details of the spares available upon request Order code Description H1 – Battery Linak® battery pack for hoist Linak® bracket for battery & H1 – Battery fixing bracket control box H1 – Castor front Front castor low height Rear braked castor low H1 –... -
Page 23: Technical Spec
15. Technical Specifications (all shown dimensions are in centimetres) 15.1 - Dimensional Total weight: 39kgs Actuator thrust: 10,000n Direction of travel: M-Series Mobile Hoist User Manual Page 23 of 36 Part No. 999036 / Rev.6 / Mar 2018... - Page 24 Technical specifications (continued…) 15.2 Electrical specifications: • Batteries 2 x 12-volt rechargeable sealed lead acid. • Battery Capacity 2.9 Ampere / hours • Charger Rated Input 230Vac 50/60Hz • Charger Rated Output 27.4 / 29.0 VDC @ 0.8A 15.3 Electric Shock Protection: •...
-
Page 25: Slings
16. Slings 16.1 Sling Guide On the boom of every hoist there is a sling sizing guide for the Mackworth and Prism Range of slings. This facilitates easy identification of the available slings in a multi-use environment. 16.2 Sling types... -
Page 26: Carry Bars
17. Carry bars Carry Bars Although the manufacturer supplies carry bars specifically to be used with the associated devices it manufactures, there is no reason that other manufactured carry bar systems cannot be used BUT they must be done so after a full risk analysis has been carried out for its use on the Prism hoist system to ensure safe use can be established. -
Page 27: Standards Applied
19. Standards Applied The standards that have been applied to the device are as follows: • BS EN 60601-1-2 Medical electrical equipment. General requirements for basic safety and essential performance. Collateral Standard. Electromagnetic disturbances. Requirements and tests • BS EN 60601-1 Medical electrical equipment. -
Page 28: Test Certificate And Guarantee
20. Test certificate and Guarantee M Series Mobile Hoists TEST CERTIFICATE Model: M150 M160 M175 M180 Safe Working Load: 150Kgs 160kgs M175 M180 Serial No: ……………………………………………………………………. Date of Test: ……………………………………………………………….. This Test Certificate confirms that the above numbered hoist has been fully tested in accordance with the tests specified in: •... -
Page 29: Guarantee
20.1 Guarantee Prism Medical UK warrants this product against any defects in manufacturing and assembly of mechanical and electronic components. This warranty is for devices used only in accordance with our terms of use. This warranty, whose terms of use are defined below, is valid for the following: o Steel Frame - 36 months o Actuator - 60 months. -
Page 30: Service Record History
General Inspection and Maintenance Section. • Be sure to have this piece of equipment serviced on a regular basis (6 monthly where LOLER applies). Purchase Information Product name: M Series Mobile Hoist Model: M150 M160 M175 M180 Date of purchase: ……………………………………….. -
Page 31: Service Record History
21.2 Service Record History Complete this section after each service, repair inspection and/or maintenance. * Photocopy additional pages as required* M-Series Mobile Hoist User Manual Page 31 of 31 Part No. 999036 / Rev.6 / Mar 2018... - Page 32 M-Series Mobile Hoist User Manual Page 32 of 32 Part No. 999036 / Rev.6 / Mar 2018...
- Page 33 M-Series Mobile Hoist User Manual Page 33 of 33 Part No. 999036 / Rev.6 / Mar 2018...
- Page 34 M-Series Mobile Hoist User Manual Page 34 of 34 Part No. 999036 / Rev.6 / Mar 2018...
-
Page 35: User Notes
User notes: M-Series Mobile Hoist User Manual Page 35 of 35 Part No. 999036 / Rev.6 / Mar 2018... -
Page 36: Contact Details
PRISM MEDICAL UK Unit 1, Tir Llwyd Industrial Estate, Saint Asaph Avenue, Kinmel Bay, Rhyl, LL18 5JA • info@prismmedical.co.uk • Tel +44 (0)1924 840 100 • www.prismmedical.co.uk Part Number: 999036 / Rev: 6 / Date: Mar 2018 M-Series Mobile Hoist User Manual Page 36 of 36 Part No.
