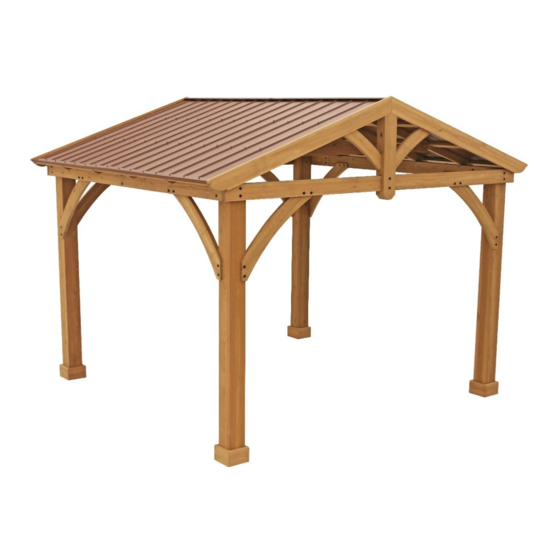

Pavilion with aluminum roof
Hide thumbs

Advertisement

Quick Links

Download this manual
AVERY PAVILION
r
with ALUMINUM
OOF
Installation and Operating Instructions – YM11742
HEIGHT:
10'6" or 3.2m
http://bit.ly/averyinstall
Revised 11-14-2016
[3657.8]
12'
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
[3225.8]
10' 7"
info@yardistrystructures.com
www.yardistrystructures.com
For Spanish instructions visit our website at:
(Para obtener instrucciones españoles, visite nuestro sitio web en:)
http://yardistrystructures.com/instruction-manuals/
Height: 9' 11" (3.02 m)
1
