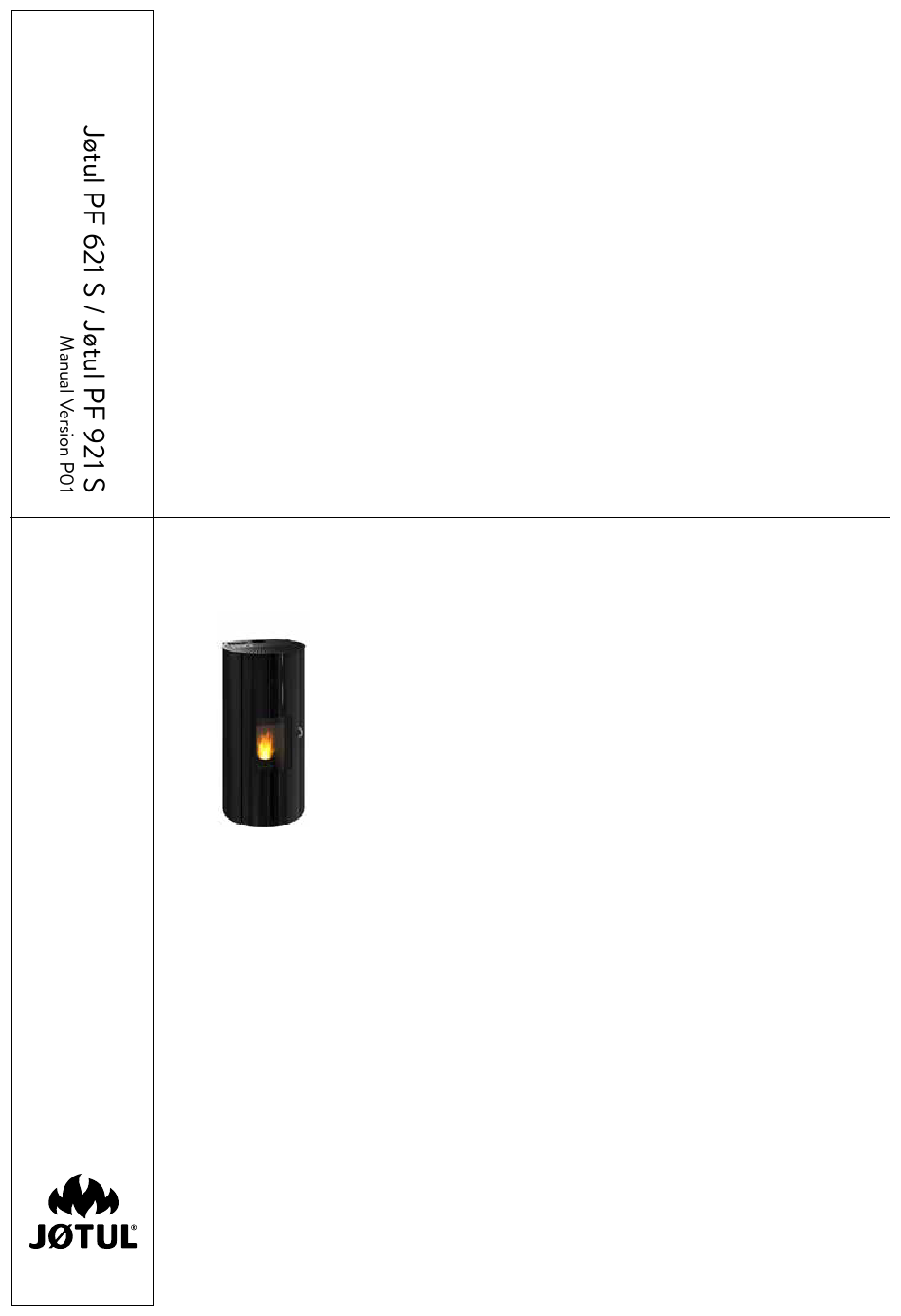

Jøtul PF 621 S / Jøtul PF 921 S
EN
- Installation, operation and maintenance manual
IT
- Manuale di installazione, uso e manutenzione
PL
– Instrukcja instalacji, obsługi i konserwacji
Jøtul PF 621 S
Jøtul PF 921 S
EN - Before use, read the general instructions of installation, use and maintenance carefully
IT - Prima dell'uso, leggere attentamente le istruzioni generali di installazione, uso e manutenzione
PL - Przed użyciem należy dokładnie zapoznać się z ogólną instrukcją instalacji, użytkowania i konserwacji
The instruction manual provided with the product must be kept throughout the entire period of the products use. Le
istruzioni fornite devono essere conservate per tutta la vita del prodotto. Instrukcje dostarczone z produktem muszą być
przechowywane przez cały okres użytkowania produktu.
2
26
50
