Item #1007 497 520/1007 497 524
1007 497 521/1007 497 559
Model # 23101FP/23102FP
USE AND CARE GUIDE

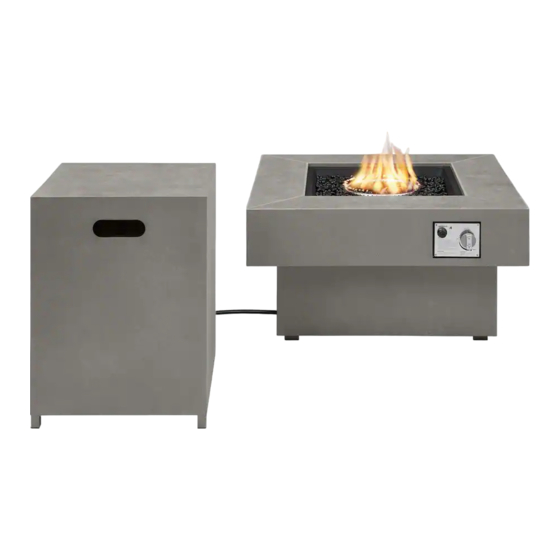

RUTHERFORD 30 IN. SQUARE LOW PROFILE STEEL GAS FIRE PIT
WITH TANK HOLDER SIDE TABLE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection 23101FP
Summary of Contents for Home Decorators Collection 23101FP
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Assembly . - Page 3 Safety Information (continued) WARNING: Use factory approved replacement parts and accessories only. Use of unapproved parts or accessories can void the warranty on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes, ignition modules, fire glasss, logs, etc.
- Page 4 Safety Information (continued) Before each use of this gas appliance, open the LP (liquid propane) tank drawer and inspect the LP hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas appliance being put into operation. Use only the replacement hose assembly specified in this manual.
- Page 5 Safety Information (continued) WARNING: Fuels used in liquefied propane gas appliances, and the products of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and cause birth defects or other reproductive harm.
-
Page 6: Pre-Assembly
Pre-assembly SPECIFICATIONS INPUT 50,000 Btu/hr 30,000 Btu/hr Low fire Propane Regulator Pressure 11 inches water column Clearances to Sides: 24in./61cm Top: 60 in. / 152 cm combustible surfaces PLANNING ASSEMBLY NOTE: Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. -
Page 7: Assembly
Assembly Installing and using the gas tank □ Connect the gas hose from the fire pit (A) to the LP gas cylinder. Hand tighten clockwise only. □ To disconnect the gas hose from LP gas cylinder, loosen the connector by turning counterclockwise by hand. □... - Page 8 Assembly (continued) Inserting battery □ Open the battery cap on the control panel and install one AAA battery (not included). NOTE: Only one battery is needed. Putting in the fire glass □ Add fire glass (D) to the fire bowl. NOTE: Maximum recommended amount of fire glass (D) for use in the fire bowl is 4~4.5 kg.
- Page 9 Assembly (continued) Placing the lid □ Place the lid (C) on the top of the fire bowl to complete the assembly. Covering the gas tank with the side table □ Place the side table (B) on top of the LP gas cylinder and gas tank base (E) to conceal it. CAUTION: Keep the gas tank fixed in the tank base.
-
Page 10: Operation
Operation BEFORE LIGHTING Fire pit should be thoroughly inspected before each use and by a qualified service person at least annually. If relighting a hot fire pit, always wait at least 5 minutes. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. -
Page 11: Leak Check
Operation(continued) CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use. Leak Check WARNING: Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and confirmed no leakage. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Master No. 267946...
