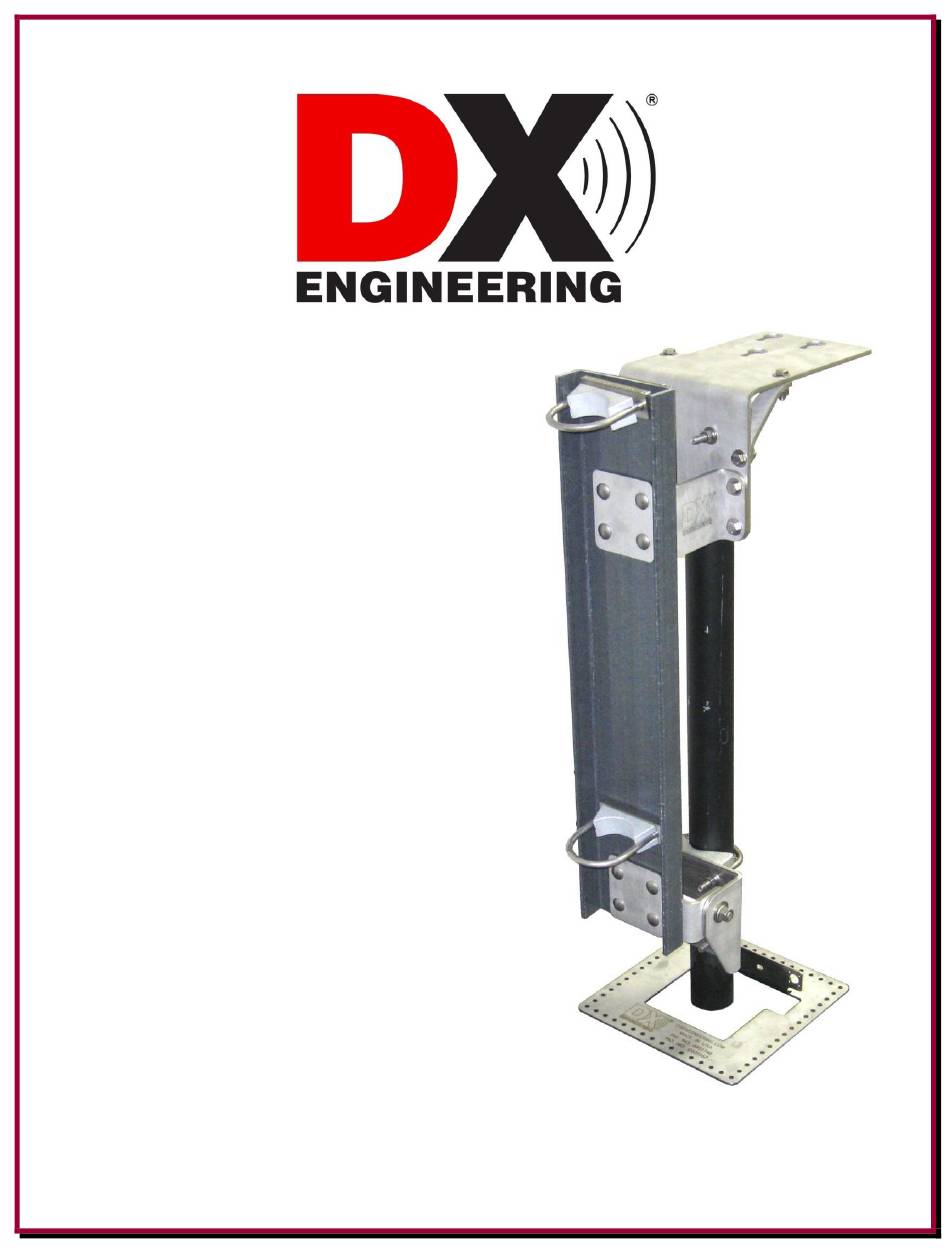

DX Engineering
Heavy Duty Pivot
Base for Three Inch
Base Section
Vertical Antennas
DXE-VA-PIVOT-3
US Patent No. 8,130,168
DXE-VA-PIVOT-3-INS Revision 0b
Shown with optional DXE-RADP-3 Radial Plate and
Optional DXE-VGMT-3CG Mounting Pipe
© DX Engineering 2019
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXE-VA-PIVOT-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DX Engineering DXE-VA-PIVOT-3

Summary of Contents for DX Engineering DXE-VA-PIVOT-3

  • Page 1 Base for Three Inch Base Section Vertical Antennas DXE-VA-PIVOT-3 US Patent No. 8,130,168 DXE-VA-PIVOT-3-INS Revision 0b Shown with optional DXE-RADP-3 Radial Plate and Optional DXE-VGMT-3CG Mounting Pipe © DX Engineering 2019 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200...
  • Page 2 Specifically, 3" OD (max) high strength galvanized steel tubing with 0.250” minimum wall thickness and 7’ minimum length, which is available from DX Engineering; part number DXE- VGMT-3CG. A customer supplied 2-1/2" Schedule 80 pipe that has an outside diameter of 2.875"...

  • Page 3: Tools Required

    Every effort is made to supply the latest manual revision with each product. Occasionally a manual will be updated between the time your DX Engineering product is shipped and when you receive it. Please check the DX Engineering web site (www.dxengineering.com) for the latest revision manual.

  • Page 4: Coaxial Cable To Mounting Pipe

    Mounting Pipe DX Engineering has a Chromoly Steel mounting mast available - Part Number DXE-VGMT-3CG is 3 inches OD, Chrome-Moly 4130 Steel Tubing, 100K PSI Min. Yield, 3 in. OD, 0.250 in. Wall, 7 ft. Length, This mounting pipe must be permanently mounted in the ground, preferably in a concrete base 2 feet by 2 feet by 4 feet deep (with gravel below for drainage).
  • Page 5 Grass will quickly overgrow the radials and it will be virtually impossible to see them. An article describing this process is available on the DX Engineering website. Radials can also be buried just under the surface by using a power edger to make a slit in the soil.

  • Page 6: Radial Plate To Mounting Pipe

    Additional hardware kits are available (DXE-RADP-1HWK) that contain 20 sets of Radial Plate Hardware. There are optional DX Engineering Radial Wire Kits available. DXE-RADW-500K/BD contains a 500 foot spool of 14 gauge copper stranded wire with black PVC insulation, 20 Terminal Lugs and 100 Steel or Biodegradable Lawn Staples.
  • Page 7 Overall Pivot Base (US Patent No. 8,130,168) Assembly Drawing The exploded view drawing is for reference and shows the overall Pivot Base Assembly. The 3” Mounting Pipe and 3” Antenna Base Section are Customer Supplied. Feedpoint hardware shown for reference - 6 -...

  • Page 8: Pivot Base And Lower Antenna Assembly

    Pivot Base and Lower Antenna Assembly 1. Locate the heavy duty Extren® insulated channel. There are 12 holes drilled in the insulated channel. The top of the insulated channel is identified by two holes located very near the top side. 2.
  • Page 9 4. Locate the stainless steel base side bottom hinge, two 1/2-13 x 1-1/4" long stainless steel hex head bolts, two pivot bushings, four 1/2 x 1-1/4" stainless steel flat washers, two 1/2" stainless steel split lock washers, and two 1/2-13 stainless steel hex nuts. Assemble the base side hinge plate to the bottom hinge plate as shown below.
  • Page 10 6. Locate the stainless steel Pivot Base Winch Mount, two stainless steel Pivot Base Plate Brackets, four 3/8-16 x 1-1/4" long stainless steel hex bolts, eight stainless steel 3/8" flat washers, four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex nuts. Assemble the Pivot Base Plate Brackets to the Pivot Base Winch Mount as shown below.
  • Page 11 8. Locate two V-Saddle blocks, two stainless steel V-Bolts, four stainless steel 3/8" flat washers, four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex head nuts. Loosely assemble (one or two threads beyond the end of the hex nuts) the two V-Bolts to the stainless steel Pivot Base Winch Mount as shown below.
  • Page 12 10. Move the four V-Bolts out as far as they will go (these were put on loosely in earlier steps). Slide the entire assembly onto your mounting pipe. You want approximately 1 inch clearance from the top of your mounting pipe to the bottom side of the winch mounting plate. Position the base fixture in the position you pre-selected for the pivoting direction.
  • Page 13 11. Using your 3" OD antenna bottom element section. Loosen the previously installed U-Bolts. Insert your 3” OD antenna bottom element section into the antenna base section through the upper and lower U-Bolts. The bottom of your 3" OD element tube should be even with the bottom of the insulated channel as shown below.

  • Page 14: Mounting And Using The Optional Dxe-Vrw-1 Manual Winch

    13. Loosen the U-Bolts enough to slide the Antenna Hook Mount assembly over your 3" OD antenna lower element on the base assembly. Position the antenna hook mount approximately 1/2" above the insulated channel as shown below. 14. Tighten the two U-Bolt clamps hardware evenly so the length of the exposed threads is approximately equal.
  • Page 15 The hardware does not have to be removed from the manual winch to either install or remove the manual winch from the winch mounting plate. There are three holes with slots in the mounting bracket. The flat washers will fit through the large holes.

  • Page 16: Locking The Pivot Base

    4. Turn the crank on the manual winch to lower, or raise the antenna. After raising the antenna completely, make sure you replace the four bolts that were removed in step 3. The manual winch should be removed when not in use to protect the gears and web strap from weather and environmental effects.

  • Page 17: Suggested Parts Not Included

    Suggested Parts Not Included DXE-VRW-1 - Manual Winch Add-on Raising Kit Manual winch add-on kit for the High Performance DX Engineering vertical antennas DXE- 8040VA-1 and DXE-7580VA-1. The tilt fixtures for these antennas are equipped to accept the winch directly. Allows easy raising and lowering of tall antennas - may be easily moved from one antenna to another in multi-antenna arrays.
  • Page 18 Made from Laser Cut Stainless Steel with 20 Sets of Stainless Steel Radial Attachment Hardware. The DX Engineering Radial Plate is meant for those of you having a vertical antenna and want an easy, neat and effective way to connect those essential radial wires to your antenna system for the highest efficiency and strongest signals.
  • Page 19 DXE-STPL - Radial Wire Anchor Pins, 100/pack - No need to bury your radials! DX Engineering Radial Wire Anchor Pins are perfect for fastening radials below the grass line to eliminate the risk of damaging your radials during lawn maintenance.

  • Page 20: Technical Support

    All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
