082-0220-00
Backplane
PN 932-0045-00
Quick Reference
Introduction
The 082-0220-00 is a two slot vertical 2U PCI-X riser backplane. The back-
plane to SBC interface is a PICMG 1.0 64-bit connector with enhancements
to accommodate the PCI-X protocol. Expansion slots are provided as two
3.3V 64-bit 33/66MHz PCI/PCI-X slots with signal definition and power
compatible with the PCI specification Rev. 2.2 and PCI-X Addendum speci-
fication Rev 1.0A. The 082-0220-00 backplane also has headers for two
+12V fans (no fan tach output), one power LED header, one 6 pin connector
to supply power to the SBC, one rocker switch to turn the system on / off,
and an ATX type power connector to provide sufficient power to all
peripheral cards, fans, and the SBC motherboard.
Connectors & Switches
No.
Description
J1
Main Power (vertical 20-pin ATX type mini-fit)
J2
Fan Header (right angle 2-pin friction lock molex)
J3
Fan Header (right angle 2-pin friction lock molex)
J4
AUX Power Out (vertical 6-pin AT type molex)
J5
Power present LED (right angle 2-pin friction lock molex)
J6
ALT Power Control
J7
PCI/PCI-X Slot 1 (64-bit 3.3V)
J8
PCI/PCI-X Slot 2 (64-bit 3.3V)
J9
PICMG Edge Connector (64-bit 66MHz PCI/PCI-X)
SW1
Rocker Switch / Power Button
Thank you for purchasing your new computer from Kontron.
mounting
J5
hole
B94
J2
2
1 2
1
2
J3
1
A93
11
1
1
B94
A93
J1
6
20
10
mounting
J4
J6
hole
Unpacking
1) After unpacking the box, save it and the packing material for possible future shipment.
2) Remove all the items from the box. If any items listed on the purchase order are missing, notify Kontron
Customer Service immediately (800-480-0044, option 2).
3) Inspect the product for damage. If there is damage, notify Kontron Customer Service immediately. Refer to
"Guarantee and Warranty Policy" in the manual for this product posted on the Kontron website (www.kontron.com).

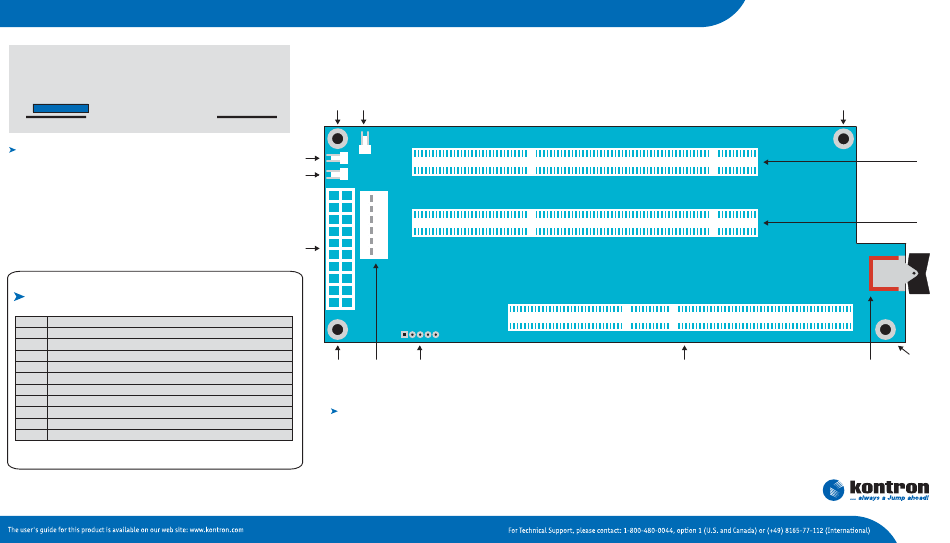

Figure 1: Pecos River Connector & Switch Locations
B64
A63
B64
A63
B94
A93
mounting
hole
A15
A11
A1
A15
A11
A1
B52
A53
A49
J9
J7
J8
B2
A1
mounting
SW1
hole
