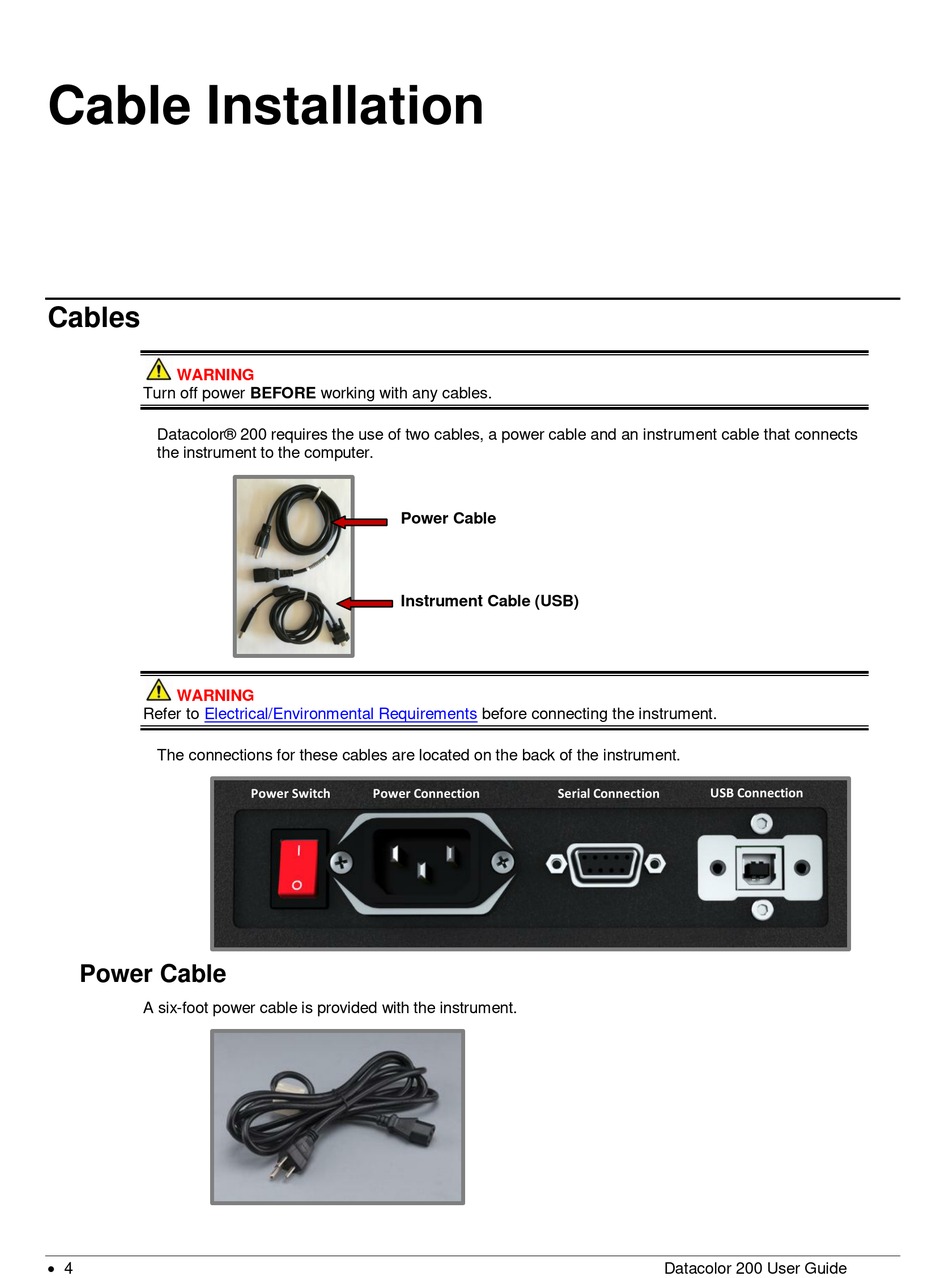

Cable Installation

Cables

WARNING
Turn off power BEFORE working with any cables.
Datacolor® 200 requires the use of two cables, a power cable and an instrument cable that connects
the instrument to the computer.
WARNING
Refer to Electrical/Environmental Requirements
The connections for these cables are located on the back of the instrument.
Power Cable
A six-foot power cable is provided with the instrument.
 4
Power Cable
Instrument Cable (USB)
Power Switch Power Connection
before connecting the instrument.
Serial Connection
USB Connection
Datacolor 200 User Guide
