Datacolor 200 User Manual page 16

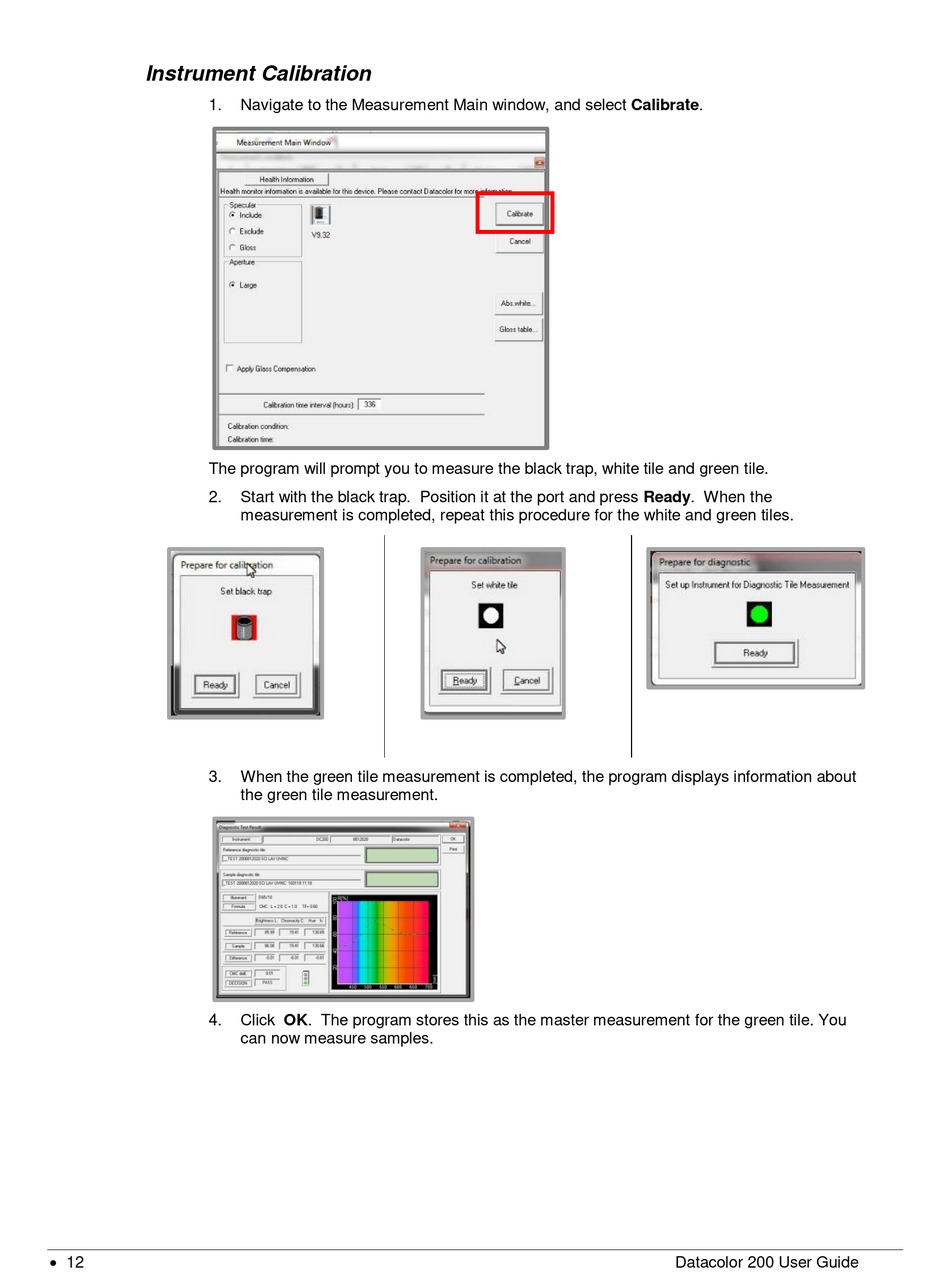

Instrument Calibration
1.
The program will prompt you to measure the black trap, white tile and green tile.
2.
3.
4.
 12
Navigate to the Measurement Main window, and select Calibrate.
Start with the black trap. Position it at the port and press Ready. When the
measurement is completed, repeat this procedure for the white and green tiles.
When the green tile measurement is completed, the program displays information about
the green tile measurement.
Click OK. The program stores this as the master measurement for the green tile. You
can now measure samples.
Datacolor 200 User Guide
