RGBlink UMS4 plus User Manual page 15

Configuration Setting

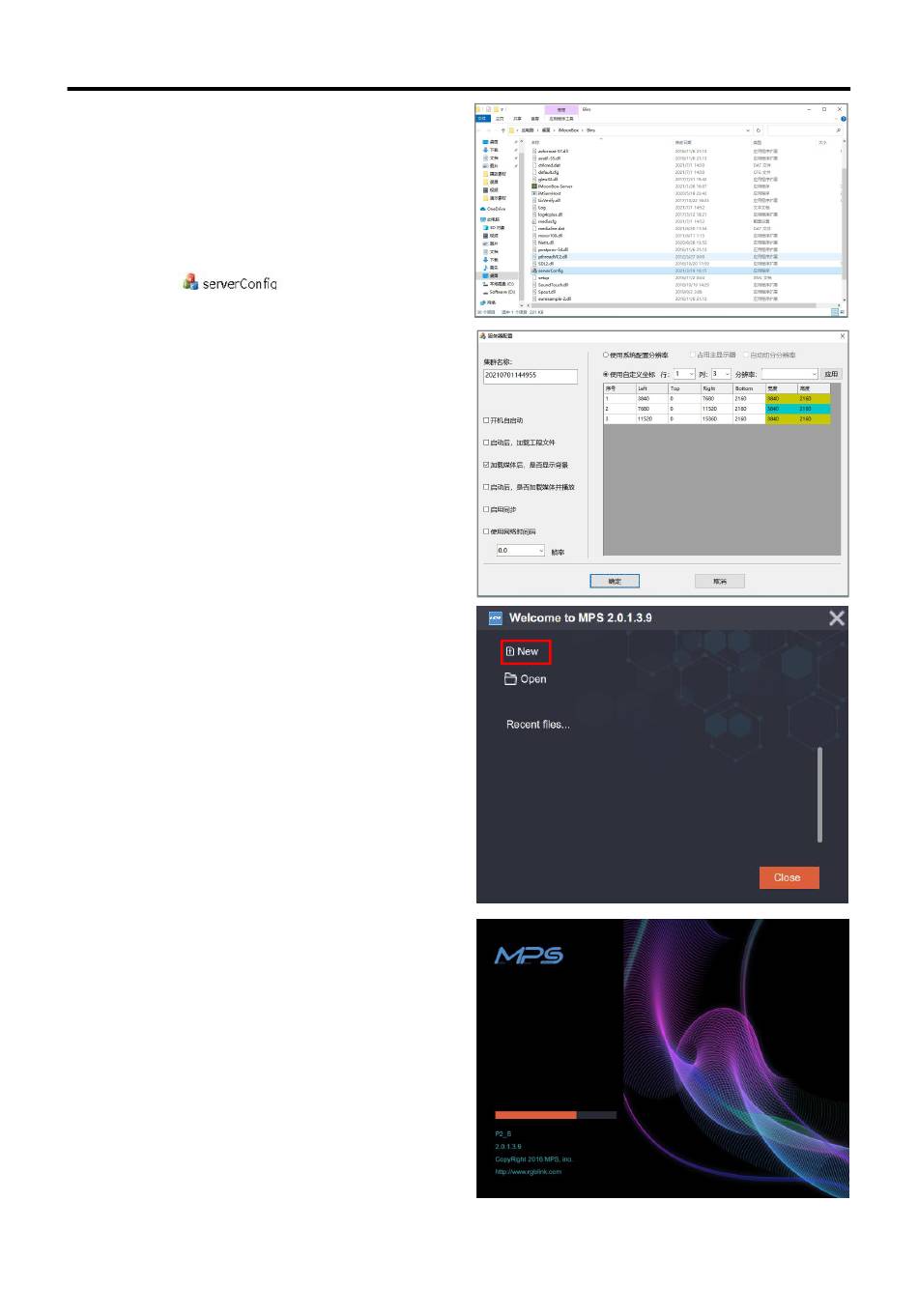

2. Right-click the MPS plus icon,open the location of the
file.
3. Click the icon
menu.
1. Adjust the location
Left:fill in the width of the main monitor,for example,the
width is 3840
Right:fill in the total width of monitors,for example,single
monitor width is 3840,and the total width of 4 monitors is
15360.
Bottom:fill in the height of monitor
After setting,click"OK"to confirm.
After configuration settings,click the Client icon to enter
MPS software
Click"New"
Fill in the file name and save the file on your computer.
Settings on the software will be saved in the file and you
can directly load the file next time.
Now you will enter MPS plus boot interface.
UMS4 plus
to enter the configuration
User Manual
15
