Setting a time program day-by-day.
TAC AB, Feb 2000
P:09 Time program 1, day-by-day
P:10 Time program 1, 1-7 days
P:11 Time program 2, day-by-day
P:12 Time program 2, 1-7 days
The digital clock has two time programs, TP 1 and TP 2.
TP 1 is used to switch between Day and Night time operation. TP 2
may be used for any suitable purpose.
Both can be individually set for each of the days in the week with a
precision of 30 minutes. By picking suitable on/off times, operation will
always occur within 15 minutes of any desired time value.
TP 1 is set by using either P:09 or P:10.
TP 2 is set by using either P:11 or P:12.
To set a time program, day-by-day:
1. Select P:09 (TP 1) or P:11 (TP 2).
2. Use the toggle-key (0/ l) to
– fill the segment for Active output
– clear the segment for Passive output
The flashing segment will also move to the next position.
3. Move the flashing segment with the + or – keys, if necessary.
4. The day is automatically switched when you leave the last segment
(or the first, backwards).
5. Enter the segments for all the days of the week.
6. To execute the changes, you must press either P
you are finished !
Day the entry is valid for.
7 8 9
6
M O
5
4
P:09
3
2
1
0

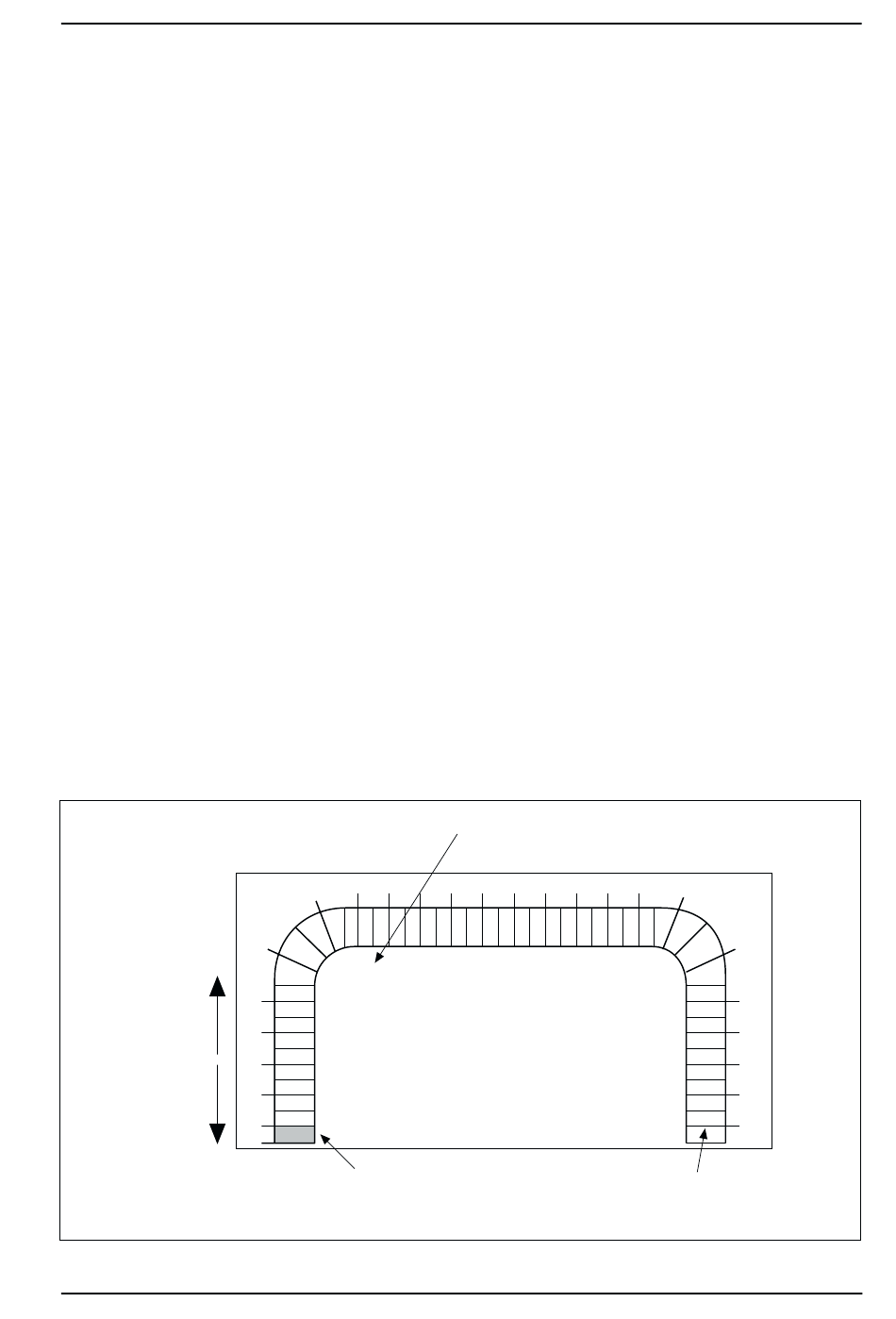

Flashing segment:
Toggle indication with 0/I key.
A filled segment indicates Active
operation.
11 13 14 15
10 12
Daily operations, P:00 - P:15
or P
up down
16
17
18
19
20
21
22
23
24
If you press + when the
segment is here, the
entry will switch to the
next day.
when
3:3
