t.a.c. Forta M400A Instructions Manual

t.a.c. Forta M400A Instructions Manual

Globe valve actuators

Advertisement

Quick Links

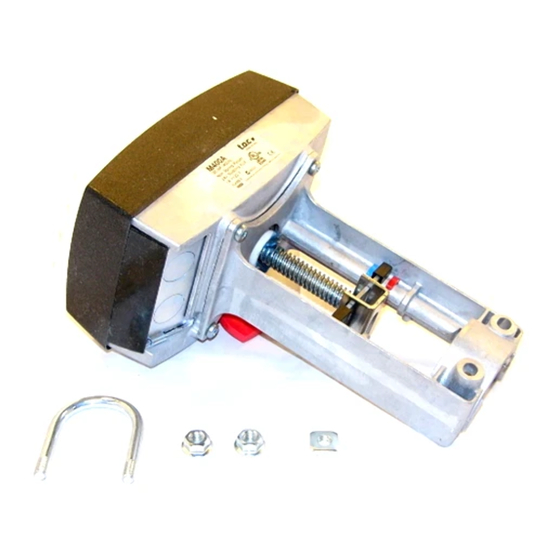

Forta M400A / M800A series Non-Spring Return linear actuators
are design to mount directly onto globe valves with linkage kits
ordered separately, M400A requires AV-811 linkage kit for
mounting to VB-7xxx valves and the M800A requires AV-811
linkage kit for mounting to VB-7xxx or AV-812 for mounting to
Applications include chilled or hot
VB-9313-0-5-xx valves.
water and steam. Field selectable input signals include
reverse and direct acting, Floating or Proportional 0-10, 2-
10 vdc or 4-20 ma with 500 ohm resistor (supplied) plus
proportional sequencing input signal ranges.
FEATURES
- Floating configuration controlled by a SPDT floating
controllers
- Proportional configuration 0-10, 2-10 vdc or 4-20 ma
with the addition of a 500 ohm resistor included
Direct/Reverse action switch selectable
- 90 lbf (400N) linear force
- 180 lbf (800N) linear force
- 24 Vac powered
- Die-cast housing with plenum rated plastic cover for
NEMA 2 (IP54) applications
- Manual override to allow positioning of valve
- Electronic valve sequencing and Electronic flow curve
(equal percentage or Linear) selection.
- Torque overload protection throughout stroke
- Easy "One Touch" input signal/stroke calibration
APPLICABLE LITERATURE
- Forta/VB-7xxx Selection Guide, F-27490
- Forta/VB-8xxx, VB-9xxx Selection Guide, F-27491
- AV-811 Linkage VB-7xxx, F-27442
- AV-812 Linkage VB-8xxx, VB-9xxx, F-27443
- AV-800 Series Linkage Adapters for Competitors
Valves, F-27470
TECHNICAL DATA, M400A / M800A
Model Chart
Model
Power
M400A
M400A-S2
24vac ±10%
50-60Hz
M800A
M800A-S2
* 4-20mA with 500 ohm resistor
Stroke
>3/8" to 2" (9-52mm)
Stroke Timing
Floating 60 or 300 sec selectable
Proportional 15 sec @1/2" stroke
Feedback AO
2-10 vdc
Power Supply Type
Half Wave
Motor Type
Brushless DC
Enclosure
NEMA 2 (IP 54) with both conduit
connectors used. NEMA 1 IP40 with
one connector used.
Sound Power Level
max 32 dba
Agency Listings
UL873, cULus, C-tick, CE
Subject to modification.
TAC Forta M400A / M800A
Globe Valve Actuators General Instructions
Transformer
Floating
Size VA
Control
Running VA
6
30
Yes
15
50
1 (10)
Proportional Control
Feedback
0-10vdc, 2-10vdc or
2-10vdc
4-20mA*
Ambient Temperature
Storage
-13 °F-+149 °F (-25- +65 °C) ambient
Operational
122 °F (50 °C) For Chilled water
applications
113 °F (45°C) ambient at 281 °F
(138°C) Fluid temperature
107 °F (42 °C) ambient at 300 °F
(149 °C) Fluid temperature
100 °F (38 °C) ambient at 340 °F
(171°C) Fluid temperature
90°F (32°C) ambient at 366 °F
(186 °C) Fluid temperature
Min. Operating Temp.
14 °F (-10 °C)
Ambient Humidity
15 to 95 % RH non condensing
Materials
Housing
Die-Cast Aluminum
Cover
UL94 plenum rated plastic
Weight
3.96 lb (1.8kg)
Dimensions
Figure 1
DIM119E
12 Mar 2008
2-SPDT Aux
Force lbf
Switch
No
90 (400 N)
24vac 4a res
No
180 (800 N)
24vac 4a res
F-27506-1
DIM119E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Forta M400A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for t.a.c. Forta M400A

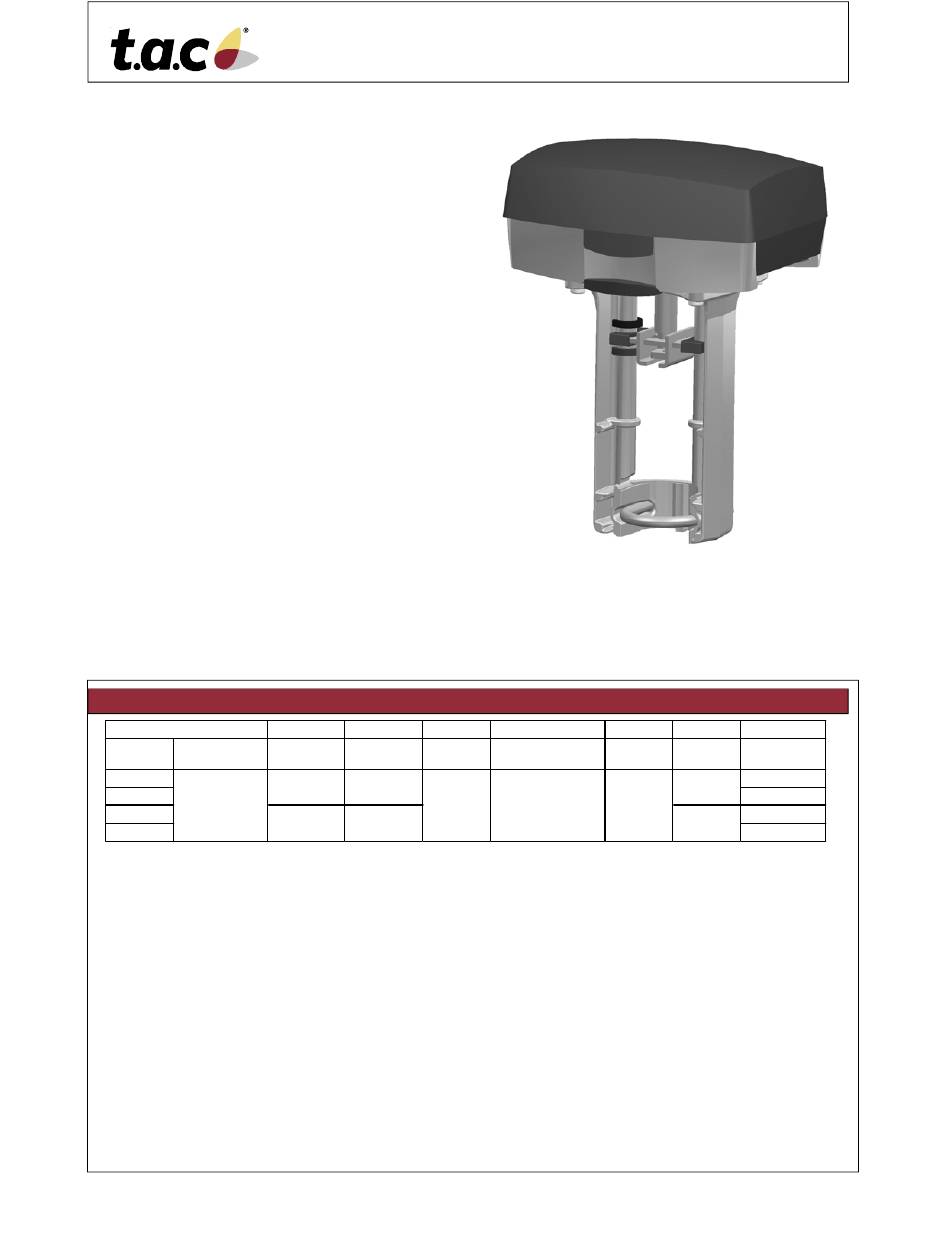

  • Page 1 DIM119E Globe Valve Actuators General Instructions 12 Mar 2008 Forta M400A / M800A series Non-Spring Return linear actuators are design to mount directly onto globe valves with linkage kits ordered separately, M400A requires AV-811 linkage kit for mounting to VB-7xxx valves and the M800A requires AV-811...
  • Page 2 3. Forta M400A / M800A actuators mount directly on two and three way VB-7xxx globe valves using the AV-811 linkage kit. The M800A may be mounted on VB- 9313-0-5-xx valves using AV-812 linkage kit.
  • Page 3 CONNECTIONS Cable Lengths: The wires to G, H Block Function Description Caution: For floating input signals the should be max of 328 ft (100m). min cables between the controller and the 24 vac power AWG 16, all other proportional input Forta should not exceed 328' (100m) 24 vac power...
  • Page 4: Wiring Examples

    WIRING EXAMPLES Figure 6 DIM119E F-27506-1 4 (10)
  • Page 5 Figure 7 5 (10) DIM119E F-27506-1...
  • Page 6 PROGRAM SWITCH SETTINGS Function in the Description “OFF” pos. “ON” position 1 Retract Extend (see sw7) Valve closing screw direction 2 Proportional Floating Control Mode 3 – Sequence Sequence control 4 0-10 V 2-10 V Input Voltage range 5 0-5 V, 2-6 V 5-10 V, 6-10 V Part of voltage range 6 60 s...
  • Page 7 VB-72XX Two Way Globe Valve, Forta Proportional Control Setup Reference Table 1 VB-72xx 2 way valves Forta M400A / M800A Base Proportional Configuration Valve Type Program Switch Position Desired Valve Operations Low end Valve position Input of signal at low signal...
  • Page 8 IF YOU CHANGE EITHER DIP SWITCH 1 or 7 TO GET A DIFFERENT CONTACT CLOSURE YOU WILL CHANGE THE EXTEND/RETEACT MOVEMENT OF THE ACTUATOR. VB-72XX Two Way Globe Valve, Forta Floating Control Setup Reference Table 4 VB-72xx 2 way valves Forta M400A / M800A Base Floating Configuration Valve Type Program Switch Position Input / Output Valve...
  • Page 9 VB-73XX Three Way Globe Valve, Forta Floating Control Setup Reference Table 5 VB-73x3 3 way valves Forta M400A / M800A Base Floating Configuration Valve Type Program Switch Position Desired Valve Operations Valve position with Power up Power to D2 Feedback...
  • Page 10: Actuator Installation

    ACTUATOR INSTALLATION Refer to AV-811 or AV-812 for complete mounting instructions Mount actuator as shown and firmly tighten the U-clamp with a 13 mm wrench. Remove cover and discard the shipping bubble wrap. Forta closes the valve and opens it When the end position adjustment is The switches on the circuit board fully.

This manual is also suitable for:

Forta m800aForta m400a-s2Forta m800a-s2
