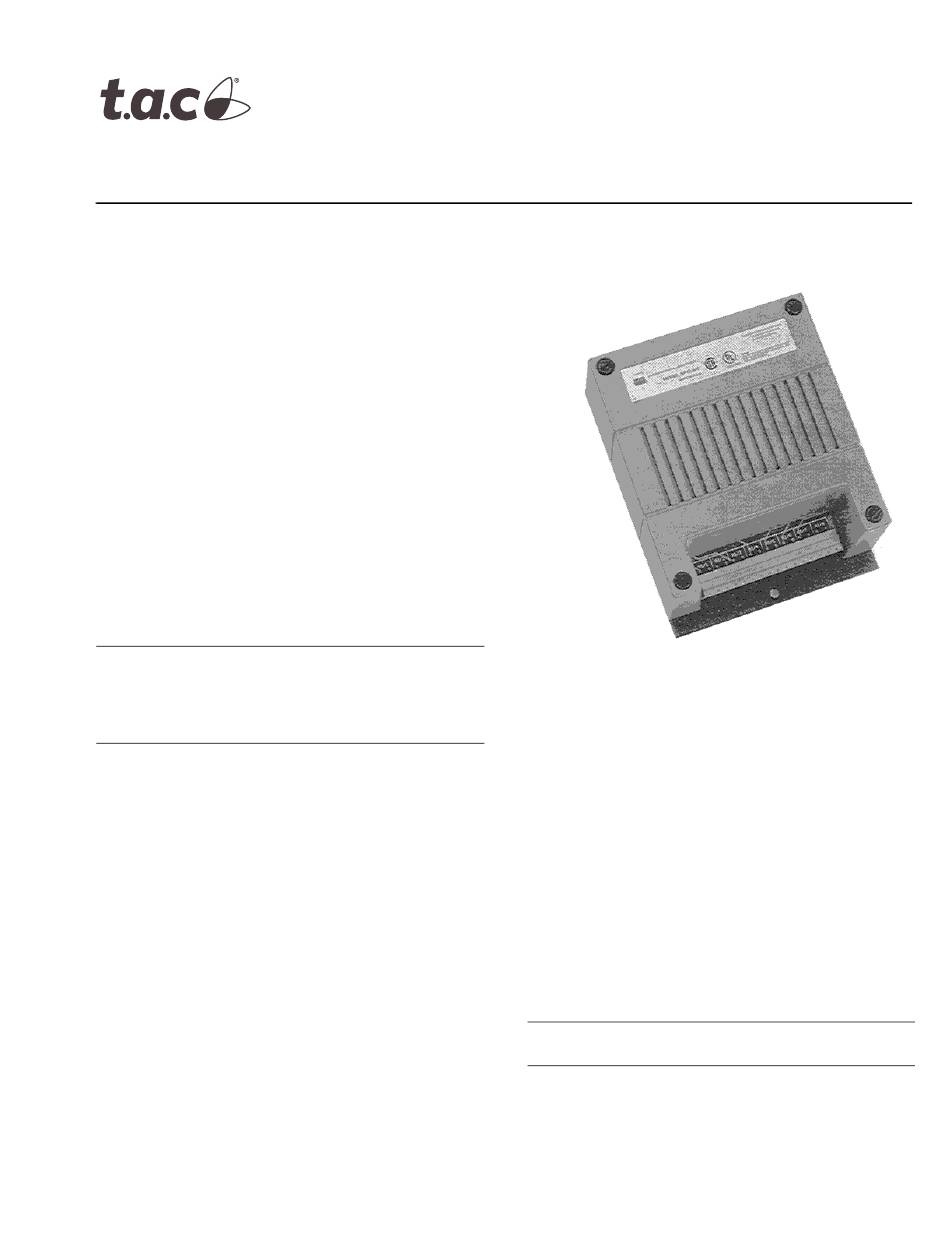

Application
The analog input module (MPC-8AI) is an expansion
module that plugs directly into any of the four option
slots available on the TAC MicroSmart Multi-purpose
Controller (MSC-MPC), providing additional analog
inputs to the MSC-MPC.
The MPC-8AI provides eight universal analog inputs
that can be configured as 1000 ohms Balco, 1000 ohm
platinum, 4-20 mA, 0-11 Vdc sensors, or status contact
inputs.
SPECIFICATIONS
Model No. MPC-8AI.
Agency Listings:
UL-916, Energy Management Equipment.
UL-873, Temperature Indicating and Regulating
Equipment.
UL-864, Smoke Control System Sub-assembly.
Complies with FCC Class "A" requirements.
Warning: Listed as a smoke control system sub-assembly.
Not to be used by itself or as part of a TAC MicroSmart
Control Network (RCM/NCM) in a smoke control application.
For smoke control applications, install in accordance with F-
25645, "TAC DMS Smoke Control Systems Manual".
Analog Inputs: 8 universal inputs individually configurable
for any of the following:
1000 Ohm Platinum Temperature Sensor, -40 to +240
°F @0.1 °F resolution (-40 to 115 °C @ 0.06 °C
resolution).
1000 Ohm Balco Temperature Sensor, -28.6 to +240
°F @ 0.1 °F resolution (-33.6 °C to +115 °C @ 0.06 °C
resolution).
0-11 Vdc, 0.005 volt resolution.
4-20 mA, 0.01 mA resolution.
Contact Inputs, Used for status monitoring of dry
contacts.
Operating Environment: 32 to 122 °F (0 to 50 °C), 5-85%
RH (non-condensing).
Power Requirements: MPC-8AI derives all operating
power from associated MSC-MPC.
Dimensions: 5" x 6.25".
Weight:
Net, 12-1/2 oz.
Shipping Weight, 13 oz.
Printed in U.S.A. 10/06
TAC
1354 Clifford Avenue
P. O. Box 2940
Loves Park, IL 61132-2940
www.tac.com
© Copyright 2006 TAC All Rights Reserved.
Multi-Purpose Controller
Installation Guidelines
FCC Guidelines
This equipment has been tested and found to comply with the
limits for a Class "A" digital device, pursuant to Part 15 of the
FCC rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Pre-Installation
Warning: To reduce risk of fire or electrical shock, install in
a controlled environment relatively free of contaminants.
Before beginning the installation process for the MPC-8AI,
visually inspect the unit for any obvious defects and to make
sure all parts are included. If any flaws are detected, contact
your local TAC office or authorized representative
immediately.
MPC-8AI
Analog Input Module
F-24853-4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for t.a.c. MPC-8AI
Summary of Contents for t.a.c. MPC-8AI
- Page 1 Analog Input Module www.tac.com Installation Guidelines Application The analog input module (MPC-8AI) is an expansion module that plugs directly into any of the four option slots available on the TAC MicroSmart Multi-purpose Controller (MSC-MPC), providing additional analog inputs to the MSC-MPC.

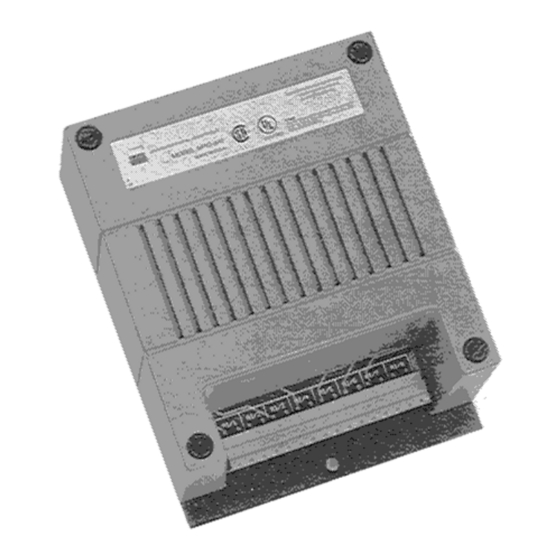

- Page 2 Figure-1 TAC MicroSmart MPC-8AI Analog Input Module. © Copyright 2006 TAC All Rights Reserved. F-24853-4...
-
Page 3: Installation
Do not attempt to power the unit ON until installation is complete. Installation The MPC-8AI is a module that fits into any of the four option slots on the MSC-MPC. To install, remove power from the Figure-2 Platinum RTD or Balco Resistance Temperature MSC-MPC and insert the MPC-8AI into the desired option slot Sensor. - Page 4 Wiring Length Error Table-1 Software Assignments for Temperature Input. The elements SCALE and OFSET are used to convert the INPNT = AI# (as shown below) /NOT resistance reading to the proper engineering units. These elements also provide a method of calibrating the sensor’s Option Slot # On The MSC-MPC Controller displayed value to any desired value, thus correcting the system for any errors that may result from wire length or other...
- Page 5 Table-2 illustrates the numbering scheme and software 1. From the C:\XCM directory, type MOCALC and press assignments of the eight 0-11 Vdc analog inputs. When ENTER. making these assignments, the first entry is the option slot 2. At the enter number prompt, type 1 to select Formulas for number on the connection MSC-MPC controller and the Scale and OFSET.
- Page 6 Contact Inputs Any of the universal analog inputs may also be configured as Any of the universal inputs on the MPC-8AI is capable of a 4-20 mA current signal input, as shown in Figure-6. monitoring a single normally open or normally closed contact input (excluding pulse inputs).
- Page 7 When Configured as a Normally Closed Contact Input Figure-6 Normally Closed Contact Input Wiring Information. Conditions are as follows: STOP when contact is closed when contact is open TROUBLE when conductor is shorted The software assignment required for the corresponding hardware address of the selected contact input is shown in Table-5 below.
- Page 8 Copyright 2006, TAC All brand names, trademarks and registered 1354 Clifford Avenue trademarks are the property of their respective P.O. Box 2940 owners. Information contained within this Loves Park, IL 61132-2940 document is subject to change without notice. F-24853-4 www.tac.com...
