ISL68201-99140DEMO1Z
Demonstration Board User Guide
The
ISL68201
is a single-phase synchronous buck PWM
controller featuring Intersil's proprietary R4™ Technology,
which has extremely fast transient performance, accurately
regulated frequency control and all internal compensation. The
ISL68201 supports a wide 4.5V to 24V input voltage range and
a wide 0.5V to 5.5V output range. It includes programmable
functions and telemetries for easy use and high system
flexibility using SMBus, PMBus, or I
ISL68201
datasheet for more details.
The
ISL99140
is a high performance DrMOS power stage
designed for high frequency power conversion. By combining a
high performance FET driver and MOSFETs in an advanced
package, high density DC/DC converters may be created.

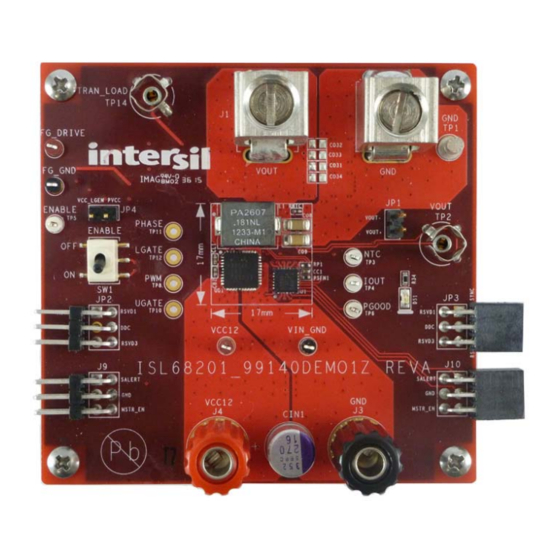

The ISL68201-99140DEMO1Z is a 6-layer board
demonstrating a compact 17mmx17mm 35A synchronous
buck converter. Transient performance, fault protections,
DC/AC regulations, PMBus programming, power sequencing,
margining and other features can be evaluated using this
board.
The PMBus dongle (ZLUSBEVAL3Z), i.e., USB-to-PMBus™
adapter, and USB cable are included in the demonstration kit.
Intersil's PowerNavigator™ evaluation software can be
installed from Intersil's website and evaluate the full PMBus
functionality of the part using a PC running Microsoft
Windows 7 or 8.
References
•
ISL68201
datasheet
• AN1900, "USB to PMBus™ Adapter"
• Intersil's
PowerNavigator™
2
I
C/
SMBus/
PMBus
PGOOD
EN
VCC
UG068 Rev 0.00
March 10, 2016
2
C interface. See the
User Guide
1.0µF
VCC
PVCC
VIN
7VLDO
1.0µF
SALERT
SCL
SDA
FCCM
PGOOD
PWM
EN
LGIN
IOUT
VCC
NTC
4
PROG1-4
CSEN
CSRTN
VSEN
RGND
GND

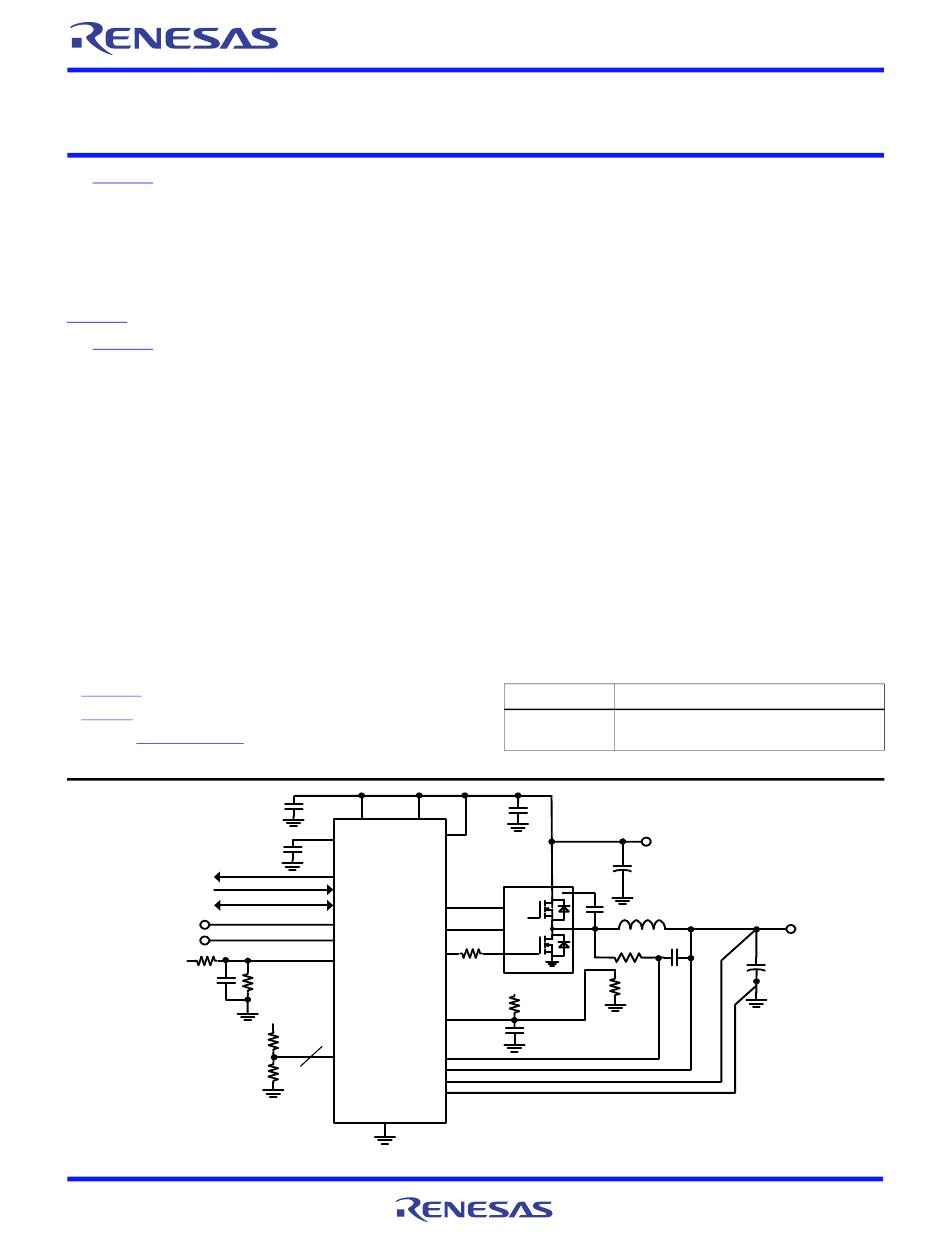

FIGURE 1. ISL68201-99140DEMO1Z SIMPLIFIED SCHEMATIC
USER'S MANUAL
Key Features
• 35A synchronous buck converter with PMBus control
• On-board transient load with adjustable di/dt
• Configurable through resistor pins
• Cascadable PMBus connectors
• Integrated LDOs for single rail solution
• Enable switch and power-good indicator
• All ceramics solution with SP capacitor footprint option
Target Specifications
• V
= 4.75V to 14.5V
IN
• V
= 1V/35A full load
OUT
• f
= 400kHz
SW
• Peak efficiency:
- 88.3% at 15A/1V
- 94.5% at 10A/2.5V
• Output regulation: 1V ±8mV
• I/O capacitor rating: C
• Compact size: 17mmx17mm
• With or without PMBus/SMBus/I
Ordering Information
PART NUMBER
ISL68201-
ISL68201-99140 demonstration kit
99140DEMO1Z
(demonstration board, dongle, USB cable)
4.7µ F
ISL99140
BOOT
UG
PWM
PHASE
LG
100
10k
VCC
NTC
1.54k
NCP18XH103J03RB
0.1µF
BETA = 3380
March 10, 2016
/12V
OUT
IN
/5V
OUT
IN
- 16V; C
- 4V
IN
OUT
2
C capability
DESCRIPTION
4.75 TO 15V
‐
V
< 7VLDO 1.7V
OUT
0.5V TO 2.5V
Page 1 of 23
UG068
Rev 0.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL68201-99140DEMO1Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas ISL68201-99140DEMO1Z

Summary of Contents for Renesas ISL68201-99140DEMO1Z

  • Page 1 Target Specifications package, high density DC/DC converters may be created. • V = 4.75V to 14.5V The ISL68201-99140DEMO1Z is a 6-layer board demonstrating a compact 17mmx17mm 35A synchronous • V = 1V/35A full load buck converter. Transient performance, fault protections, •...
  • Page 2 4. Turn the power supply on. The ISL68201-99140DEMO1Z board can run by itself without a 5. Set ENABLE switch to “ON” position. series bus communication. The operational configuration is fully 6. Increase power supply current limit enough to support more programmable via the programming pins (PROG1-4).

  • Page 3: Load Transient

    The default programming pin settings of the The on-board transient load can be controlled by a function ISL68201-99140DEMO1Z board can be found at the resistor generator, whose inputs are connected to FG_DRIVE2 and reader table on the upper right corner of “ISL68201-...

  • Page 4: Design Modifications

    ISL68201-99140DEMO1Z Design Modifications application cases with 5V and 3.3V output voltages. Some fine tuning might be needed depending upon the rework and final When modifying the design, it will require a new set of L/DCR layout design. matching for different inductor, divider on the PROG pins for For the 5V input voltage applications with 4.5V <...
  • Page 5 ISL68201-99140DEMO1Z Design and Layout TABLE 2. DESIGN AND LAYOUT CHECKLIST (Continued) Considerations NOISE NAME SENSITIVITY DESCRIPTION To ensure a first pass design, the schematics design must be SCL, SDA 50kHz to 1.25MHz signal when the SMBus, done correctly and the board must be carefully laid out.
  • Page 6 ISL68201-99140DEMO1Z TABLE 2. DESIGN AND LAYOUT CHECKLIST (Continued) TABLE 3. TOP LAYOUT TIPS NOISE NUMBER DESCRIPTION NAME SENSITIVITY DESCRIPTION The layer next to controller (top or bottom) should be a ground PROG1-4 Resistor divider must be referenced to VCC pin layer.
  • Page 7 BOOT VOTLAGE = 1V PROG1 PROG2 PFM DISABLED, TCOMP=15degC, ADDR = C0/C1h uSPFM Disabled, OCP/OTP Retry, 400kHz, AV= 42 PROG3 PROG4 SS = 1.25mV/us; RR = 200k Ohm; AVMLTI = 1X FIGURE 6. ISL68201-99140DEMO1Z 1V AT 35A BUCK SOLUTION SCHEMATICS (1 OF 2)
  • Page 8 ISL68201-99140DEMO1Z Schematics (Continued) DNP these and leave the holes for probes R12 = 9.09K for typical POR = 10.08V/9.12V; R12 = 24.9K for typical POR = 4.21V/3.81V VOUT PGOOD Place Connection of VOUT and GND to the Remote Sensing LED LIGHT...

  • Page 9: Bill Of Materials

    ISL68201-99140DEMO1Z Bill of Materials REFERENCE DESIGNATOR DESCRIPTION PCB FOOTPRINT MANUFACTURER PART NUMBER R4 Wrapper QFN24_157X157_197_EPC INTERSIL ISL68201IRZ-REVC 40A DrMOS PWR MODULE EPQFN40_6X6 INTERSIL ISL99140IRZ CIN1 270µF/16V/8x9/10mΩ CAPR_315X275_150_P SANYO 16SEPC270MX 4.7µF/6.3V/X5R SM0603 VENKEL C0603X5R6R3-475KNE C2, C3 1.0µF/16V/X7R SM0402 C1005X5R1C105K050BC 1µF/6.3V/X5R SM0402...
  • Page 10 ISL68201-99140DEMO1Z Bill of Materials (Continued) REFERENCE DESIGNATOR DESCRIPTION PCB FOOTPRINT MANUFACTURER PART NUMBER J1, J2 Screw Terminal B2C-PCB INTERNATIONAL B2C-PCB HYDRAULICS INC Female Banana Jack, Black 111-07xx-001 JOHNSON 111-0703-001 COMPONENTS Female Banana Jack, Red 111-07xx-001 JOHNSON 111-0702-001 COMPONENTS J8, J9...

  • Page 11: Performance Data

    ISL68201-99140DEMO1Z Performance Data SLOPE = 1 -0.1 -0.2 -0.3 -0.4 -0.5 -0.6 LOAD CURRENT (A) FIGURE 8. TYPICAL DIGITAL OUTPUT CURRENT VOUT=0.8V VOUT=1V VOUT=0.8V VOUT=1V VOUT=1.2V VOUT=1.5V VOUT=1.2V VOUT=1.5V VOUT=1.8V VOUT=2.5V VOUT=1.8V VOUT=2.5V 0 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25 27.5 30 32.5 35 0 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25 27.5 30 32.5 35...
  • Page 12 ISL68201-99140DEMO1Z Performance Data (Continued) VOUT=0.8V VOUT=1V VOUT=0.8V VOUT=1V VOUT=1.2V VOUT=1.5V VOUT=1.2V VOUT=1.5V VOUT=1.8V VOUT=2.5V VOUT=1.8V VOUT=2.5V 0 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25 27.5 30 32.5 35 0 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25 27.5 30 32.5 35...
  • Page 13 ISL68201-99140DEMO1Z Performance Data (Continued) 100mV/DIV 100mV/DIV 10V/DIV 10V/DIV 100µs/DIV 100µs/DIV FIGURE 19. V RAMP-UP FROM 0.5V TO 1V IN PWM MODE FIGURE 20. V RAMP-DOWN FROM 1V TO 0.5V IN PWM MODE (CH1-VOUT, CH2-PHASE) (CH1-VOUT, CH2-PHASE) 100mV/DIV 100mV/DIV 10V/DIV 10V/DIV 100µs/DIV...
  • Page 14 ISL68201-99140DEMO1Z Performance Data (Continued) 20V/DIV 20V/DIV 10A/DIV 10A/DIV 10V/DIV 10V/DIV 5µs/DIV 5µs/DIV FIGURE 25. STEP RESPONSE TO LOAD STEP AT PWM MODE, FIGURE 26. STEP RESPONSE TO LOAD RELEASE AT PWM MODE, = 1V, f = 400kHz, LOAD PROFILE: 0.25A TO = 1V, f = 400kHz, LOAD PROFILE: 0.25A TO...
  • Page 15 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout FIGURE 31. PCB - TOP ASSEMBLY UG068 Rev 0.00 Page 15 of 23 March 10, 2016...
  • Page 16 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 32. PCB - TOP LAYER UG068 Rev 0.00 Page 16 of 23 March 10, 2016...
  • Page 17 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 33. PCB - INNER LAYER 2 (TOP VIEW) UG068 Rev 0.00 Page 17 of 23 March 10, 2016...
  • Page 18 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 34. PCB - INNER LAYER 3 (TOP VIEW) UG068 Rev 0.00 Page 18 of 23 March 10, 2016...
  • Page 19 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 35. PCB - INNER LAYER 4 (TOP VIEW) UG068 Rev 0.00 Page 19 of 23 March 10, 2016...
  • Page 20 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 36. PCB - INNER LAYER 5 (TOP VIEW) UG068 Rev 0.00 Page 20 of 23 March 10, 2016...
  • Page 21 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 37. PCB - BOTTOM LAYER (TOP VIEW) UG068 Rev 0.00 Page 21 of 23 March 10, 2016...
  • Page 22 ISL68201-99140DEMO1Z ISL68201-99140DEMO1Z Board Layout (Continued) FIGURE 38. PCB - BOTTOM ASSEMBLY (TOP VIEW) UG068 Rev 0.00 Page 22 of 23 March 10, 2016...

  • Page 23: Sales Offices

    10. It is the responsibility of the buyer or distributor of Renesas Electronics products, or any other party who distributes, disposes of, or otherwise sells or transfers the product to a third party, to notify such third party in advance of the contents and conditions set forth in this document.
  • Page 24 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Renesas Electronics ISL68201-99140DEMO1Z ISL68201-99260DEMO1Z...
