ISL81802EVAL3Z
Evaluation Board

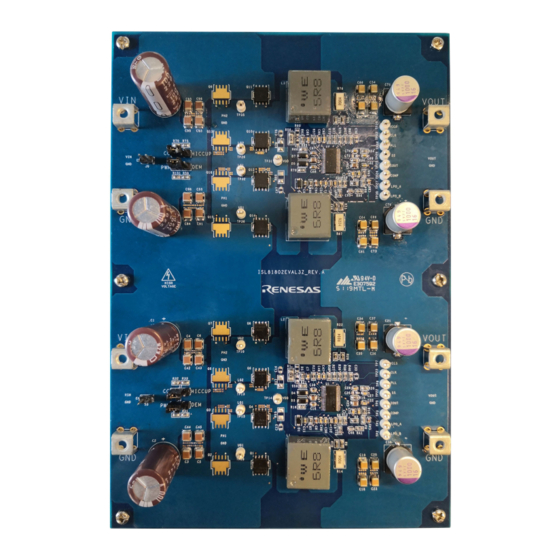

The ISL81802EVAL3Z 4-phase evaluation board (shown in
dual synchronous buck controller that offers external soft-start, independent enable functions, and integrates
UV/OV/OC/OT protection. A programmable switching frequency ranging from 100kHz to 1MHz helps optimize
inductor size while the strong gate driver delivers up to 40A for the buck output.
Key Features
• Wide input range: 18V to 80V
• High light-load efficiency in pulse skipping DEM operation
• Programmable soft-start
• Optional DEM/PWM operation
• Optional CC/HICCUP OCP protection
• Supports pre-bias output with soft-start
• PGOOD indicator
• OVP, OTP, and UVP protection
• Back biased from output to improve efficiency
The ISL81802EVAL3Z 4-phase evaluation board is designed for high current applications. The current rating of
the ISL81802EVAL3Z is limited by the FETs and inductor selected. The ISL81802EVAL3Z electrical ratings are
shown in
Table
1.
Table 1.
Electrical Rating
Parameter
Input Voltage
Switching Frequency
Output Voltage
Output Current
OCP Set Point
Ordering Information
Part Number
ISL81802EVAL3Z
Related Literature
For a full list of related documents, visit our website:
•
ISL81802
device page
R16UH0004EU0100 Rev.1.00
Sep.15.20
18V to 80V
200kHz
12V
40A
Minimum 44A at ambient room temperature
High Voltage Dual Buck Controller Evaluation Board
Figure
4) features the ISL81802, a 80V high-voltage
Rating
Description
User Manual
Page 1 of 19
