ISL73007SEHDEMO3Z
The ISL73007SEHDEMO3Z demonstration board
(shown in Figure 3) features the
regulator. This IC is a small foot print radiation
hardened POL designed for critical low power
applications.
The ISL73007SEH is operational over 3V to 18V
integrating both high-side and low-side power FETs
and switches at a default 500kHz frequency. The
switching frequency can also be programmed from
300kHz up to 1MHz using an external resistor. The
ISL73007SEH uses constant frequency peak current
mode control architecture for fast loop transient
response. The ISL73007SEH can use either its
internal compensation at the 500kHz default
switching frequency or an external Type II
compensation at other frequencies to stabilize the
loop as determined by specific design and
performance requirements. Integrating both P-
channel and N-channel power devices and with the
option of internal compensation, a minimum of
external components are required, thereby reducing
BOM count and complexity of design.
The ISL73007SEHDEMO3Z demonstration board
and this accompanying manual provide a quick and
easy method to evaluate the ISL73007SEH part, see
the ISL73007SEH datasheet for information about the
operation, function, and performance of the device.
R34UZ0005EU0101 Rev.1.01
May 19, 2023
ISL73007SEH
V
IN

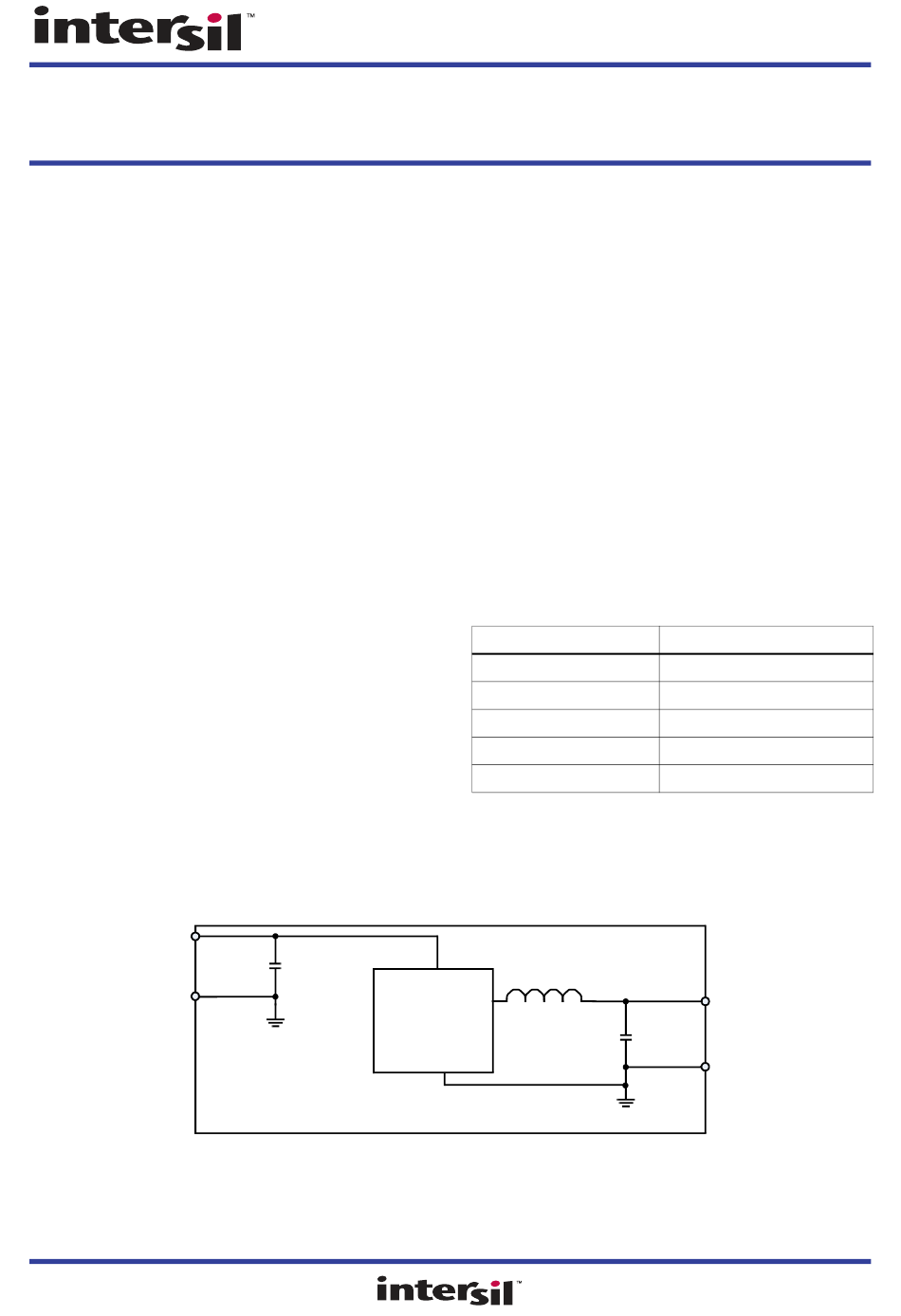

Figure 1. Block Diagram
Demonstration Board Manual
Features
buck
▪ Easy to use
▪ Optimized for 12V to 3.3V conversion, externally
set 500kHz switching frequency, external slope and
compensation configuration
▪ 3A Output current
Specifications
The ISL73007SEHDEMO3Z demonstration board is
by default externally configured for immediate
evaluation with minimum components and
connections, which allows for other conditions to be
evaluated with user modification of components and
connections.
The electrical ratings of the ISL73007SEHDEMO3Z
demonstration board are shown in
Parameter
PVIN Supply Voltage
DC Output Voltage
Operating Frequency
Output Current
Temperature
ISL73007SEH
Table
Table 1. Electrical Ratings
Rating
10.8V - 18V
500kHz
o
-55 C to +125
V
OUT
© 2023 Renesas Electronics
1.
3.3V
3A
o
C
Page 1
