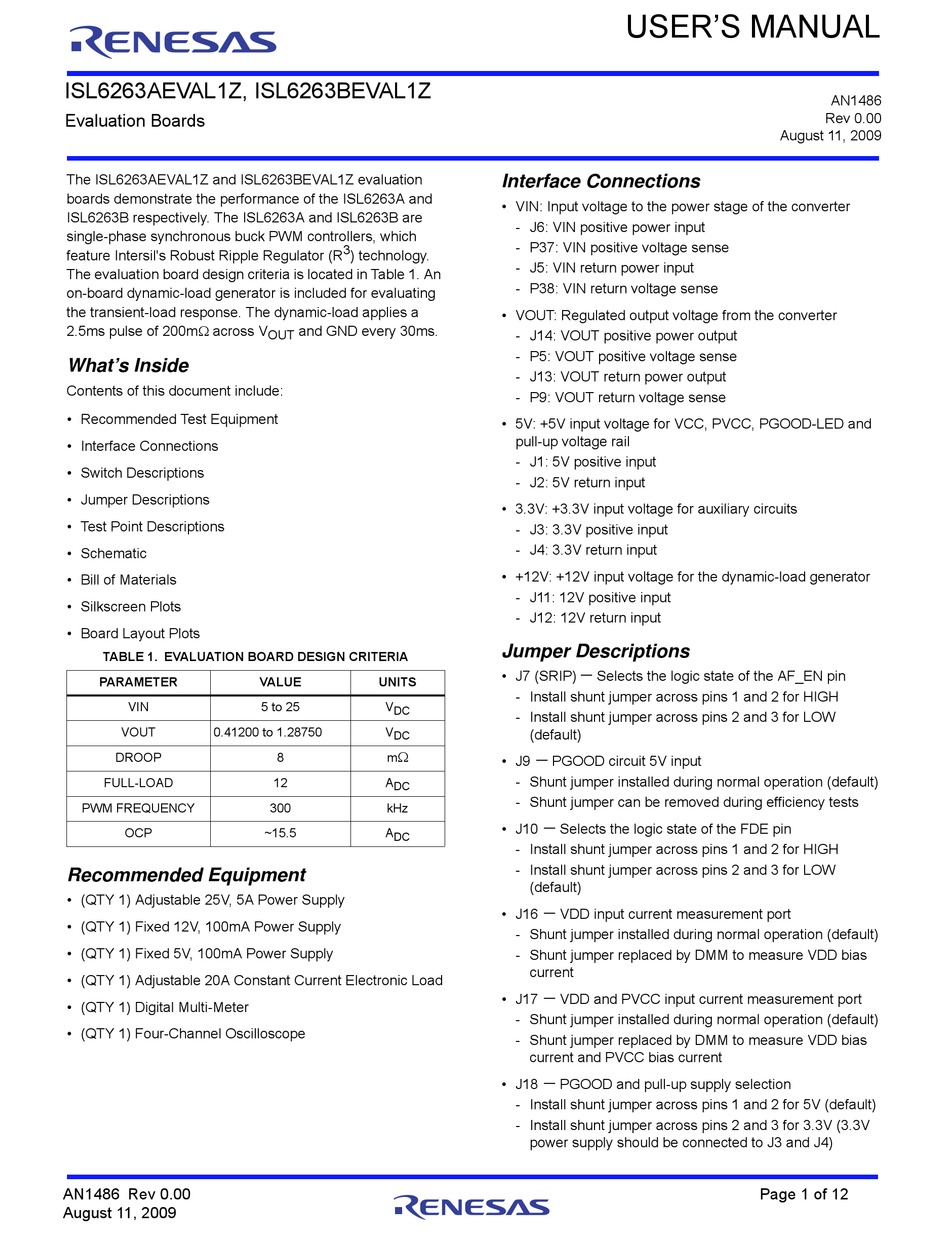

Renesas ISL6263AEVAL1Z User Manual

ISL6263AEVAL1Z, ISL6263BEVAL1Z
Evaluation Boards
The ISL6263AEVAL1Z and ISL6263BEVAL1Z evaluation
boards demonstrate the performance of the ISL6263A and
ISL6263B respectively. The ISL6263A and ISL6263B are
single-phase synchronous buck PWM controllers, which
feature Intersil's Robust Ripple Regulator (R
The evaluation board design criteria is located in Table 1. An
on-board dynamic-load generator is included for evaluating
the transient-load response. The dynamic-load applies a
2.5ms pulse of 200m across V
What's Inside
Contents of this document include:
• Recommended Test Equipment
• Interface Connections
• Switch Descriptions

• Jumper Descriptions

• Test Point Descriptions
• Schematic
• Bill of Materials
• Silkscreen Plots
• Board Layout Plots
TABLE 1. EVALUATION BOARD DESIGN CRITERIA
PARAMETER
VIN
VOUT 0.41200 to 1.28750
DROOP
FULL-LOAD
PWM FREQUENCY
OCP
Recommended Equipment
• (QTY 1) Adjustable 25V, 5A Power Supply
• (QTY 1) Fixed 12V, 100mA Power Supply
• (QTY 1) Fixed 5V, 100mA Power Supply
• (QTY 1) Adjustable 20A Constant Current Electronic Load
• (QTY 1) Digital Multi-Meter
• (QTY 1) Four-Channel Oscilloscope
AN1486 Rev 0.00
August 11, 2009
3
) technology.
and GND every 30ms.
OUT
VALUE UNITS
5 to 25 V
DC
V
DC

8 m
12 A
DC
300 kHz
~15.5 A
DC
USER'S MANUAL
Interface Connections
• VIN: Input voltage to the power stage of the converter
- J6: VIN positive power input
- P37: VIN positive voltage sense
- J5: VIN return power input
- P38: VIN return voltage sense
• VOUT: Regulated output voltage from the converter
- J14: VOUT positive power output
- P5: VOUT positive voltage sense
- J13: VOUT return power output
- P9: VOUT return voltage sense
• 5V: +5V input voltage for VCC, PVCC, PGOOD-LED and
pull-up voltage rail
- J1: 5V positive input
- J2: 5V return input
• 3.3V: +3.3V input voltage for auxiliary circuits
- J3: 3.3V positive input
- J4: 3.3V return input
• +12V: +12V input voltage for the dynamic-load generator
- J11: 12V positive input
- J12: 12V return input
Jumper Descriptions

• J7 (SRIP) Selects the logic state of the AF_EN pin
- Install shunt jumper across pins 1 and 2 for HIGH
- Install shunt jumper across pins 2 and 3 for LOW
(default)

• J9 PGOOD circuit 5V input
- Shunt jumper installed during normal operation (default)
- Shunt jumper can be removed during efficiency tests

• J10 Selects the logic state of the FDE pin
- Install shunt jumper across pins 1 and 2 for HIGH
- Install shunt jumper across pins 2 and 3 for LOW
(default)

• J16 VDD input current measurement port
- Shunt jumper installed during normal operation (default)
- Shunt jumper replaced by DMM to measure VDD bias
current

• J17 VDD and PVCC input current measurement port
- Shunt jumper installed during normal operation (default)
- Shunt jumper replaced by DMM to measure VDD bias
current and PVCC bias current

• J18 PGOOD and pull-up supply selection
- Install shunt jumper across pins 1 and 2 for 5V (default)
- Install shunt jumper across pins 2 and 3 for 3.3V (3.3V
power supply should be connected to J3 and J4)
AN1486
Rev 0.00
August 11, 2009
Page 1 of 12
