Profitec Pro700 Setup

Service settings for the PID-temperature regulation

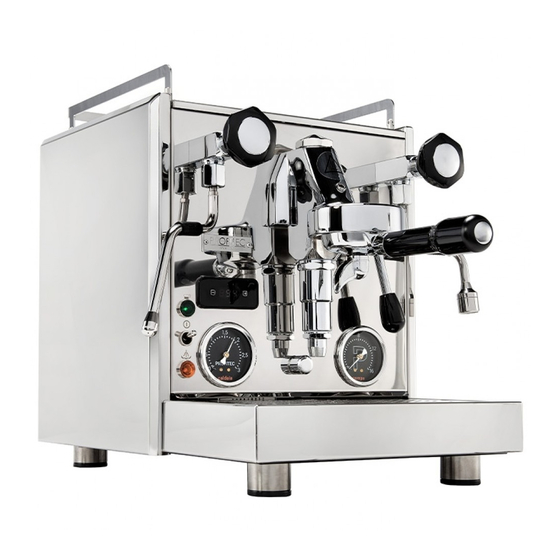

Profitec Pro700
Through the service modus of the PID-display, you have the possibility to customize the parameters of
the attached table according to your customer's wishes.
Setup
To set up the requested parameters, please proceed as follows:
1. Press + and -
Release the keys only after "F.01" is being displayed. The temperature of either boiler is not
important for programming, as both boilers are inactive during programming.
2. Press - to select the different parameter which are displayed in order. As soon as you have
reached "E3" and have again pressed
3. Press + in order to progress to the submenu of the currently selected parameter.
4. Quickly press +
5. After the set-up of the desired value please wait a short amount of time until the initially se-
lected parameter (e.g. "F.01") appears again.
6. To change another parameter, start over with step 2 again.
7. Turn off the machine once you have finished programming.
8. Wait at least 10 seconds before switching the machine on again.
9. The programmed values are now saved. Both boilers are activated (successively).
®
P R O F I T E C p r o f i - t e c h n i s c h e P r o d u k t e G m b H
T EL +4 9 ( 0) 6 2 2 3 / 9 2 0 5 - 0 • F AX +4 9 ( 0 ) 62 2 3 / 9 2 0 5 - 5 0 • E- MAI L i n f o @p r o fi t e c -e s p r e s s o. c o m • UST - I D DE 14 3 4 5 2 59 5
GESCHÄFTSFÜHRER Michael Reiß • Michael Hauck • GERICHTSSTAND Heidelberg • HRB 332344 Registergericht Mannheim
simultaneously while the machine is switched off and switch the machine on.
- you will start with "F.01" once more.
to increase and - to decrease the desired value.
