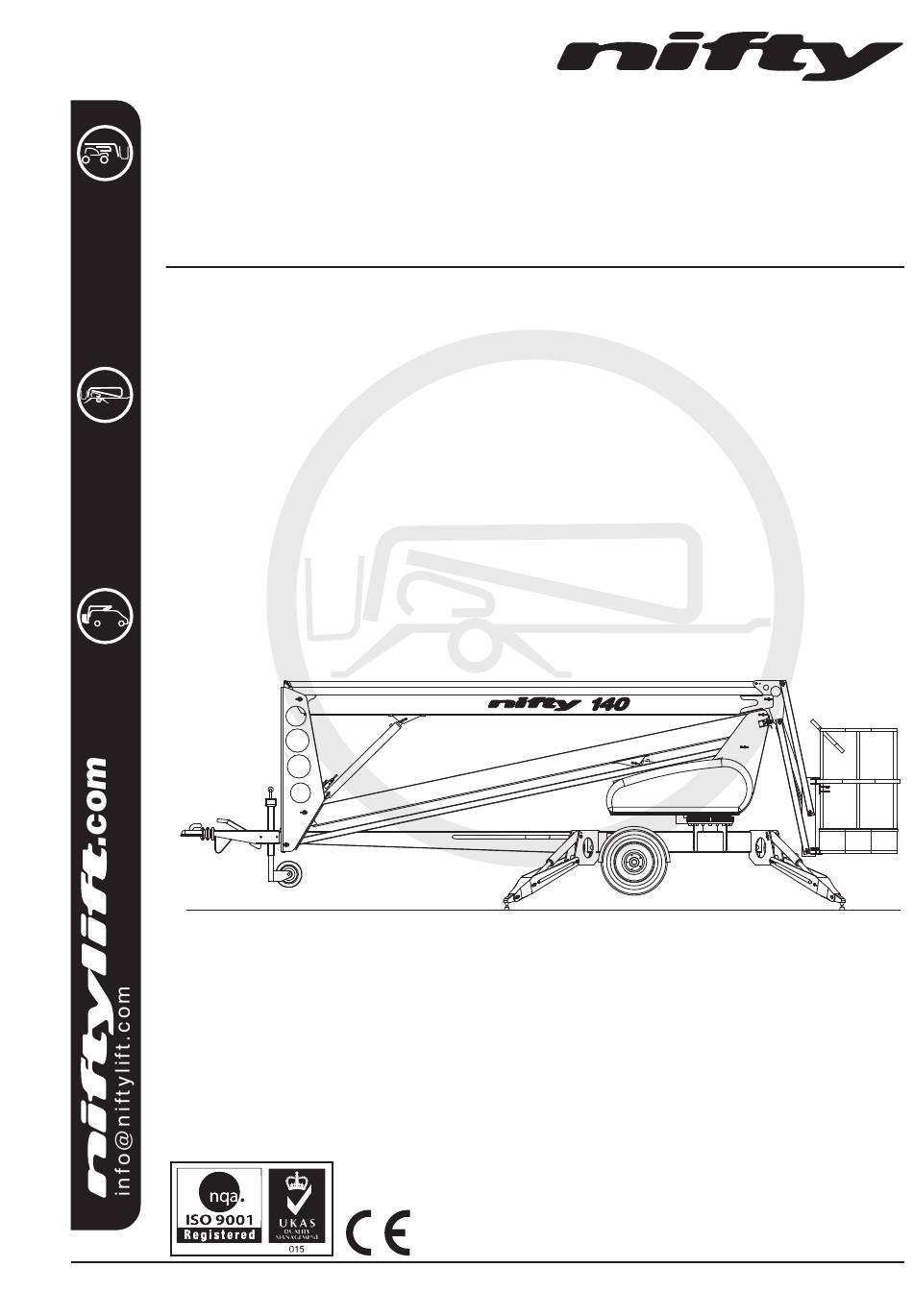

- Page 1 140/TM40 Operating and Safety Instructions MODEL 140 (TM40) SERIES Manufactured by: Niftylift Limited Fingle Drive Stonebridge Milton Keynes MK13 0ER England www.niftylift.com e-mail: info@niftylift.com Tel: +44 (0)1908 223456 Fax: +44 (0)1908 312733 M50131/04...
-
Page 3: Table Of Contents
TM Series Operating & Safety Instructions Table of Contents INTRODUCTION AND GENERAL INFORMATION PAGE 1.1 Foreword 1.2 Scope 1.3 Introducing the 140 Trailer Mount (TM) Series 1.4 General Specification 1.5 Identification SAFETY 2.1 Mandatory Precautions 7-10 2.2 Environmental Limitations 2.3 Noise & Vibration PREPARATION AND INSPECTION 3.1 Unpacking 3.2 Preparation for Use... -
Page 4: Introduction And General Information Page
TM Series Operating & Safety Instructions Introduction and General Information FOREWORD The purpose of these manuals is to provide the customer with appropriate safety operating and maintenance instructions essential for proper machine operation. All information in these manuals should be READ and fully UNDERSTOOD before any attempt is made to operate the machine. -
Page 5: Scope
Niftylift Inc, 32 Concourse Way, Greer, SC 29651 USA Tel: +01 864 968 8881 Fax: +01 864 968 8836 Nifty Pty Ltd, 11 Kennington Drive, Tomago, NSW 2322, Australia Tel: +61 (0) 2 4964 9765 Fax: +61 (0) 2 4964 9714 The Niftylift 140 trailer mount is an extremely versatile articulated boom platform of unique and simple design. -
Page 6: General Specification
TM Series Operating & Safety Instructions GENERAL SPECIFICATION FEATURE N140H (TM40) MAXIMUM HEIGHT - WORKING 14.3m 46ft 8ins MAXIMUM HEIGHT - PLATFORM 12.3m 40ft 4ins MAXIMUM HEIGHT - STOWED 1.98m 6ft 6in MAXIMUM OUTREACH 6.3m 20ft 8in MAXIMUM WIDTH - TOWING 1.6m 5ft 3in JACK SPREAD... -
Page 7: Identification
TM Series Operating & Safety Instructions IDENTIFICATION IFTYLIFT LTD. FI GLE DRIVE, STO EBRIDGE MILTO KEY ES MK13 0ER E GLA D TEL 01908 223456 : FAX 01908 312733 e-mail : info@niftylift.com SERIAL o TYPE YEAR OF MA UFACTURE WEIGHT RATED LOAD PERSO S MAXIMUM SAFE WORKI G LOAD... - Page 8 TM Series Operating & Safety Instructions 1.5a IDENTIFICATION (USA PLATE) IFTYLIFT LTD. FI GLE DRIVE, STO EBRIDGE MILTO KEY ES MK13 0ER GREAT BRITAI TEL (01144)1908 223456 : FAX (01144) 1908 312733 e-mail : info@niftylift.com THIS WORK PLATFORM COMPLIES WITH A SI STA DARD A 92- MODEL SERIAL O YEAR OF MA UFACTURE...
-
Page 9: Safety
TM Series Operating & Safety Instructions Safety MANDATORY PRECAUTIONS When operating your Niftylift, your safety is of utmost concern. In order to fully appreciate all aspects of the machines operation it should be ensured that each operator has READ and fully UNDERSTOOD the relevant manual covering machine use, maintenance and servicing. - Page 10 TM Series Operating & Safety Instructions 2.1.9 Never position any part of the Niftylift within 4.0m, (12ft) of any electrical power line, conductor or similar not exceeding 66kV. (Minimum span 125m) Other distances for increased voltages and different spans are given in NZECP 34:1993. THIS MACHINE IS NOT INSULATED.
- Page 11 TM Series Operating & Safety Instructions 2.1.22 The operator shall immediately report to his superior any problems or malfunctions of the Niftylift, which becomes evident during operation. Any problems or malfunctions that affect the safety of operation shall be repaired prior to continued use. 2.1.23 The boom and platform of the Niftylift shall not be used to jack the wheels off the ground.
-
Page 12: Environmental Limitations
TM Series Operating & Safety Instructions ENVIRONMENTAL LIMITATIONS All Niftylift Trailer Mounts are limited to operation as previously described and any slopes must be adjusted by use of the outriggers and jacks. Unless specifically configured otherwise, the machine will have short time rating for operation in extreme temperatures, i.e. reduced battery cycle times for low temperatures such as freezers, food storage etc. -
Page 13: Preparation And Inspection
TM Series Operating & Safety Instructions Preparation and Inspection UNPACKING Since the manufacturer has no direct control over the shipping or carriage of any Niftylift it is the responsibility of the dealer and/or owner and/or hirer to ensure the Niftylift has not been damaged in transit and a Pre-operational Report has been carried out by a qualified engineer before the aerial platform is put into service. -
Page 14: Pre-Operational Safety Check Schedules
TM Series Operating & Safety Instructions PRE-OPERATIONAL SAFETY CHECK SCHEDULES Before use at the beginning of the work shift, the aerial platform shall be given a visual inspection and functional tests including, but not limited to the following. It is recommended that these be performed at regular intervals as indicated on each checklist. - Page 15 TM Series Operating & Safety Instructions 3.3.3 MONTHLY SAFETY CHECKS Check the engine oil level (if applicable). Check the wheel nuts (torque 80ft lbs / 110Nm). Check outriggers for condition, security and operation. Check that the slew worm is secure and correctly in mesh. Clean and re-grease. Inspect brakes for operation and wear.
-
Page 16: Placards, Decals And Installation
Emergency Hand Pump P19090 Cage Gate Warning P18335 General Warning P20330 Head Protection P14921 Serial Plate P15383 SWL 225kg P17328 Nifty 140 Grey P14599 Niftylift.com P14390 Push and Release P19092 General Notice P18863 Point Load P14963 Outriggers - Hydraulic P14841... - Page 17 TM Series Operating & Safety Instructions ITEM DESCRIPTION NUMBER Hand Crush P14782 Noise Warning 85dB P17124 Noise Warning 73dB P17123 E-Stop, Do not disable P14864 Cage Rotate P15634 Traction Drive – Release P18975 Blank Axle Plate P16190 Cage Control (P/PE) Cage weigh P17796 Non cage weigh P16369...
- Page 18 TM Series Operating & Safety Instructions English/USA – 10/06 Issue 04...
- Page 19 No Step P14785 Emergency Hand Pump P19090 General Warning P20330 Head Protection P14921 Serial Plate P15383 SWL 500lbs P17328 Nifty TM40 Grey P14613 Niftylift.com P14390 Point Load P14963 Outriggers - Hydraulic P14841 Outrigger Controls P14922 Hydraulic Controls – 4 lever P13299...
- Page 20 TM Series Operating & Safety Instructions Hand Crush P14782 Footswitch P14884 English/USA – 10/06 Issue 04...
-
Page 21: Torque Requirements
TM Series Operating & Safety Instructions TORQUE REQUIREMENTS SCREW QUALITY/SIZE Tightening torque in ft lbs (Nm) Grade 10.9 (10) (14) 18.5 (25) (35) M 10 (49) (69) M 12 (86) (120) M 14 (135) (190) M 16 (210) (295) M 18 (290) (405) WHEEL NUTS... -
Page 22: Operation
TM Series Operating & Safety Instructions Operation CONTROL CIRCUIT COMPONENTS 4.1.1 CONTROL BOARD: - Situated under the canopy, the control box contains all of the wiring and relays to control the machine operation. The control box is common between models with the same power source, and will contain, where appropriate, discrete fuses for the circuits concerned. -
Page 23: Setting Up Procedures
TM Series Operating & Safety Instructions SETTING UP PROCEDURES FAILURE TO DEPLOY THE OUTRIGGERS CORRECTLY COULD RESULT IN DEATH OR SERIOUS INJURY. ALL MODELS Read and fully comply with all safety precautions and operating instructions in the Operating and Safety manual and the warning decals on the machine. Position Niftylift on firm ground, bearing in mind range of boom movement so that any overhead obstructions or possible hazards such as, but not limited to, power cables, telephone lines, drains, manhole covers, etc. -
Page 24: Ground Control Operation
TM Series Operating & Safety Instructions GROUND CONTROL OPERATION ALWAYS ALLOW THE ENGINE TO WARM UP BEFORE OPERATING. 4.3.1 GROUND CONTROL INSTRUCTIONS ALL MODELS Check below, above and around the platform for any obstructions or hazards before operating any function. Ensure all red emergency stops are out. - Page 25 TM Series Operating & Safety Instructions 4.3.2 BOOM FUNCTIONS Push and hold green power button. Select lever 1, 2, 3 or 4 for desired boom function. 1 Operates Lower Boom UP for up DOWN for down. 2 Operates Upper Boom UP for up DOWN for down 3 Operates Fly Boom...
-
Page 26: Platform Control Operation
TM Series Operating & Safety Instructions PLATFORM CONTROL OPERATION NEVER START THE NIFTYLIFT IF YOU SMELL PETROL (GASOLINE), LIQUID PROPANE OR DIESEL. THESE FUELS ARE FLAMMABLE. BEFORE OPERATING THE NIFTYLIFT ENSURE THAT EACH OPERATOR HAS READ AND FULLY UNDERSTOOD THE OPERATING MANUAL. FAILURE TO DO SO MAY RESULT IN DEATH OR SERIOUS INJURY. - Page 27 TM Series Operating & Safety Instructions EMERGENCY PROCEDURES Push in red emergency stop to shut down all functions. Use emergency hand pump to provide motive power and manoeuvre the machine as normal using the hand levers (Platform or Base). PLATFORM CONTROL STATION (BI-ENERGY MODEL) 4.4.2 BOOM FUNCTIONS...
-
Page 28: Cage Weigh System
TM Series Operating & Safety Instructions CAGE WEIGH SYSTEM 4.5.1 MECHANICAL VERSION The Niftylift range of machines is available fitted with mechanical cage weigh systems. These are configured to sense a vertical cage overload, which when detected will halt the machine movement. No further use of the platform is then permitted until the overload has been removed. - Page 29 TM Series Operating & Safety Instructions 4.5.4 CALIBRATION If a closer examination of the system is required, typically for testing and approval, the safe working load should be placed in the cage, carefully weighing the test load to ensure accuracy. The addition of a 5kg weight, to any of the four corners of the cage, should sound the alarm.
- Page 30 TM Series Operating & Safety Instructions 4.5.5 INSPECTION The cage weigh system is controlled through the detection printed circuit board, part number P16164. This PCB is connected directly to a safety micro-switch and monitors the function of the cage weigh system.
- Page 31 TM Series Operating & Safety Instructions 4.5.7 REPLACEMENT If components are replaced, they must be genuine Niftylift parts. The accuracy and function of the cage weigh system relies on the like-for-like application of the component parts. A switch from a similar manufacturer might reverse the contact arrangement and critically affect the function of the mechanism.
-
Page 32: Batteries And Charging
TM Series Operating & Safety Instructions BATTERIES AND CHARGING BATTERIES MUST BE RECHARGED IN A WELL-VENTILATED AREA FREE OF FLAME, SPARKS OR OTHER HAZARDS THAT MAY CAUSE EXPLOSION. HIGHLY EXPLOSIVE HYDROGEN GAS IS PRODUCED DURING THE CHARGING PROCESS. Recharge batteries at the end of every working day or shift. (Note: To recharge batteries fully from flat takes approx. - Page 33 TM Series Operating & Safety Instructions Some Niftylifts are fitted with a Battery Management System, which permanently monitors the condition of the batteries. When the batteries become discharged to 20% of their capacity the management system will begin to "shut down" the hydraulic power packs. This causes the drive/boom operating system to alternately stop and start, signalling to the operator that re- charging is necessary.
-
Page 34: Transporting, Towing, Craneage, Storage And Setting To Work
TM Series Operating & Safety Instructions TRANSPORTING, TOWING, CRANEAGE, STORAGE AND SETTING TO WORK 4.7.1 TRANSPORTING If a work platform is to be moved over a longer distance, whether the machine is trailer mounted, vehicle mounted, self propelled or tracked, the following procedure should be read before restraints are attached to the machine. - Page 35 TM Series Operating & Safety Instructions 4.7.2 TOWING THE MAXIMUM RECOMMENDED TOWING SPEED OF A NIFTYLIFT IS 45 MPH (72 KMPH) WITH A VEHICLE THAT COMPLIES WITH ALL ROAD TRAFFIC REGULATIONS. SPEEDING MAY RESULT IN DEATH OR SERIOUS INJURY. It is recommended that the maximum towing speed of 45mph (72kmph) be adhered to for the greatest safety.
- Page 36 TM Series Operating & Safety Instructions 4.7.3 CRANEAGE Observe all of the limitations relating to straps and chains stated above under ‘Transporting’. (Section 4.7.1) When utilising the designated lifting points never apply a ‘snatch’ load, i.e. lift slowly to take up the load before raising.
- Page 37 TM Series Operating & Safety Instructions On completion of an extended period of road transport, the machine might need additional inspection to identify any transit degradation, which could render the machine unsafe. Perform a P.D.I. inspection on the unit before it enters service. Record any faults found and rectify them immediately.
-
Page 38: Traction Drive
TM Series Operating & Safety Instructions TRACTION DRIVE On those trailer machines equipped primarily with fixed width axles, a traction drive system is an available option. This function allows the machine to be manoeuvred by one man, and provides the machine with the capability of ascending or descending a slope of 10% (5.7 degrees). - Page 39 TM Series Operating & Safety Instructions 4.8.2 DISENGAGING DRIVE Unless the machine has been manoeuvred to allow it to be coupled to a towing vehicle (as described in the appropriate section of this handbook), before disengaging the traction drive system the parking handbrake must be fully engaged. On no account disengage the traction drive system unless the handbrake is engaged, the wheels are securely chocked or the machine is connected to a towing vehicle.
-
Page 40: Emergency Controls
TM Series Operating & Safety Instructions Emergency Controls GENERAL CHECKING THE OPERATION OF THE EMERGENCY CONTROLS EVERY DAY AND/OR BEFORE EACH SHIFT IS AN ESSENTIAL PART OF THE OPERATOR'S DUTIES The operator and all ground personnel must be thoroughly familiar with the location and operation of the EMERGENCY CONTROLS. -
Page 41: Inspection/ Service Check List
TM Series Operating & Safety Instructions Inspection/Service/Pre-Hire Check list MACHINE SERIAL NO TOWING PASS FAIL Operation of tow coupling Operation of handbrake Operation of jockey wheel STABILISERS Micro-switches secure Locating pins operating freely and oiled Stabilisers operate smoothly Operation of each micro-switch and klaxon (if fitted) Operation of jack control valve and buttons Operation of each hydraulic jack Operation of each micro-switch including siren... - Page 42 TM Series Operating & Safety Instructions SLEWING PASS FAIL Slew assembly and motor are secure Worm/wheel mesh correct, no excessive wear No end float of worm in housing Slew wheel bolts secured Slew guards secure PLATFORM Operation of control valve and buttons Operation of all booms over full range Cylinders are silent Platform levelling over full range...
