USER MANUAL

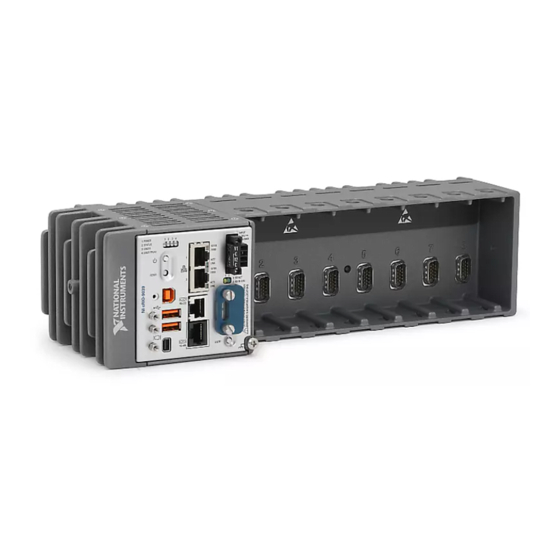

NI cRIO-9038
Embedded CompactRIO Controller with Real-Time Processor and
Reconfigurable FPGA
This document describes the features of the National Instruments cRIO-9038 and contains
information about mounting and operating the device.

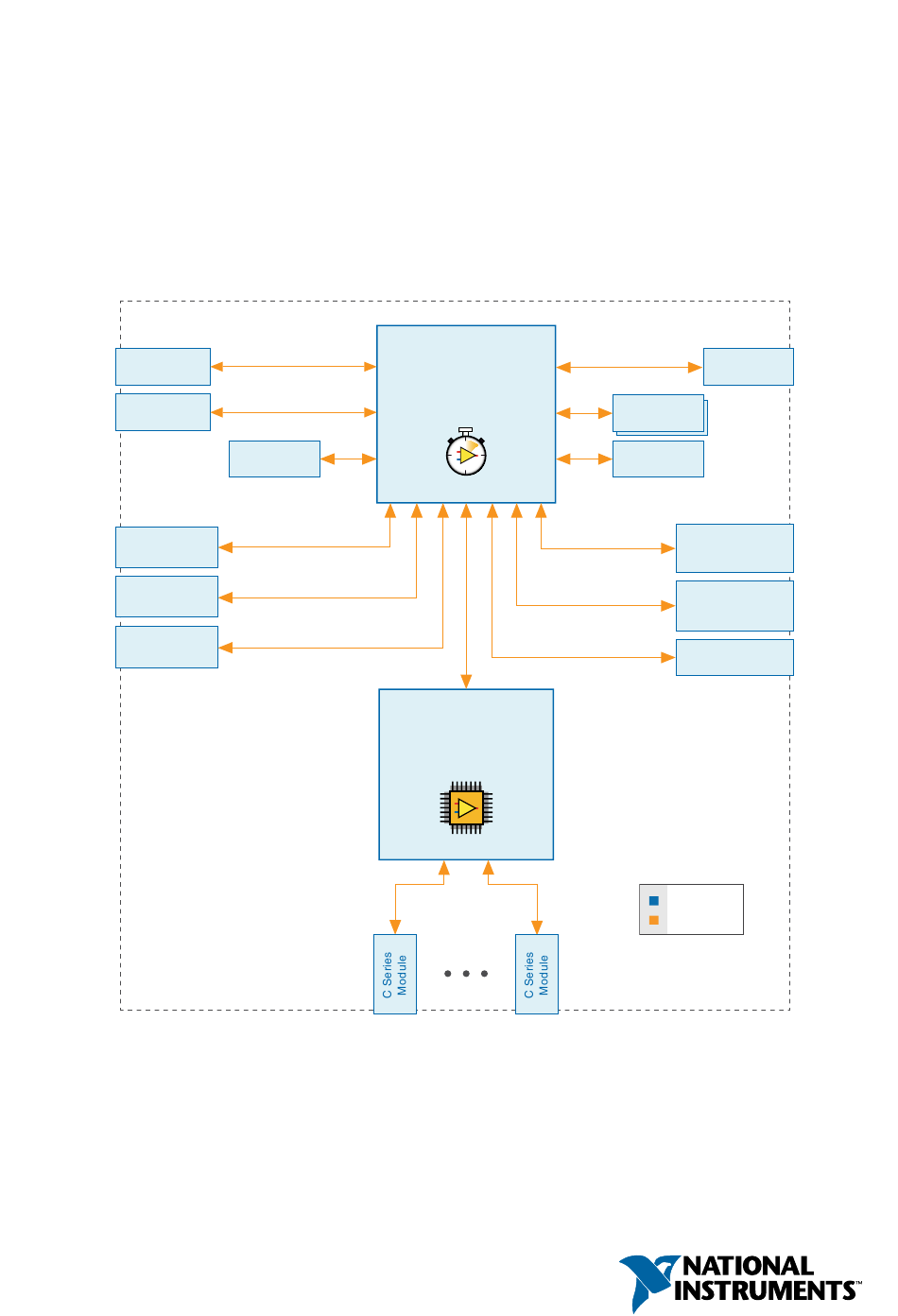

RJ-45 Gigabit
Ethernet Port 1
RJ-45 Gigabit
Ethernet Port 2
USB 2.0
Host Port
USB 2.0
Host Port
USB 2.0
Device Port
cRIO-9038
E3825 1.33 GHz Dual-Core
System-On-Chip
Watchdog
Intel Atom
+
+
Xilinx
Kintex-7 FPGA
7K160T
+
+
Mini
DisplayPort
2 GB DDR3L
8 GB SATA
Disk-On-Chip
RJ-50
RS-232
Serial Port
RJ-50
RS-485/422 (DTE)
Serial Port
SD Card
Slot
Hardware
Data

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cRIO-9038 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments cRIO-9038

Summary of Contents for National Instruments cRIO-9038

  • Page 1 USER MANUAL NI cRIO-9038 Embedded CompactRIO Controller with Real-Time Processor and Reconfigurable FPGA This document describes the features of the National Instruments cRIO-9038 and contains information about mounting and operating the device. RJ-45 Gigabit Intel Atom Mini Ethernet Port 1 DisplayPort E3825 1.33 GHz Dual-Core...

  • Page 2: Table Of Contents

    Worldwide Support and Services.................... 39 Configuring the cRIO-9038 You can connect the cRIO-9038 to a host computer or network and configure the startup options using the USB device port or the RJ-45 Gigabit Ethernet port 1 or port 2. Refer to the getting started guide on ni.com/manuals...

  • Page 3: Connecting The Crio-9038 To The Host Computer Or Network Using Ethernet

    NI-cRIO-9038-1856AAA. Finding the cRIO-9038 on the Network (Static IP) Complete the following steps to find the cRIO-9038 on the network if the host computer is using a static IP address. The following instructions are for host computers running Windows 7.

  • Page 4: Configuring Startup Options

    Click Properties. Record the IP address, Subnet mask, and Default gateway address. You need these settings to configure the network settings of the cRIO-9038 and to restore the network settings of the host computer. You can also access these settings by opening the Start menu,...
  • Page 5 Table 1. cRIO-9038 Startup Options Startup Option Description Force Safe Mode Rebooting the cRIO-9038 with this setting on starts the cRIO-9038 without launching LabVIEW Real-Time or any startup applications. In safe mode, the cRIO-9038 launches only the services necessary for updating configuration and installing software.

  • Page 6: Crio-9038 Features

    8. USB Device Port RJ-45 Gigabit Ethernet Ports The cRIO-9038 has two tri-speed RJ-45 Gigabit Ethernet ports. By default, both Ethernet ports are enabled and configured to obtain an IP address automatically. The Ethernet ports can be configured in MAX.
  • Page 7 18 Power Connector The cRIO-9038 has a power connector to which you can connect a primary and secondary power supply. The following table shows the pinout for the power connector. NI cRIO-9038 User Manual | © National Instruments | 7...
  • Page 8 If you apply power to both the V1 and V2 inputs, the cRIO-9038 operates from the V1 input. If the input voltage to V1 is insufficient, the cRIO-9038 operates from the V2 input.
  • Page 9 RS-232 Serial Port The cRIO-9038 has an RS-232 serial port that is implemented with an RJ-50, 10-position modular jack to which you can connect devices such as displays or input devices. Use the Serial VIs to read from and write to the serial port. Refer to the LabVIEW Help for information about the Serial VIs.
  • Page 10 No Connect You can use the Ring Indicator (RI) on pin 2 to wake the controller from a low-power state. You can drive RI with a logic level high to wake the cRIO-9038. Refer to the specifications on ni.com/manuals for the RI wake voltage.
  • Page 11 Using the Embedded UI to Access RT Target VIs topic in the LabVIEW Help. Caution Do not hot-swap Mini DisplayPort devices while the cRIO-9038 is in a hazardous location or connected to high voltages. The following table shows the pinout for the Mini DisplayPort.
  • Page 12 ML_Lane0(p) Hot Plug The following adapters are available to connect the Mini DisplayPort to full-size DisplayPort, VGA, or DVI. The cRIO-9038 only supports DVI single link. Refer to the cRIO-9038 pricing page on ni.com for a complete list of cables and accessories.
  • Page 13 20 Installing a Ferrite on the USB Cables You must install a ferrite around all USB cables connected to the USB host ports to ensure that the cRIO-9038 meets all EMC standards applicable to your country. What to Use •...

  • Page 14: Buttons

    Caution Do not hot-swap USB devices while the cRIO-9038 is in a hazardous location or connected to high voltages. If the cRIO-9038 is not in a hazardous location, you can connect and disconnect USB devices without affecting operation. The following table shows the pinout for the USB device port.
  • Page 15 Power Button The default behavior for the cRIO-9038 is to power on when you apply power to the controller and power off when you press and release the power button. The behavior of the power button can be configured in the BIOS.

  • Page 16: Leds

    The cRIO-9038 has a general-purpose USER1 button that is user-defined. You can read the state of the USER1 button from your LabVIEW FPGA application. CMOS Reset Button The cRIO-9038 has a CMOS reset button that you can use to reset the CMOS and the BIOS. LEDs The cRIO-9038 provides the following LEDs.
  • Page 17 Remove any shorts and cycle power the cRIO-9038. If the problem persists, contact NI. — The cRIO-9038 is in run mode. Software is installed and the operating system is running. NI cRIO-9038 User Manual | © National Instruments | 17...
  • Page 18 100 Mbit/s data rate selected — 10 Mbit/s data rate selected SD LED Indicators The cRIO-9038 has two LEDs that indicate the SD card drive mount status and activity. The following table lists SD LED indicators. 18 | ni.com | NI cRIO-9038 User Manual...

  • Page 19: Chassis Grounding Screw

    Figure 6. cRIO-9038 Chassis Grounding Screw 1. Chassis Grounding Screw For EMC compliance, you must connect the cRIO-9038 to earth ground through the chassis ground screw. Use wire that is 1.31 mm (16 AWG) solid copper wire with a maximum length of 1.5 m (5 ft).

  • Page 20: Internal Real-Time Clock

    CMOS BATTERY IS DEAD battery is dead. The cRIO-9038 still starts, but the system clock is reset to the date and time of the BIOS release. The battery is not user-replaceable. If you need to replace the CMOS battery, contact NI.

  • Page 21: Installing The Module Immobilization Accessory

    Torx T10 and T20. The other set is a tamper-resistant set of screws that require a security driver type, Torx T10H and T20H. Use the tamper-resistant set to help prevent unintended modification of the system. NI cRIO-9038 User Manual | © National Instruments | 21...

  • Page 22: Module Immobilization Accessory Dimensions

    Ensure that all the C Series modules are installed in the cRIO-9038 and the latches are locked in place. Remove the center right panel screw from the top and bottom of the cRIO-9038 using the Torx T10 driver. Slide the bracket into place, aligning the three clearance screw holes.

  • Page 23: Mounting The Device

    You can also mount the cRIO-9038 in other orientations, on a nonmetallic surface, on a 35-mm DIN rail, on a desktop, or in a rack. Mounting the cRIO-9038 in these or other configurations can reduce the maximum allowable ambient temperature and can affect the typical accuracy of modules in the cRIO-9038.

  • Page 24: Dimensions

    Mounting Requirements Your installation must meet the following requirements for cooling and cabling clearance. Allow 25.4 mm (1.00 in.) on the top and the bottom of the cRIO-9038 for air circulation, as shown in the following figure. 24 | ni.com | NI cRIO-9038 User Manual...

  • Page 25: Ambient Temperature

    Ambient Temperature Measure the ambient temperature at each side of the cRIO-9038, 63.5 mm (2.50 in.) from the side and 38.1 mm (1.50 in.) forward from the rear of the cRIO-9038, as shown in the following figure. NI cRIO-9038 User Manual | © National Instruments | 25...

  • Page 26: Mounting The Device Directly On A Flat Surface

    1. Location for measuring the ambient temperature Mounting the Device Directly on a Flat Surface For environments with high shock and vibration, NI recommends mounting the cRIO-9038 directly on a flat, rigid surface using the mounting holes in the cRIO-9038. What to Use •...
  • Page 27 Fasten the cRIO-9038 to the surface using the M4 screws appropriate for the surface. Screws must not exceed 8 mm of insertion into the cRIO-9038. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.).

  • Page 28: Mounting The Crio-9038 On A Panel

    Mounting the cRIO-9038 on a Panel You can use the NI panel mounting kit to mount the cRIO-9038 on a panel. What to Use • cRIO-9038 • Screwdriver, Phillips #2 • NI panel mounting kit, 157267-01 – Panel mounting plate –...

  • Page 29: Mounting The Crio-9038 On A Din Rail

    (1.00 in.) 147.3 mm (5.80 in.) 89.9 mm (3.54 in.) Mounting the cRIO-9038 on a DIN Rail You can use the NI DIN rail mounting kit to mount the cRIO-9038 on a standard 35-mm DIN rail. What to Use •...
  • Page 30 Align the cRIO-9038 and the DIN rail clip. Fasten the DIN rail kit to the cRIO-9038 using the screwdriver and M4 × 10 screws. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.).

  • Page 31: Mounting The Device On A Rack

    Mounting the Device on a Rack You can use the following rack mount kits to mount the cRIO-9038 and other DIN rail- mountable equipment on a standard 482.6 mm (19 in.) rack. • NI Sliding Rack-Mounting Kit, 779102-1 • NI Rack-Mounting Kit, 781989-01...

  • Page 32: Bios Configuration

    Align the brackets with the mounting holes on the ends of the cRIO-9038. Use the screwdriver to tighten the captive screws on the end of the brackets. Desktop Mounting Dimensions The following figures show the desktop mounting dimensions for the cRIO-9038.

  • Page 33: Power-On Self Test Warning Messages

    Use the BIOS setup utility to change configuration settings and to enable special functions. The cRIO-9038 ships with configuration settings that work for most applications, but you can use the BIOS setup utility to change configuration settings to meet the needs of your application.

  • Page 34: Main Setup Menu

    System Time—This setting controls the time of day, which is stored in a battery-backed real-time clock. Most operating systems also include a way to change this setting. Use <+> and <-> in conjunction with <Enter> and <Tab> to change these values. 34 | ni.com | NI cRIO-9038 User Manual...

  • Page 35: Advanced Setup Menu

    DC power is lost. Valid values are Stay Off and Turn On. The default value is Turn On. When set to Stay Off, the cRIO-9038 returns to the soft off power state after AC power is restored. When set to Turn On, the cRIO-9038 powers on when DC power is restored.

  • Page 36: Boot Setup Menu

    Priorities menu. The system must be restarted for this setting to take effect. The default value is Disabled. • Boot Option Priorities—These settings specify the order in which the BIOS checks for bootable devices, including the local hard disk drive, removable devices such as USB 36 | ni.com | NI cRIO-9038 User Manual...
  • Page 37 Floppy Drive BBS Priorities Submenu The Floppy Drive BBS Priorities submenu specifies the boot priority of floppy drive devices. NI cRIO-9038 User Manual | © National Instruments | 37...

  • Page 38: Save & Exit Menu

    The Save & Exit setup menu includes the following settings: • Save Changes and Reset—This setup utility then exits and reboots the cRIO-9038. Any changes made to BIOS settings are stored in NVRAM. The <F10> key also selects this option.

  • Page 39: Worldwide Support And Services

    United States, visit the Worldwide Offices section of ni.com/ niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI cRIO-9038 User Manual | © National Instruments | 39...
  • Page 40 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
